DCANx_RX
2
DCANx_TX
AM3359, AM3358, AM3357, AM3356, AM3354, AM3352
www.ti.com SPRS717H –OCTOBER 2011–REVISED MAY 2015
7.4 Controller Area Network (CAN)
For more information, see the Controller Area Network (CAN) section of the AM335x Sitara Processors
Technical Reference Manual (SPRUH73).
7.4.1 DCAN Electrical Data and Timing
Table 7-1. Timing Requirements for DCANx Receive
(see Figure 7-1)
NO. MIN MAX UNIT
ƒ
baud(baud)
Maximum programmable baud rate 1 Mbps
1 t
w(RX)
Pulse duration, receive data bit H – 2
(1)
H + 2
(1)
ns
(1) H = Period of baud rate, 1 / programmed baud rate
Table 7-2. Switching Characteristics for DCANx Transmit
(see Figure 7-1)
NO. PARAMETER MIN MAX UNIT
ƒ
baud(baud)
Maximum programmable baud rate 1 Mbps
2 t
w(TX)
Pulse duration, transmit data bit H – 2
(1)
H + 2
(1)
ns
(1) H = Period of baud rate, 1 / programmed baud rate

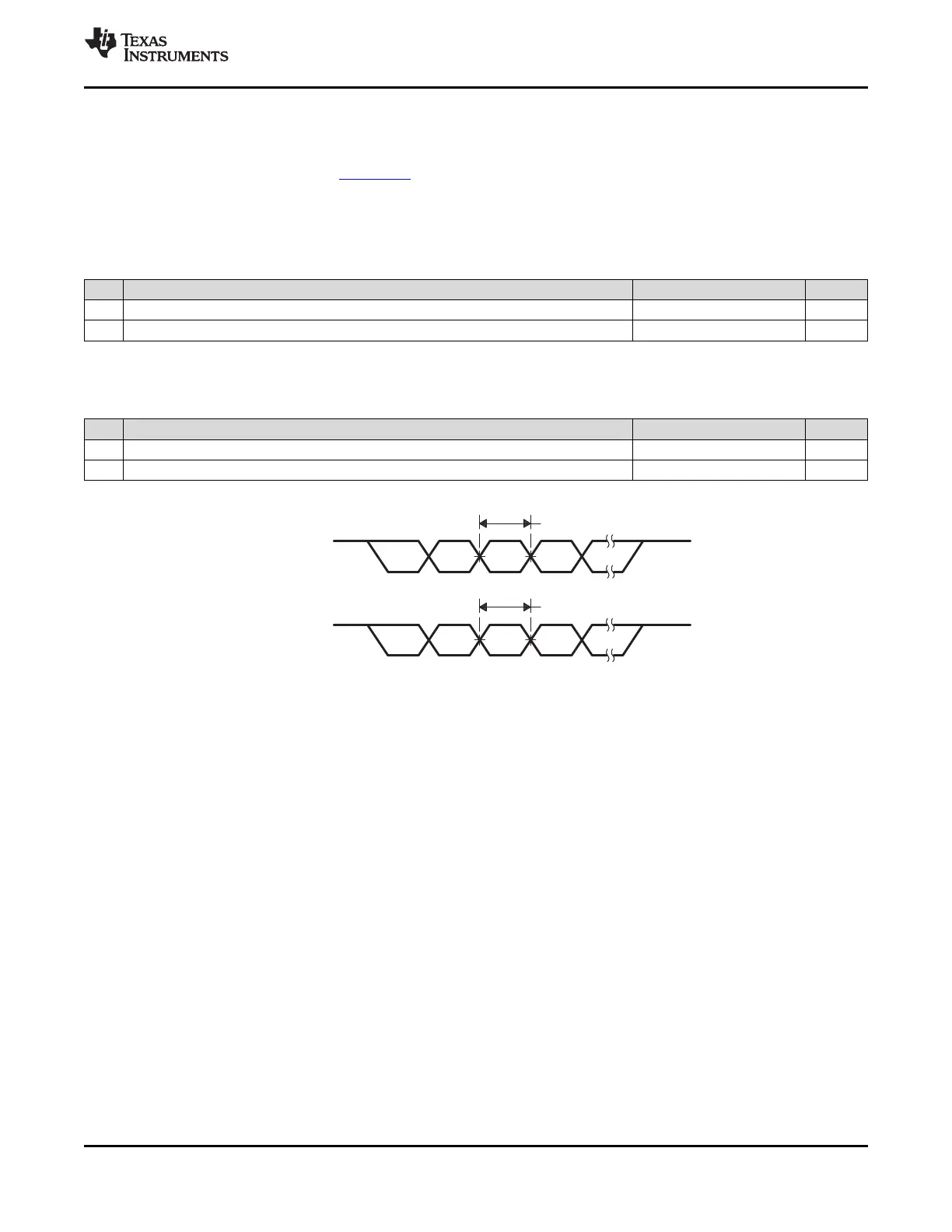

Figure 7-1. DCANx Timings
Copyright © 2011–2015, Texas Instruments Incorporated Peripheral Information and Timings 117
Submit Documentation Feedback
Product Folder Links: AM3359 AM3358 AM3357 AM3356 AM3354 AM3352
