TCLKIN
TIMER[x]
1
2
3
AM3359, AM3358, AM3357, AM3356, AM3354, AM3352
SPRS717H –OCTOBER 2011–REVISED MAY 2015 www.ti.com
7.5 DMTimer
7.5.1 DMTimer Electrical Data and Timing
Table 7-3. Timing Requirements for DMTimer [1-7]
(see Figure 7-2)
NO. MIN MAX UNIT
1 t
c(TCLKIN)
Cycle time, TCLKIN 4P + 1
(1)
ns
(1) P = Period of PICLKOCP (interface clock).
Table 7-4. Switching Characteristics for DMTimer [4-7]
(see Figure 7-2)
NO. PARAMETER MIN MAX UNIT
2 t
w(TIMERxH)
Pulse duration, high 4P – 3
(1)
ns
3 t
w(TIMERxL)
Pulse duration, low 4P – 3
(1)
ns
(1) P = Period of PICLKTIMER (functional clock).

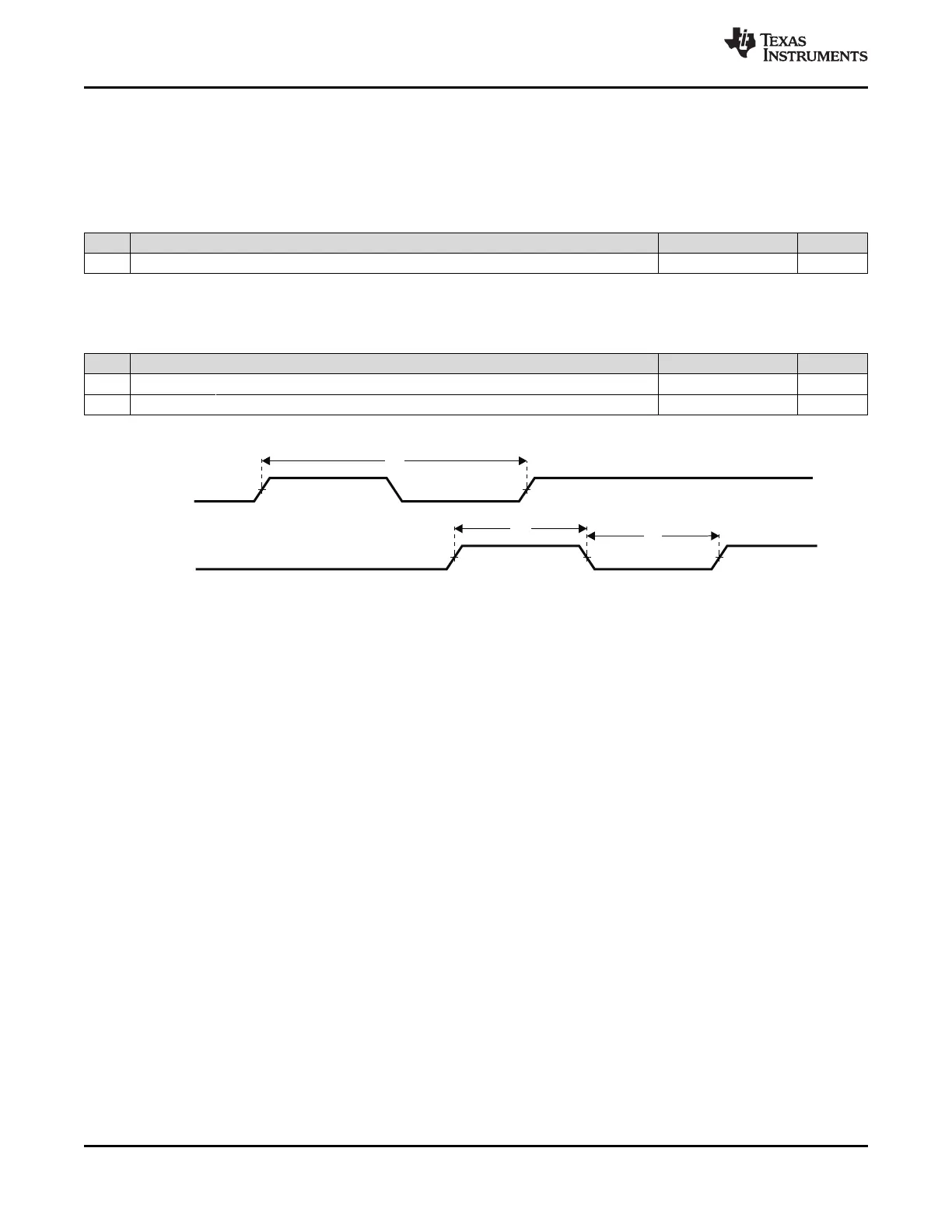

Figure 7-2. Timer Timing
118 Peripheral Information and Timings Copyright © 2011–2015, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: AM3359 AM3358 AM3357 AM3356 AM3354 AM3352
