Texas Instruments AM335x Sitara - Page 142

gpmc_fclk
gpmc_clk
gpmc_csn[x]
gpmc_a[10:1]
gpmc_be0n_cle
gpmc_be1n
gpmc_advn_ale
gpmc_wen
gpmc_ad[15:0]
gpmc_wait[x]
Valid Address
Data OUT
FA0
FA1
FA10
FA3
FA25
FA29
FA9
FA12
FA27
FA0
FA10
AM3359, AM3358, AM3357, AM3356, AM3354, AM3352
SPRS717H –OCTOBER 2011–REVISED MAY 2015 www.ti.com
A. In gpmc_csn[x], x is equal to 0, 1, 2, 3, 4, or 5. In gpmc_wait[x], x is equal to 0 or 1.

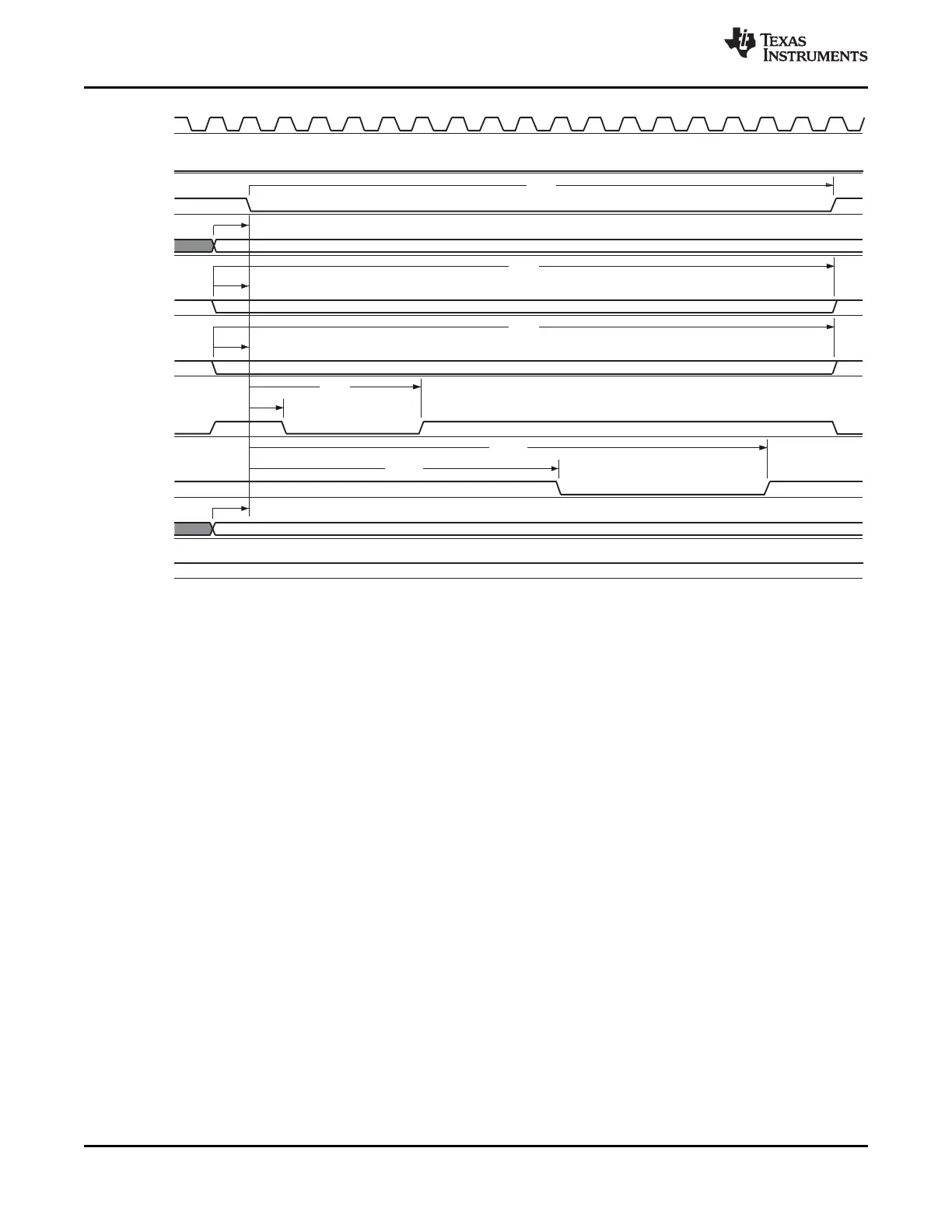

Figure 7-25. GPMC and NOR Flash —Asynchronous Write—Single Word
