BP-ADS7128 BoosterPack™ Plug-In Module

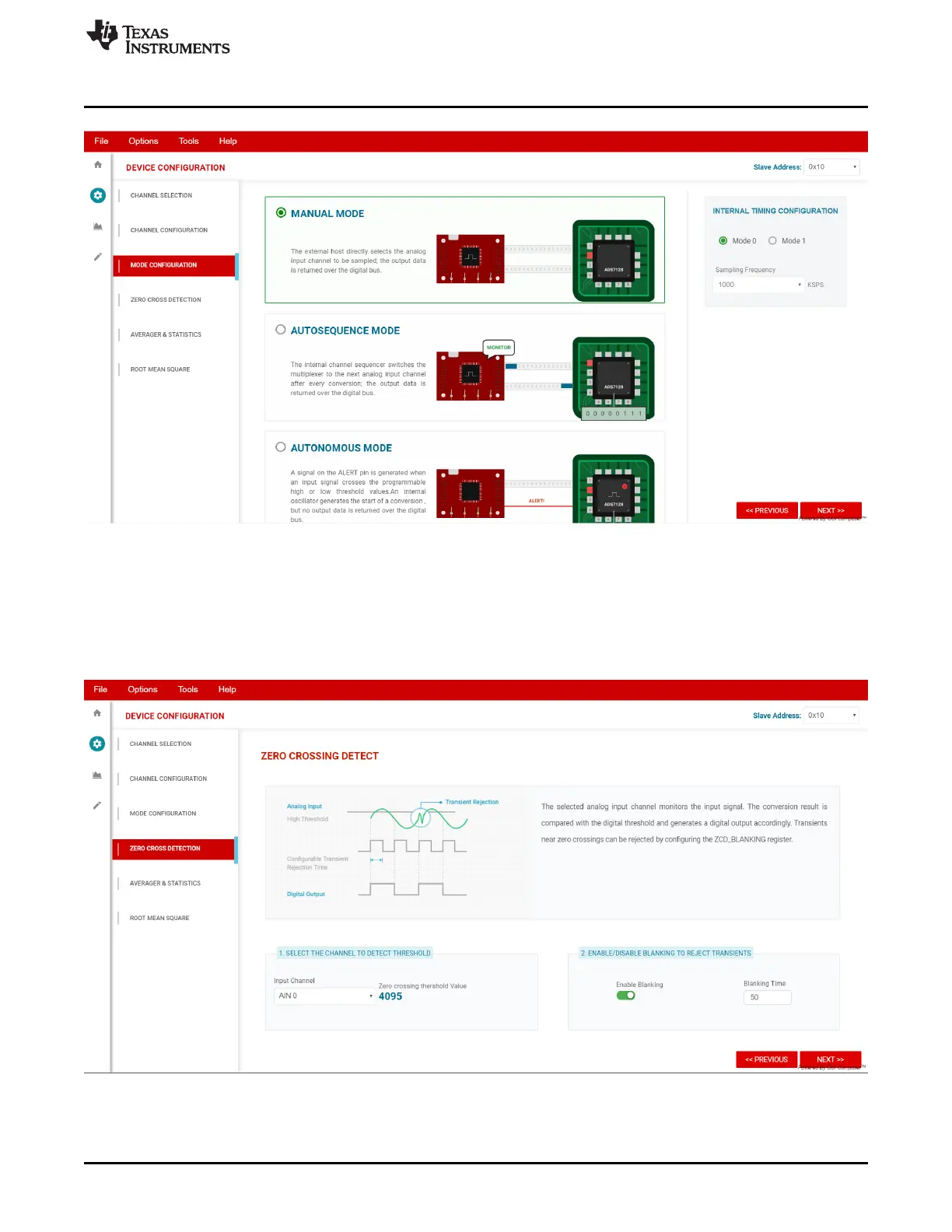

Figure 14. Sampling Mode Configuration
3.3.2.2.4 Zero-Cross Detection (ZCD)
The zero-cross detection tab, as shown in Figure 15, provides a timing diagram demonstrating the ZCD
functionality and the blanking time transients of the input signal. only one input channel can be selected to
monitor. The programmable blanking time can be disabled or enabled.
Figure 15. Zero-Cross Detection Page
