BP-ADS7128EVM Overview
www.ti.com
4
SBAU331–May 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
BP-ADS7128 BoosterPack™ Plug-In Module
2 BP-ADS7128EVM Overview
This section describes various onboard components that are used to interface the analog input, general-
purpose inputs/outputs (GPIOs), digital interface, and provide power supply to the BP-ADS7128. Figure 2
shows a BP-ADS7128 overview.

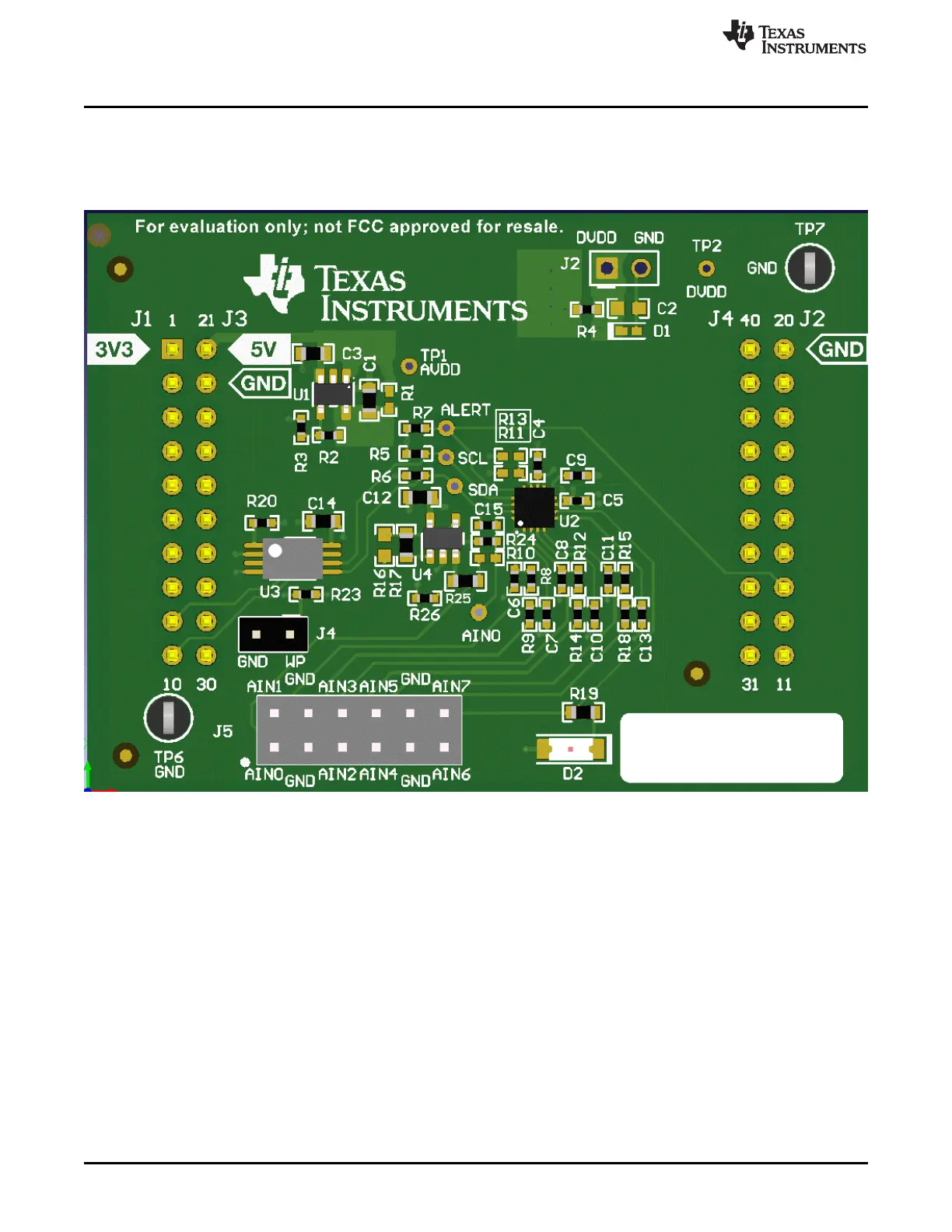

Figure 2. BP-ADS7128 Top Level Overview
