BP-ADS7128 EVM Initial Setup
www.ti.com
18
SBAU331May 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
BP-ADS7128 BoosterPack™ Plug-In Module
3.3.3 Data Capture Tab
The data capture tab displays the conversion results of the sampled data of the enabled channels. As
shown in Figure 18, clicking the red Capture button commences a sample data set. This tab features two
pages:
Analog Inputs: The sample and conversion results for each enabled analog input is displayed in this
page
Digital I/O: The enabled digital channels, input or output, are displayed in this page
See Section 3.3.5 for more information on capturing data.

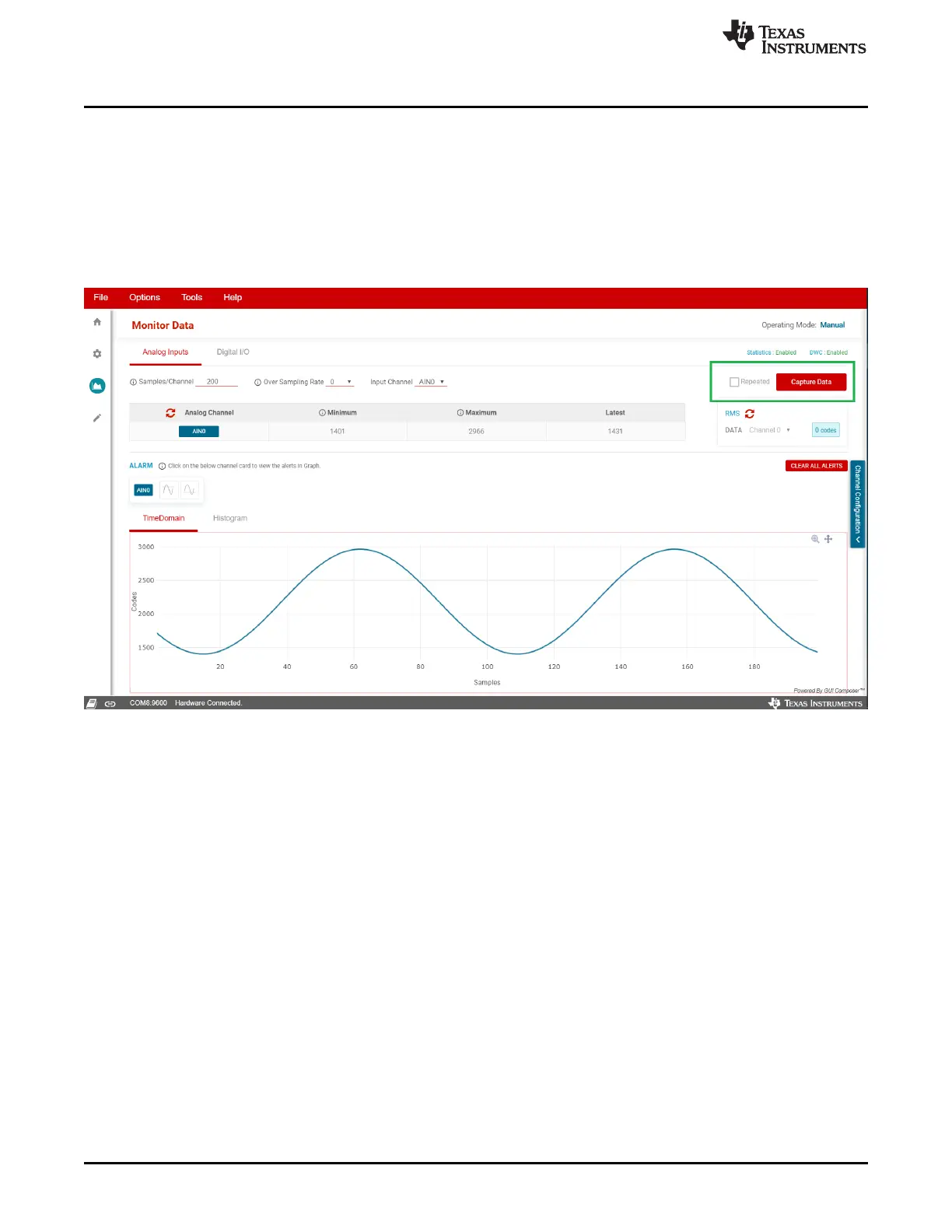

Figure 18. ADS7128 Data Capture Tab
