BP-ADS7128 EVM Initial Setup
www.ti.com
20
SBAU331–May 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
BP-ADS7128 BoosterPack™ Plug-In Module
3.3.5 Data Capture Features
This section describes the features available in the data capture tab of the GUI. This page auto updates to
reflect the inputs in Section 3.3.2.2 based on the channel-specific configuration. The data capture tab
displays both analog enable channels, under the analog inputs page, and the digital input and output
enabled channels in the digital I/O page.
3.3.5.1 Analog Inputs Page
The analog input page provides an interface to the conversion results for analog input channels. Data are
captured, as shown in Figure 20, by clicking on the Capture Data button. The analog inputs page also
displays:
• Number of samples per the enabled analog input channels
• A drop-down option for increasing the oversampling rate
• A drop-down option for selecting input channel display
• Displays the minimum and maximum sample code
• When enabled, the RMS data of the channel selected in the drop-down option
• Alarm trigger and clear alarm option
The data capture page provides tabs to display the conversion results of the analog inputs and, within the
analog input display tab, the conversion results can be displayed in either the time domain graph or the
histogram graph.

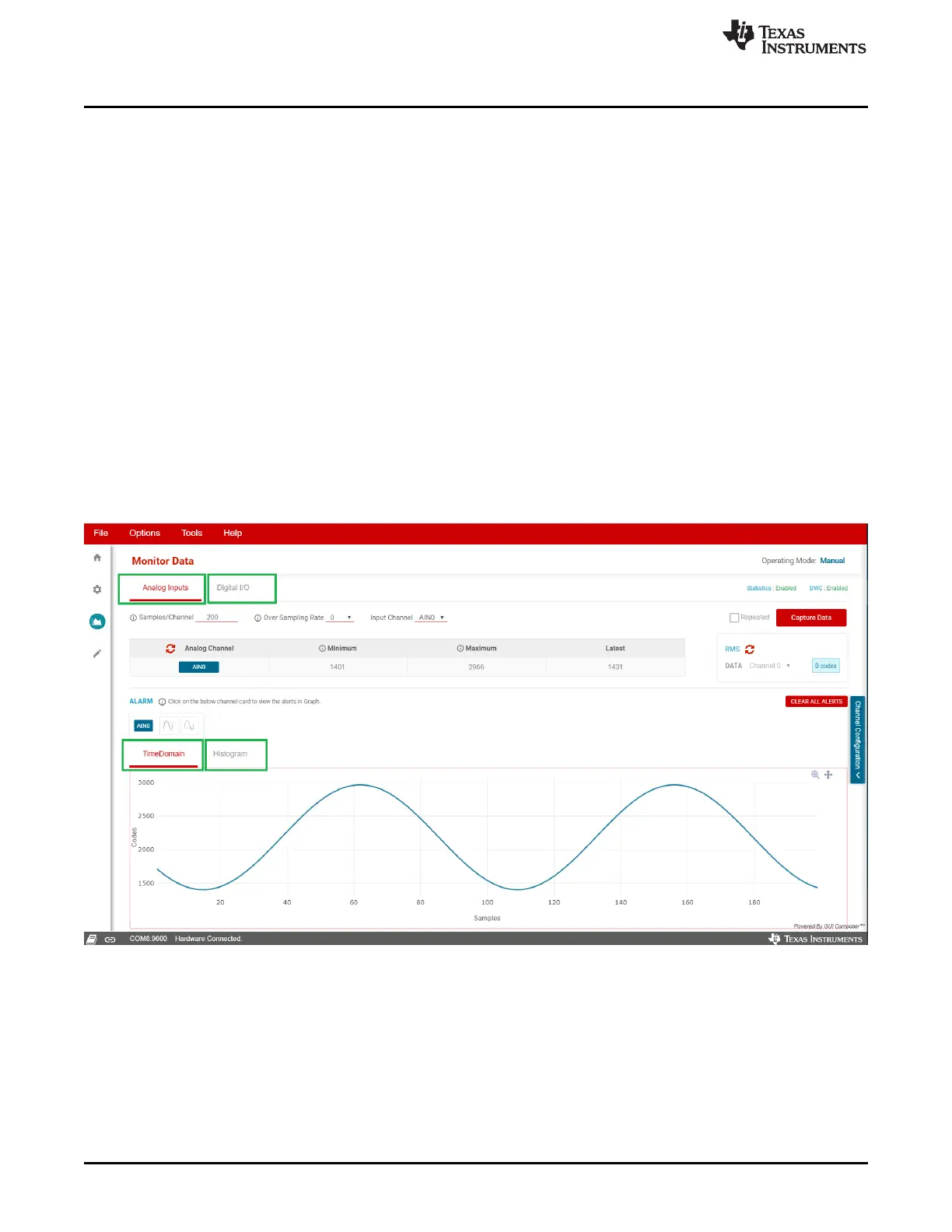

Figure 20. Data Capture Conversion Results
