MSP430FR2355 LaunchPad™ Development Kit (MSP
‑
EXP430FR2355)

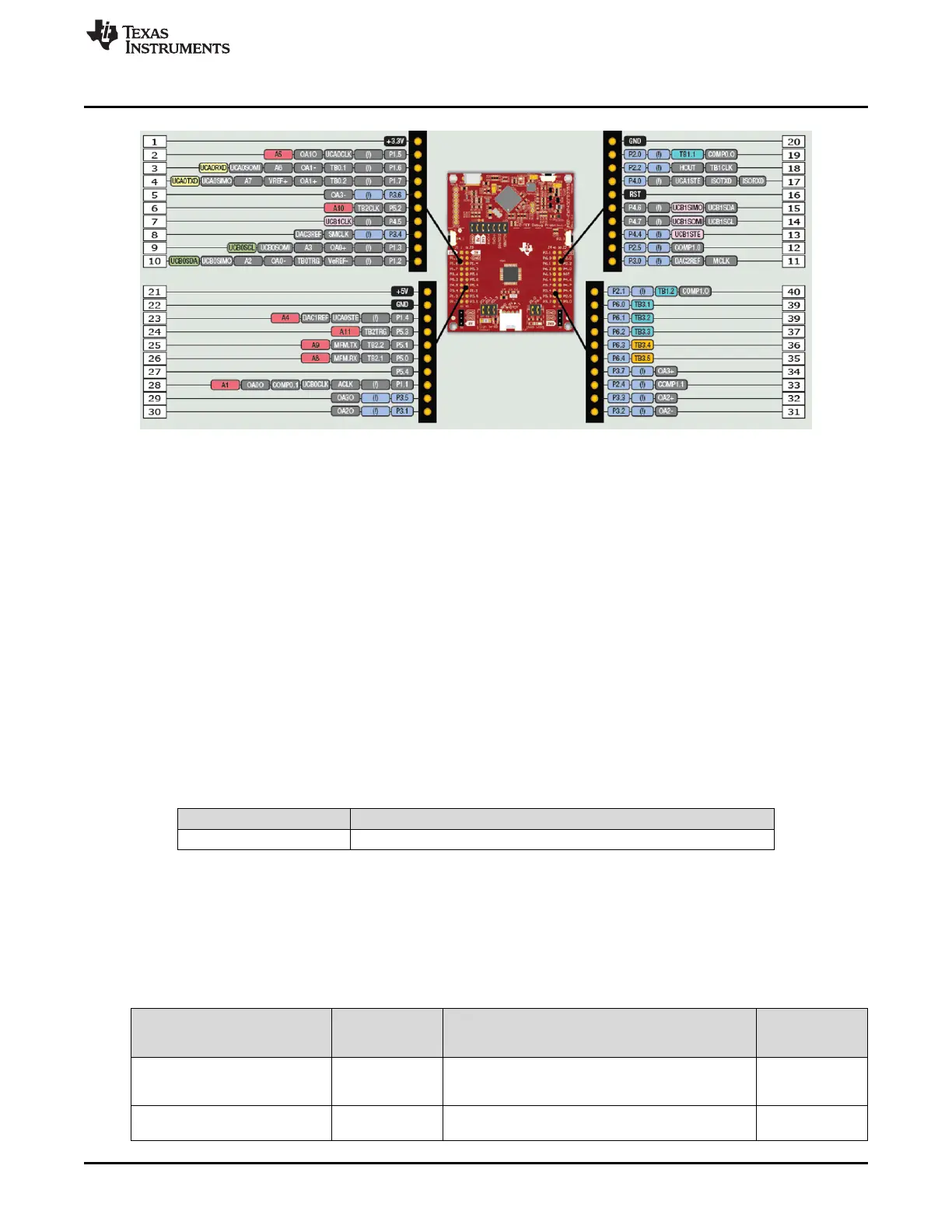

Figure 10. LaunchPad Development Kit to BoosterPack Plug-in Module Connector Pinout
2.8 Design Files
2.8.1 Hardware
Schematics can be found in Section 6. All design files including schematics, layout, bill of materials
(BOM), Gerber files, and documentation are available on the MSP-EXP430FR2355 Design File download
page.
2.8.2 Software
All design files including TI-TXT object-code firmware images, software example projects, and
documentation are available on the MSP-EXP430FR2355 Design File download page.
2.9 Hardware Change Log
Table 3 lists the hardware revision history.
Table 3. Hardware Change Log
PCB Revision Description
Rev A Initial release
3 Software Examples
Two software examples are included with the MSP430FR2355 LaunchPad development kit (see Table 4),
which can be found in the MSP430FR2355 LaunchPad development kit download page and are also
available inside MSPWare.
Table 4. Software Examples
Demo Name
BoosterPack
Plug-in Module
Required
Description More Details
OutofBox_MSP-EXP430FR2355 None
The out-of-box demo preprogrammed on the
LaunchPad development kit from the factory.
Demonstrates features of MSP430FR2355 device
Section 3.1
BlinkLED_MSP-EXP430FR2355 None
Blinks an LED on the LaunchPad development kit at a
fixed interval
Section 3.2
