Texas Instruments TMS320F28069

SOC0
ADCCLK
ADCRESULT 0
S/H Window Pulse to Core
ADCCTL 1.INTPULSEPOS
ADCSOCFLG 1.SOC0
ADCINTFLG.ADCINTx
SOC1 SOC2
9 15 22 24 3720
Result 0 Latched
ADCSOCFLG 1.SOC1
ADCSOCFLG 1.SOC2
ADCRESULT 1
EOC0 Pulse
EOC1 Pulse
Conversion 0
13 ADC Clocks
Minimum
7 ADCCLKs
6
ADCCLKs
Conversion 1
13 ADC Clocks
Minimum
7 ADCCLKs
2 ADCCLKs
1 ADCCLK
Analog Input
SOC1 Sample
Window
SOC0 Sample
Window
SOC2 Sample
Window
89
TMS320F28069 , TMS320F28068 , TMS320F28067 , TMS320F28066
TMS320F28065, TMS320F28064, TMS320F28063, TMS320F28062
www.ti.com SPRS698F –NOVEMBER 2010–REVISED MARCH 2016
Submit Documentation Feedback
Product Folder Links: TMS320F28069 TMS320F28068 TMS320F28067 TMS320F28066 TMS320F28065
TMS320F28064 TMS320F28063 TMS320F28062
Detailed DescriptionCopyright © 2010–2016, Texas Instruments Incorporated
6.9.2.1.3.3 ADC Sequential and Simultaneous Timings

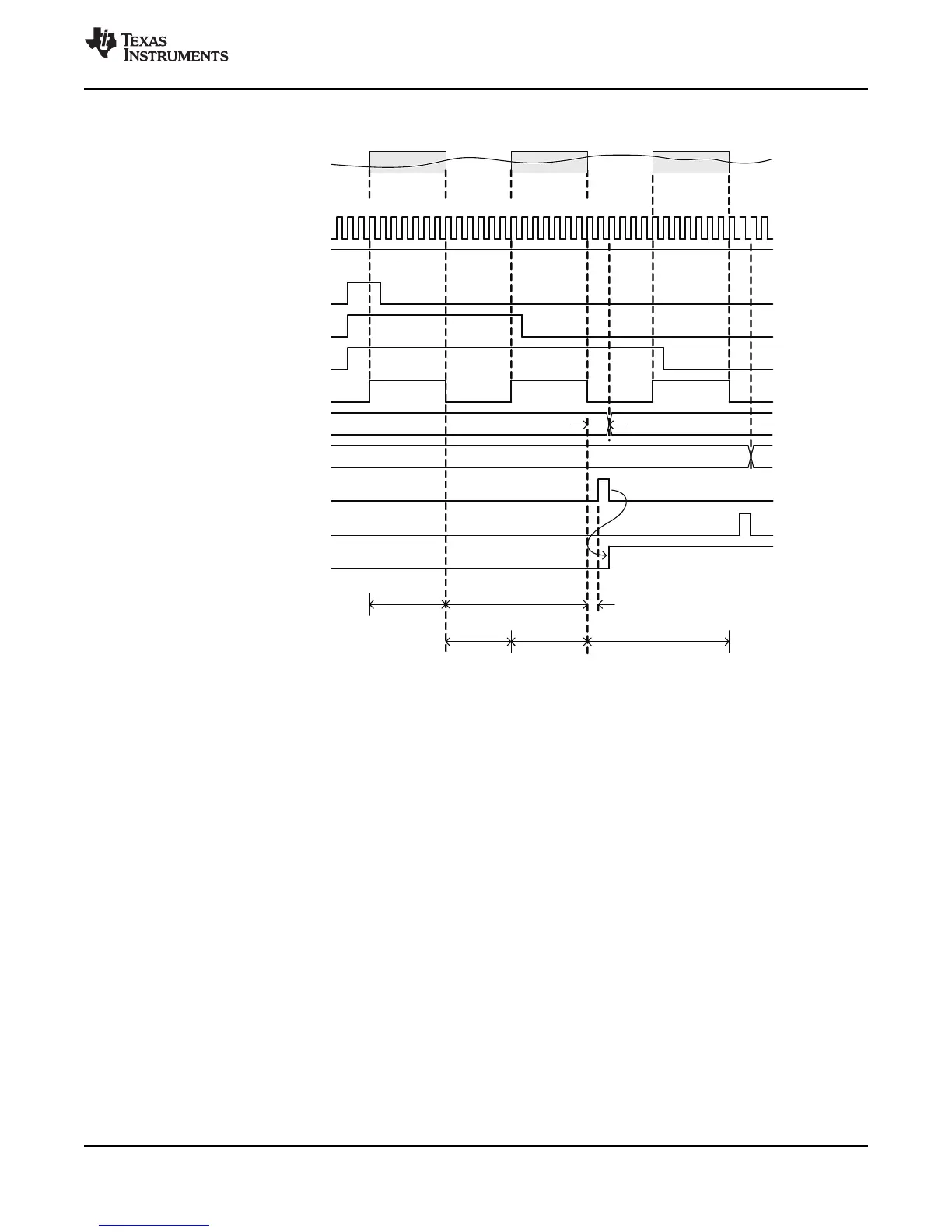

Figure 6-25. Timing Example for Sequential Mode / Late Interrupt Pulse
