Premier 412/816/832 Installation Manual Installation
INS159 11
Keypad Speaker Output (LCDL/LCDLP Only)
The Premier LCDL and LCDLP keypads has an output that
can be used for driving up to one 8Ω or two 16Ω
loudspeakers (see page 17 for wiring details).
!
The speaker volume is also fully adjustable (see page
34 for details).
Adjustable Backlighting
To adjust the keypad backlighting press the YES key, then
with the YES key still pressed use + to increase or
decrease the backlighting until the required brightness is
achieved, then release both keys.
!
The backlight can only be adjusted when the keypad
is not in a menu.
Keypad Lid Tamper
The lid tamper of each keypad can be disabled if required
using the relevant keypad option in the Keypad Options 4
menu (see page 41 for details).
Remote Zone Expander Module
The Premier 8X Remote Zone Expander provides 8 additional
detection zones, two programmable outputs and a speaker
driver output.

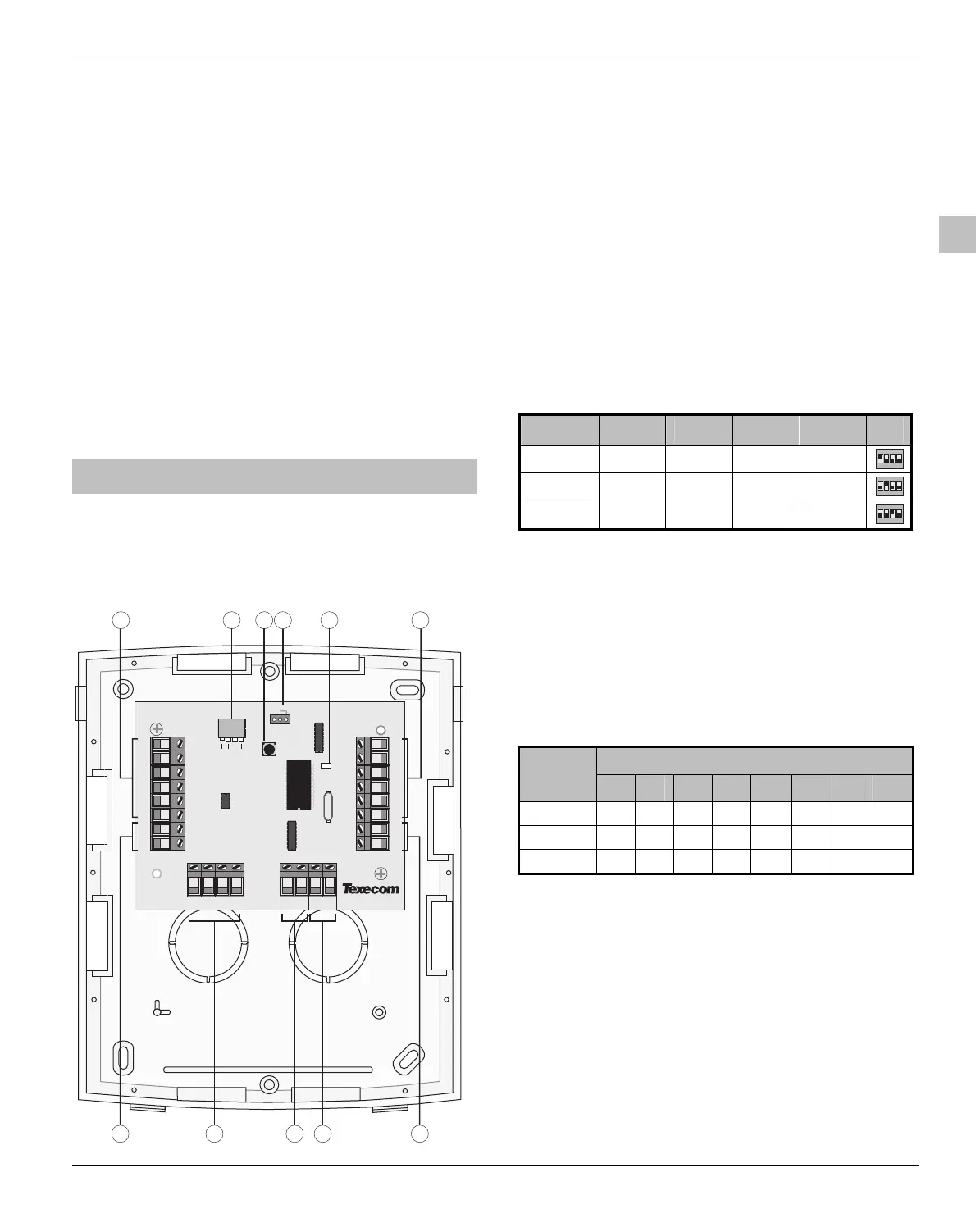

Remote Expander Layout
+
-
T R
62
-
+
Z2
COM
Z1
1
Z4
COM
Z3
-
+
Z6
COM
Z5
Z8
COM
Z7
+
-
OP1
SPK OP2
Tamp Disable
2 431
1234
2
4
53 3
78
9
+
$
Data Bus Connections
%
Auxiliary 12V
&
Programmable Zone Inputs
'
Programmable Outputs 1 and 2
(
Speaker Driver Output
)
Power LED
*
Disable Tamper Jumper
+
Tamper Switch
,
Address DIL Switch
Wiring the Zone Expander
The Remote Zone Expansion Module is connected to the
data bus terminals located at the bottom left hand side of
the PCB. (See pages 7 to 9).
Remote Expander Address
Each remote expander must be assigned a different address
using the Address DIL switch (
,
). The table below shows
how to set the address:
Address DIL 1 DIL 2 DIL 3 DIL 4
1 On/Off Off Off Off
2431
ON
2 Off On Off Off
2431
ON
3 Off Off On Off
2431
ON
!
Only one remote expander can be connected to the
Premier 412 & 816 control panels (Address = 1).
Remote Expander Zones
The Premier 8X Remote Expander has eight programmable
zone inputs (see page 13 for wiring details). Each zone is
also fully programmable (see page 24 for programming
details).
The table below shows the system zone allocation when one
or more modules are installed:
Remote Expander Zone Inputs
Address
Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8
1 09 10 11 12 13 14 15 16
2 17 18 19 20 21 22 23 24
3 25 26 27 28 29 30 31 32
!
When the system is expanded above 8 zones, it
MUST be fitted with a suitable remote keypad. For
systems up to 16 zones a Premier RKP16 or Premier
RKP16 Plus should be installed. For systems above 16
zones a LCD remote keypad should be installed.
The system will only support one type of expansion
device for zones 09 - 16, i.e., you can fit either a
Premier 8X Remote Expander (Address = 1) or a
Premier 8XE Local Expander, you cannot fit both.
