Premier 412/816/832 Installation Manual Installation
INS159 15

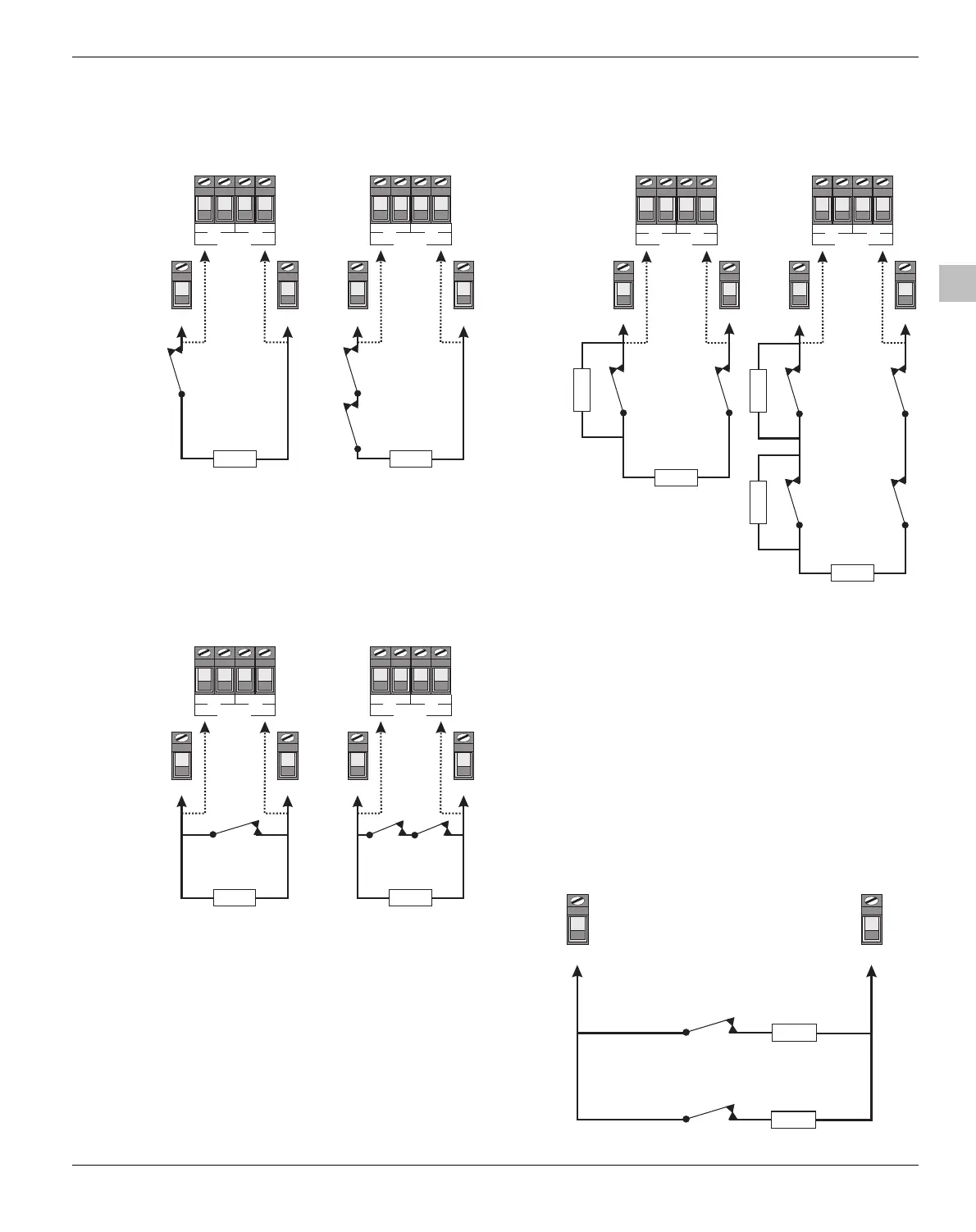

Single EOL - N/C
Use this wiring configuration when connecting just normally
closed detection devices to the zone. Ensure that the zone
is programmed for Single EOL - N/C operation (see page
26). The zone must be wired as follows:
Zx
Com
Normally
Closed Contact
E.O.L
3.3 K
2 Normally
Closed Contacts
Zx
Com
E.O.L
3.3 K
Premier LCD/LCDL
Keypads
Control Panel &
Expanders
AT
Zone x
AT
Zone x
Single EOL - O/C Tamper
Use this wiring configuration when connecting just normally
closed detection devices to a zone and when a tamper
response is required in the event of an open circuit. Ensure
that the zone is programmed for Single EOL - O/C Tamper
operation (see page 26). The zone must be wired as follows:
2 Normally
Closed Contacts
Zx
Com
Zx
Com
Normally
Closed Contact
E.O.L
3.3 K
E.O.L
3.3 K
Premier LCD/LCDL
Keypads
Control Panel &
Expanders
AT
Zone x
AT
Zone x
Single EOL – S/C Tamper
Use this wiring configuration when connecting just normally
closed detection devices to the zone and when a tamper
response is required in the event of a short circuit. Ensure
that the zone is programmed for Single EOL - S/C Tamper
operation (see page 26). Wire Single EOL - S/C Tamper
zones as shown for Single EOL - N/C.
Double EOL
Use this wiring configuration when connecting detection
devices to a zone that requires alarm/tamper monitoring.
Ensure that the zone is programmed for Double EOL
operation (see page 26). The zone must be wired as follows:
Zx
Com
Zx
Com
1 Detection Device
2 Detection Devices
Alarm
Alarm
Tamper
Tamper
E.O.L
3.3 K
E.O.L
3.3 K
3.3 K
3.3 K
Alarm
3.3 K
Tamper
Premier LCD/LCDL
Keypads
Control Panel &
Expanders
AT
Zone x
AT
Zone x
Zone Doubling
This wiring option allows you to wire two detection devices
into one set of zone connections. However, the system will
treat each device, as if it were connected to a separate zone,
i.e., each device is fully programmable.
!
When using this configuration, the system must be
fitted with the appropriate keypad, Premier RKP16 on
the Premier 816 and the Premier RKP8 on the Premier
412.
When a zone is configured for “Zone Doubled” it must be
wired as follows:
Any Z
Terminal (Panel)
Zx
Any Com
Terminal
Com
Normally Closed Contact
Zone A
4.7 K
3.3 K
Zone B
Normally Closed Contact
To Next Page
