Texecom Premier 412 Premier 816 Premier 832

Installation Premier 412/816/832 Installation Manual
14 INS159

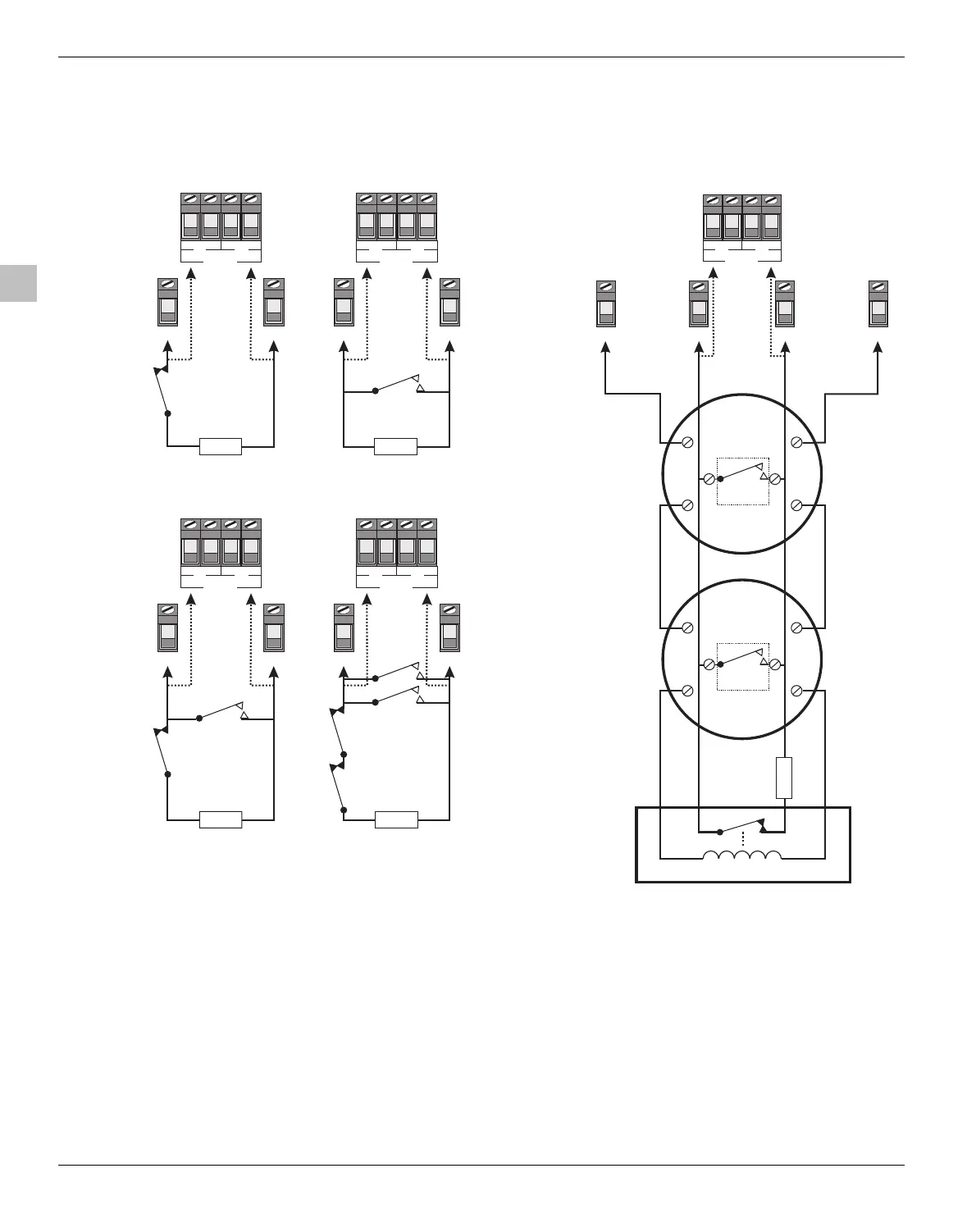

Single EOL - N/C & N/O (Burglary)
Use this wiring configuration when connecting a mixture of
normally closed and normally open detection devices to the
zone. Ensure that the zone is programmed for Single EOL -
N/C & N/O operation (see page 26). The zone must be wired
as follows:
Normally
Open Contact
Zx
Com
Zx
Com
Normally
Closed Contact
E.O.L
3.3 K
E.O.L
3.3 K
2 Normally
Open and 2 Normally
Closed Contacts
Zx
Com
Zx
Com
1 Normally
Closed and 1
Normally Open
Contact
E.O.L
3.3 K
E.O.L
3.3 K
Premier LCD/LCDL
Keypads
Control Panel &
Expanders
AT
Zone x
AT
Zone x
Premier LCD/LCDL
Keypads
Control Panel &
Expanders
AT
Zone x
AT
Zone x
Single EOL - N/O (Fire)
Use this wiring configuration when connecting a 4-wire
smoke detector to the zone. Ensure that the zone is
programmed for Single EOL - N/O (Fire) operation (see
page 26). The zone must be wired as follows:
Program as
Sensor Reset
O/P1or2
Zx
Power Supervision Relay
e.g ESL #204A or equivalent
4-Wire
Smoke
Detector
4-Wire
Smoke
Detector
Com
Aux 12V +
E.O.L
3.3 K
In In
Out Out
Alarm
(+)
(+)
(-)
(-)
In In
Out Out
Alarm
(+)
(+)
(-)
(-)
Premier LCD/LCDL
Keypads
Control Panel &
Expanders
AT
Zone x
