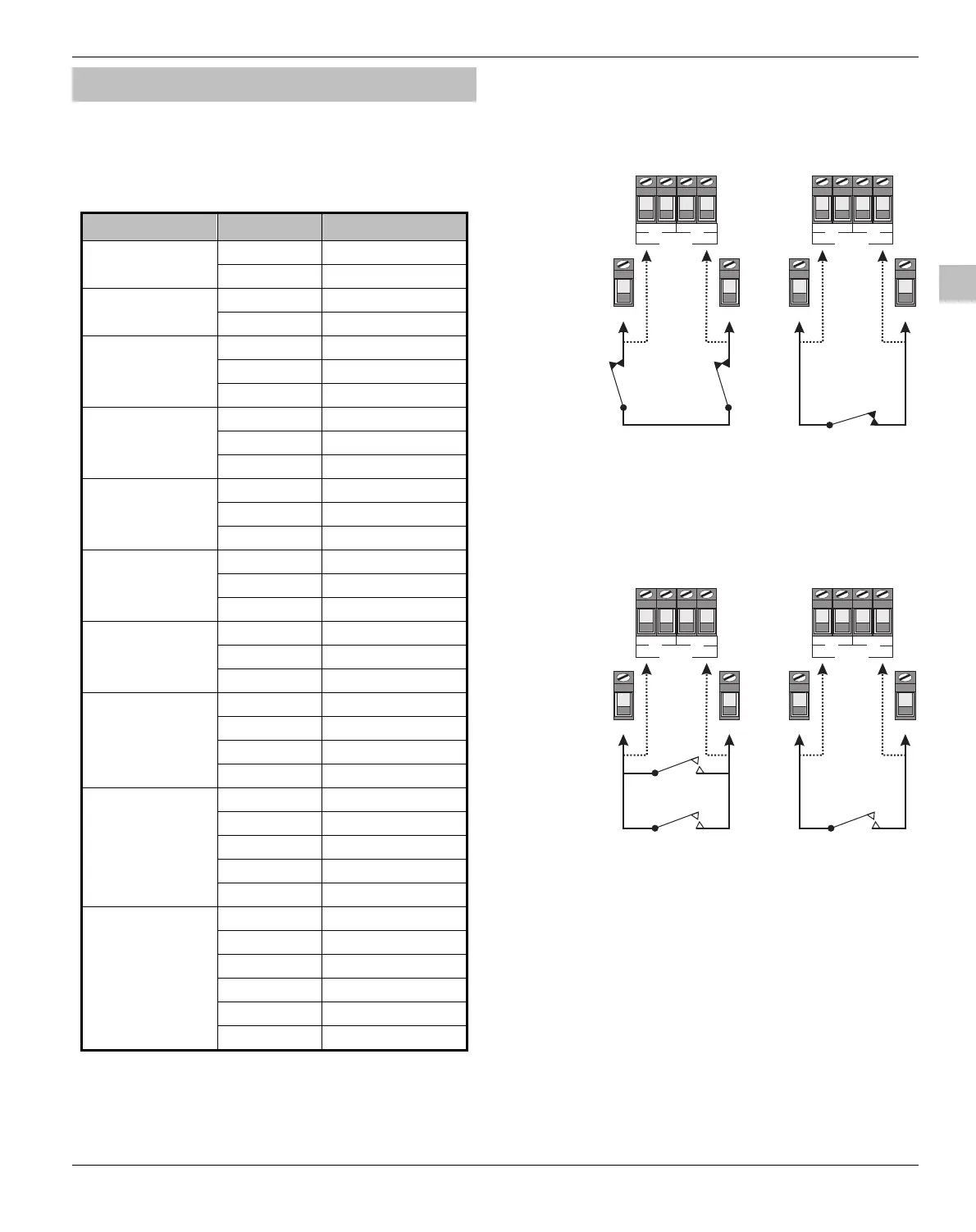

Zone Connections
Each zone on the system is fully programmable to allow for
maximum flexibility (see page 24 for Zone Programming
details). The program options for a zone will also determine
how the zone may be wired. The following wiring options are
available:
Type Zone Status Response
Shorted Secure
-
Normally Closed
> 20K Active
Shorted Active
$
Normally Open
> 20K Secure
0 - 1K Active
1.1K - 4.7K Secure
%
Single EOL - N/C
& N/O (Burglary)
> 4.8K Active
0 - 1K Active
1.1K - 4.7K Secure
&
Single EOL - N/O
(Fire)
> 4.8K Trouble
0 - 1K Trouble
1.1K - 4.7K Secure
'
Single EOL - N/C
> 4.8K Active
0 - 1K Secure
1.1K - 4.7K Active
(
Single EOL - O/C
Tamper
> 4.8K Tamper
0 - 1K Tamper
1.1K - 4.7K Secure
)
Single EOL - S/C
Tamper
> 4.8K Active
0 - 1K* Tamper
1.1K - 4.4K Secure
4.5K - 20K Active
*
Double EOL
> 20K Tamper
Shorted Zones A & B Trouble
1.0K - 2.2K Zones A & B Secure
4.8K - 6.0K Zone A Violated
2.3K - 4.7K Zone B Violated
+
Zone Doubled
Open Zones A & B Violated
0 - 1K Tamper
1.1K - 4.0K Secure
4.1K - 5.6K Trouble (Fault)
5.7K - 8.0K Active
8.1K - 20K Trouble (Masked)
,
Triple EOL
> 20K Tamper
* This value may vary depending on the country variant.
Normally Closed
Use this wiring configuration when connecting normally
closed detection devices to the zone. Ensure that the zone
is programmed for Normally Closed operation (see page
26). The zone must be wired as follows:
2 Normally
Closed Contacts
1 Normally
Closed Contact
Premier LCD/LCDL
Keypads
Zx
Com
Zx
Com
AT
Zone x
Control Panel &
Expanders
AT
Zone x
Normally Open
Use this wiring configuration when connecting normally
open detection devices to the zone. Ensure that the zone is
programmed for Normally Open operation (see page 26).
The zone must be wired as follows:
2 Normally
Open Contacts
1 Normally
Open Contact
Zx
Com
Zx
Com
Premier LCD/LCDL
Keypads
AT
Zone x
Control Panel &
Expanders
AT
Zone x
