Premier 412/816/832 Installation Manual Installation
INS159 7

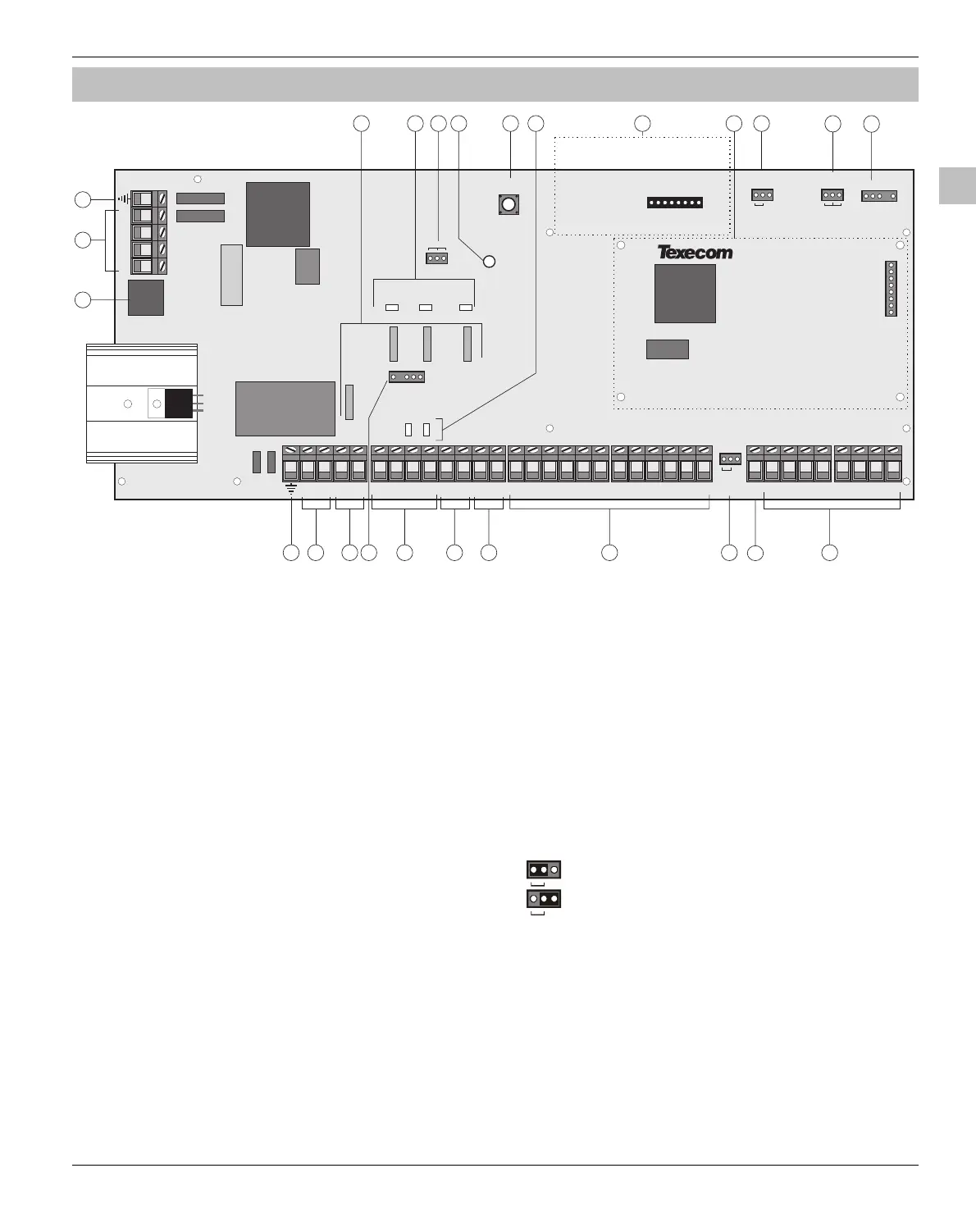

Control Panel PCB Layout
Com 1
2-Wire
Smoke Det.
Enable
Load
Defaults
Box
Tamper
Panel
Outputs
1
Siren
2
Strb
Input
Aux
34 5678
A.C.
Z1 Z3
COM
COM
Z2 Z4
+Batt-
+
+
+
TR
Siren/Spk
-
-
-
Aux12
Data
T R T1R1
2 3 54 6 7 10
9
8
11
12
1516 1317
19
20
Z5 Z7
COM
COM
Z6 Z8
Tamper
Disable
1
Batt
14
1
Kick Start
Eng Keypad
Tx Rx
21
24
F4 Fault
Network
F3 Fault
Siren
F2 Fault
Aux
F2F3F4
F1
2318 22
SK1
1: Earth Ground Connection
Earth ground. Connect to earth or an earth rod.
Failure to fit an earth cable may prevent proper
operation of the system and will invalidate the
Texecom warranty and product approvals.
2: AC Input
Connect to a 16.5V transformer.
Do NOT connect the mains supply to the AC
input terminals.
3: Battery Connections
A 12V rechargeable battery must be connected to these two
terminals in order to provide continuous system operation in
the event of mains failure. The battery output is protected by
fuse F1 (1.6 Amp).
4: Data Bus Connections
The data bus terminals provide connections to the remote
keypads and Premier 8X Remote Zone Expander. The + and
– terminals provide power whilst the T and R terminals are
transmit and receive data.
5: Siren/Spk output
These terminals are used for driving speakers, sirens or
bells. The output can be programmed for speaker driver or
for Siren/bell driver (see page 35). This output is supervised,
if no warning devices are fitted, either fit a 1KΩ resistor
between these two terminals or disable the siren
supervision, see page 36.
6: Auxiliary 12V Power
These terminals provide auxiliary power for devices that
require 12V power. The auxiliary output is protected by fuse
F2 (1 Amp).
7: Zone Inputs 1 to 8
These terminals provide the connections to the zone inputs.
The Premier 816 and Premier 832 have 8 zone inputs,
whereas the Premier 412 has only 4 zone inputs. There are
several ways to wire a zone (see page 12). Each zone is fully
programmable, see page 24 for information on
programming zones.
8: Two-Wire Smoke Detector Enable
Set this link as shown when connecting 2-wire smoke
detectors to Panel Output 1.
Output 1 is enabled for 2-wire smoke detectors
Output 1 is normal
9: Aux Input
This is a programmable input, it can be used for monitoring
auxiliary tamper devices etc, see page 36 for programming
details.
10: Panel Outputs 1 to 8
These are programmable outputs. Panel outputs 1 and 2 are
high current (1 Amp) supervised outputs. If panel outputs 1
or 2 are not used, either fit a 1KΩ resistor between the
unused output and Auxiliary 12V + or disable the output
supervision, see page 36. Panel outputs 3 to 8 are low
current (100mA) outputs.
"#
"#
