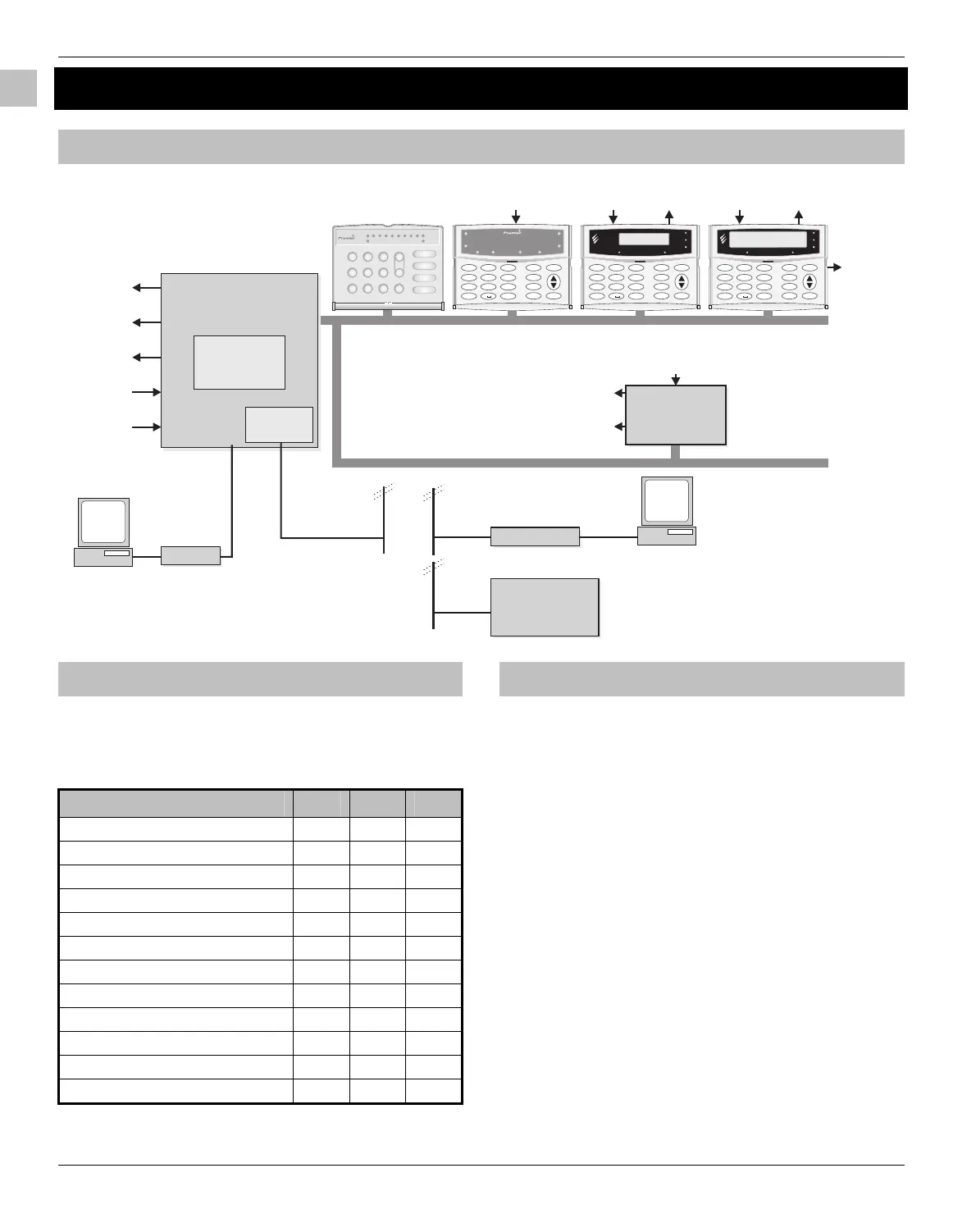

1. System Overview
System Architecture
Premier 412/816/832
Onboard
Communicator/
modem
EOL Zone Inputs
= 4Premier 412
Premier 816 = 8
Premier 832 = 8
Data Bus
6 Programmable
100mA Outputs
2 Programmable
1A Outputs
Siren Driver
Aux Input
6 Remote Keypads (max)
Alarm Receiving
Centre
Modem
PC and Modem for
Remote Upload/Download
PC-Com
PC and for
Local Upload/Download
PC-Com
Premier 8XE
Local Zone Expander
Premier Bell Module
OR
Premier RKP4/8/16
Remote Keypad
456
123
7890
Armed
Zones
87654321
Ready
Alarm
Service
ARM
STAY
DISARM
BY
PASS
MENU
AREA
Com1
2 EOL Zones
4
ghi
2
abc
3
def
7
pqrs
Area
5
jkl
8
tuv
0
6
mno
9
wxyz
1
Yes
Stay
Chime
Bypass
Reset
Menu
No
Bypass
Service
Power
Armed
Ready
Premier 832
12:55.22 21/11
1 Output
(100mA)
Premier LCD/LCDP
Remote Keypad
2 EOL Zones
4
ghi
2
abc
3
def
7
pqrs
Area
5
jkl
8
tuv
0
6
mno
9
wxyz
1
Yes
Stay
Chime
Bypass
Reset
Menu
No
Bypass
Service
Power
Armed
Ready
Premier 832
12:55.22 21/11
1 Output
(100mA)
Premier LCDL/LCDLP
Remote Keypad
Speaker Driver
Premier RKP8/16 Plus
Remote Keypad
4
ghi
2
abc
3
def
7
pqrs
Area
5
jkl
8
tuv
0
6
mno
9
wxyz
1
Yes
Stay
Chime
Bypass
Reset
Menu
No
Alarm
Armed
Service
Ready
Stay
Fire
12
3
4
5
6
7
8
9
10
11 12
13
14
15
16
Bypass Instant
2 EOL Zones ( )RKP16 Plus
8 EOL Zone Inputs
Premier 8X Remote
Zone Expander
2 Programmable
100mA Outputs
Speaker Driver
Remote Expanders
Premier 412
Premier 832
= 1
= 3
Premier 816 = 1
Control Panels
The Premier 412, 816 and Premier 832 are highly
sophisticated security control panels with Integrated Multi-
protocol Digital Communicator/Modem. The control panels
have the following features:
Features 412 816 832
Zones 4 8 8
Max. Zones when expanded 12 16 32
Partitions 2 4 4
User Codes 32 32 64
Event Log 750 750 1000
Touch Tone Remote Control - - !
Programmable Aux. Input ! ! !
Supervised Siren/Bell Output ! ! !
2 x 1A Supervised Outputs ! ! !
6 x 100mA Outputs ! ! !
Printer/UDL Port ! ! !
Integrated Modem/Communicator ! ! !
Remote Keypads
The control panels will accept up to a maximum of 6 remote
keypads. All remote keypads require a 4-wire connection to
the data network and have a built in piezoelectric sounder.
The following remote keypad models are available:
Premier RKP4/8/16
A cost effective range of remote keypads with either 4, 8 or
16 zone indicator lights.
• 4-wire connection to data network.
• Built in piezoelectric sounder.
• Dual level back-lighting, normally dim, switching to
bright for 8 seconds after any key press
• Dedicated status lights for “Alarm”, “Service”, “Armed”
and “Ready”.
Premier RKP8/16 Plus
A professional range of LED remote keypads with either 8 or
16 zone indicator lights.
• 2 programmable EOL zones.
• 4-wire connection to data network.
• Built in piezoelectric sounder.
To Next Page
