10
To Install the Top Mount Plate (Item #2), align the row of carriage bolt holes to those located on the top of the Right
Mount Plate. Secure the Top Mount Plate by using (1) 3/8”-16 x 1” Carriage Bolt (Item #3), (1) 3/8”-16 x 1-1/4”
Carriage Bolt (Item #4), (1) 3/8”-16 x 1-1/2” Carriage Bolt (Item #5) and (3) 3/8”-16 Ny-Flange Lock Nuts (Item #6).
Refer to Figure A.
Before Installing the Lower Mount Plate (Item #1) loosen and remove the (2) bottom pair of hardware previously
used to secure the bottom right of the Right Mount Plate. To install the Lower PTO Mount Plate (Item #1), Align the
row of carriage bolt holes of those of the Lower PTO Mount Plate located on the bottom of the Right Mount Plate.
Secure the Lower PTO Mount Plate by using (1) 3/8”-16 x 1” Carriage Bolt (Item #3), (1) 3/8”-16 x 1-1/4” Carriage
Bolt (Item #4), (1) 3/8”-16 x 1-1/2” Carriage Bolt (Item #5) and (3) 3/8”-16 Ny-Flange Lock Nuts (Item #6). Refer to
Figure A.
Note: Some part features have been hidden from view for visual clarity.

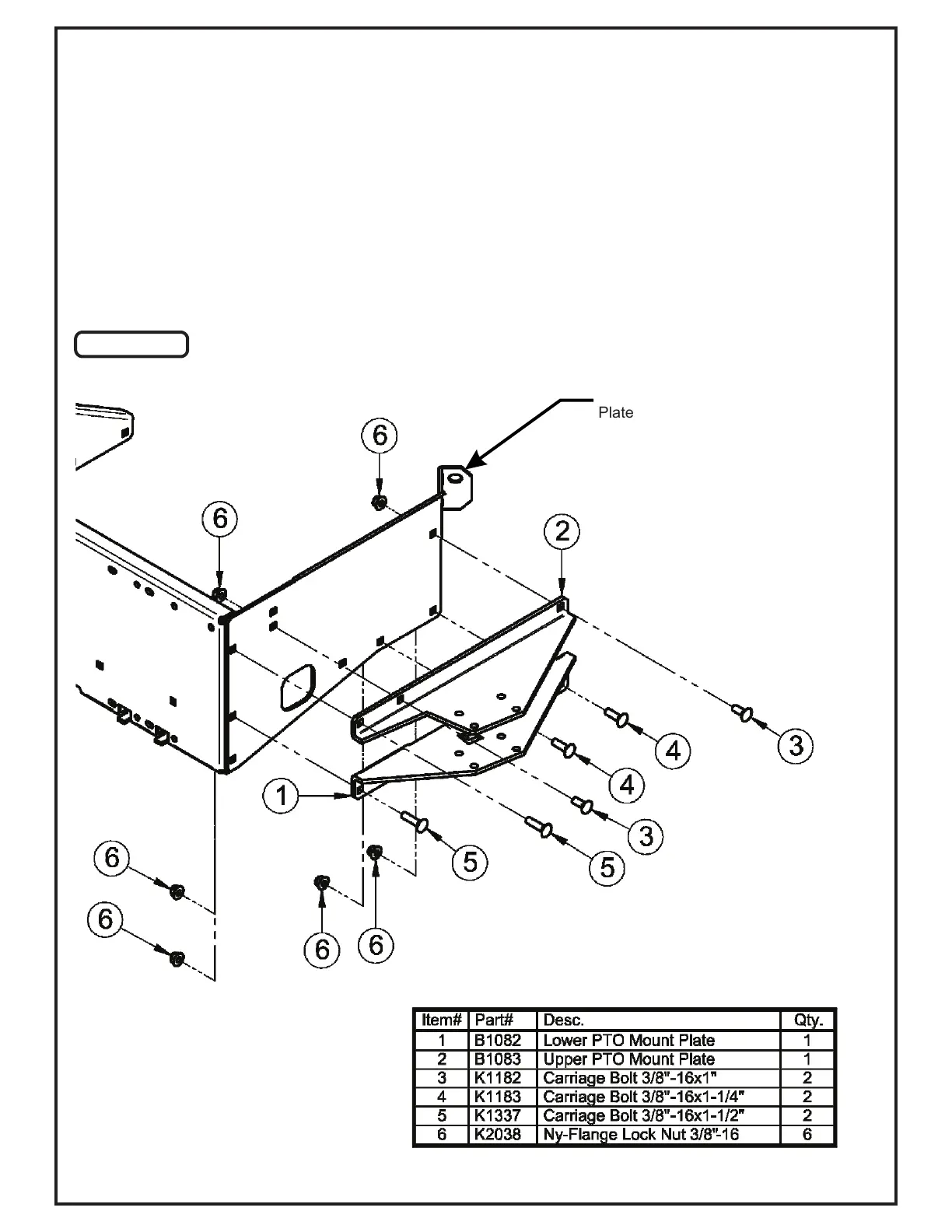

PTO Mount Plate Installation
Right Mount
Plate
Figure A
