20
Figure A Figure C

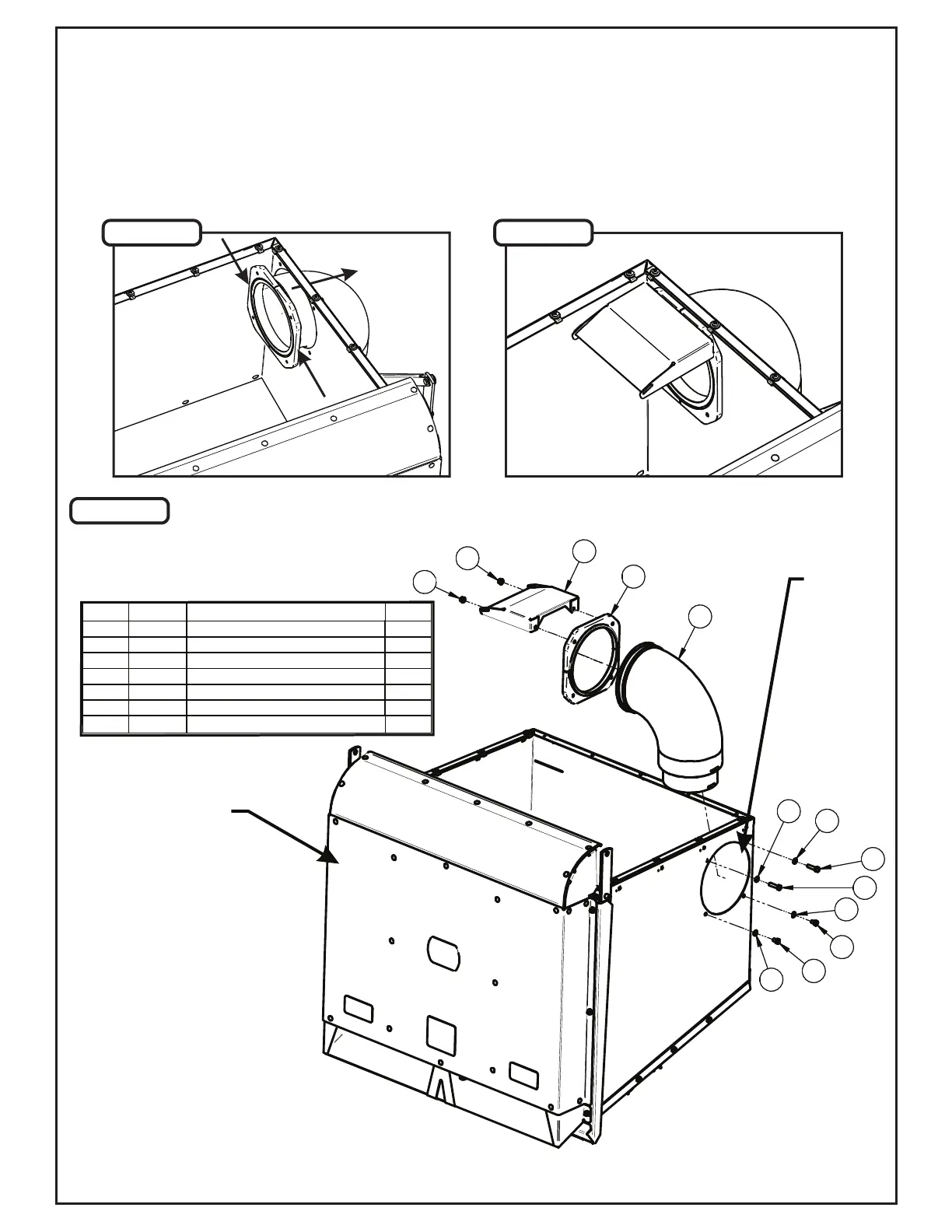

Open box door. From inside box, slide Inlet (Item #3) halfway into inlet hole (See Figure A). Take each half of the Inlet
Ring (Item #1) and attach around matching groove in Inlet (Item #3). Slide Inlet (Item #3) & Inlet Ring (Item #1)
against inlet hole and align four holes. Fasten Inlet Ring (Item #1) bottom holes using (2) 5/16” IT Tooth Lock Washers
(Item #4) & (2) 5/16”-18 x 1/2” HHCS (Item #6) (See Figure B). Fasten Inlet Ring (Item #1) top holes using (2) 5/16” IT
Tooth Lock Washers (Item #4) & (2) 5/16”-18 x 1-1/4” HHCS (Item #5). Slide Debris Deflector (Item #2) over inside top
bolt threads (Item #5). Fasten Debris Deflector (Item #3) using (2) 5/16”-18 Ny-Flange Lock Nuts (Item #7). Final
assembly should resemble Figure C.
Inlet, Inlet Ring & Debris Deflector Installation
Figure B
Note: Box Top & Screen Removed
In Figure Above For Visual Clarity.
Open Box Door
To Assemble Inlet,
Inlet Ring & Debris
Deflector
Inlet
Hole
Item # Part # Desc. Qty.
1 C0074 Inlet Ring 1
2 C0088 Debris Deflector 1
3 V0025 Universal Inlet / 6" & 7" 1
4 K0044 I/T Tooth Lock Washer 5/16" 4
5 K1156 5/16"-18 x 1-1/4" HHCS 2
6 K1152 HHCS 5/16"-18 x 1/2" 2
7 K2516 Ny-Flange Lock Nut 5/16"-18 2
To Next Page
