Align the bolt holes of the Main Frame Assembly (Item #1) to those on the Left and Right Main Frame Mount. Be

sure the Main Frame Assembly is sitting on the inside of both Main Frame Mounts. Secure the Main Frame

Assembly by using (2) 3/8”-16 x 1” Carriage Bolts (Item #2) and (2) 3/8”-16 Ny-Flange Lock Nuts (Item #3) PER

side. Refer to Figure A.

Main Frame Assembly Installation

Note: Some part features have been hidden for visual clarity.

Tighten all hardware at this time.

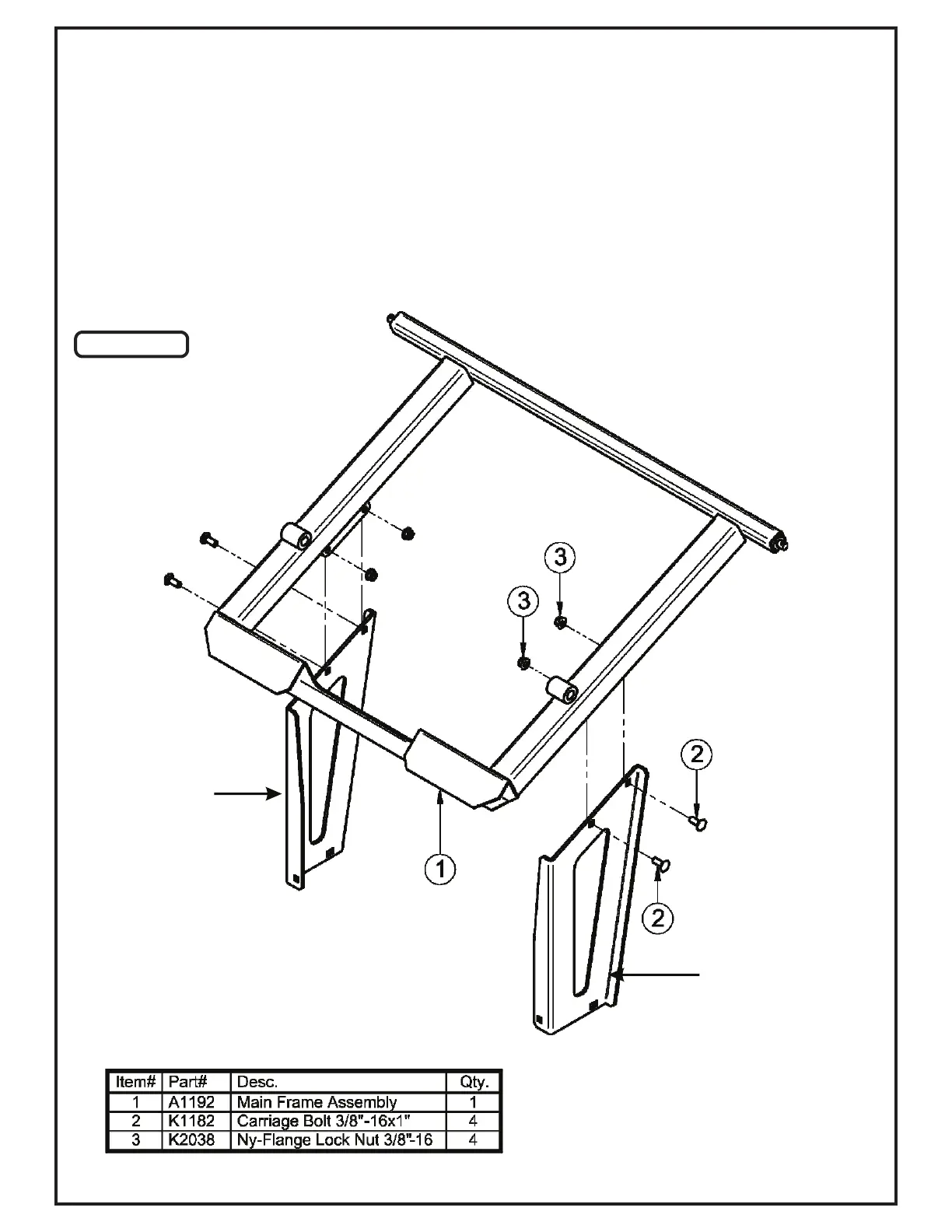

Figure A

Left Main

Frame Mount

Right Main

Frame Mount
