12
Note: Some part features have been hidden for visual clarity.

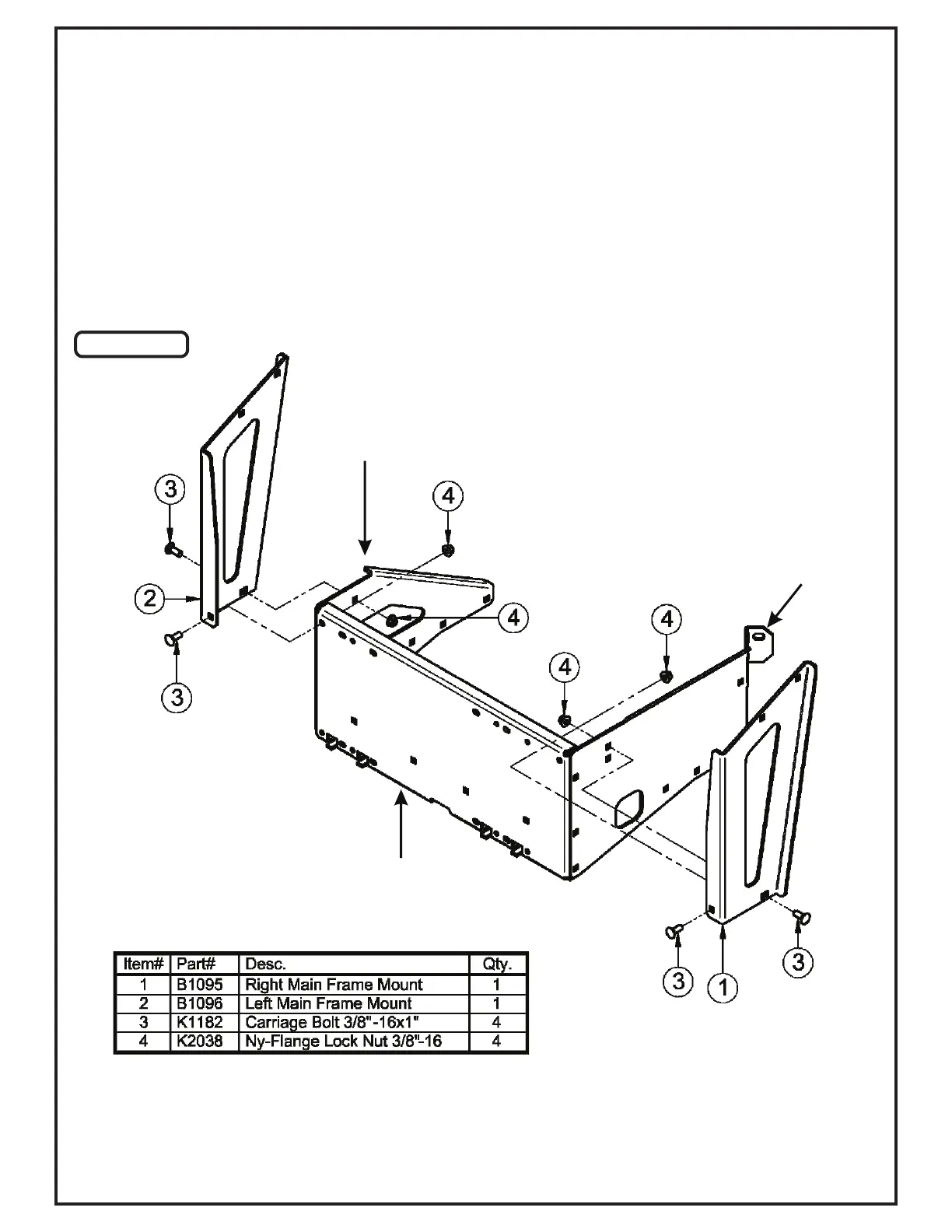

Align either the Right Main Frame Mount (Item #1) or the Left Main Frame Mount (Item #2) to the Mount Plates.
Make sure the bolt holes of either Main Frame Mounts are aligned to those on the Rear Mount Plate and either
Right or Left Mount Plate. Secure either Main Frame Mounts to the Mount Plates by using (2) 3/8”-16 x 1” Carriage
Bolts (Item #3) and (2) 3/8”-16 Ny-Flange Lock Nuts (Item #4) PER side. Refer to Figure A.
Main Frame Mount Installation
Keep all hardware during this step relatively loose for the installation of the Main Frame Assembly.
Figure A
Left Mount
Plate
Right Mount
Plate
Rear Mount
Plate
To Next Page
