9
Rear Mount Kit Assembly Installation
Before the installation of the Rear Mount Plate (Item #1), remove the existing hardware underneath the rear
bumper around the hitch receiver.
Next, align the side bolt holes of the Rear Mount Plate to those on the Left and Right Mount Plate. Secure the Rear
Mount Plate to the Left Mount Plate using (3) 3/8”-16 x 1” Carriage Bolts (Item #2) and (3) 3/8”-16 Ny-Flange Lock
Nuts (Item #3). Secure the Rear Mount Plate to the Right Mount Plate Using (1) 3/8”-16 x 1” Carriage Bolt (Item #1)
and (1) 3/8”-16 Ny-Flange Lock Nut (Item #3). Refer to Figure B. Tighten all hardware at this time.
Position the Rear Mount Plate to the mower’s rear bumper and align the bottom (2) bolt holes located on the
bottom tab of the Rear Mount Plate to those on the mower’s rear bumper. Secure the Rear Mount Plate relatively
loose here using (2) 3/8”-16 x 1-1/2” Carriage Bolts (Item #4), (2) Spacers (Item #5) and (2) 3/8”-16 Ny-Flange Lock
Nuts (Item #3). Refer to Figure A.
Note: Some part features have been hidden from view for visual clarity.

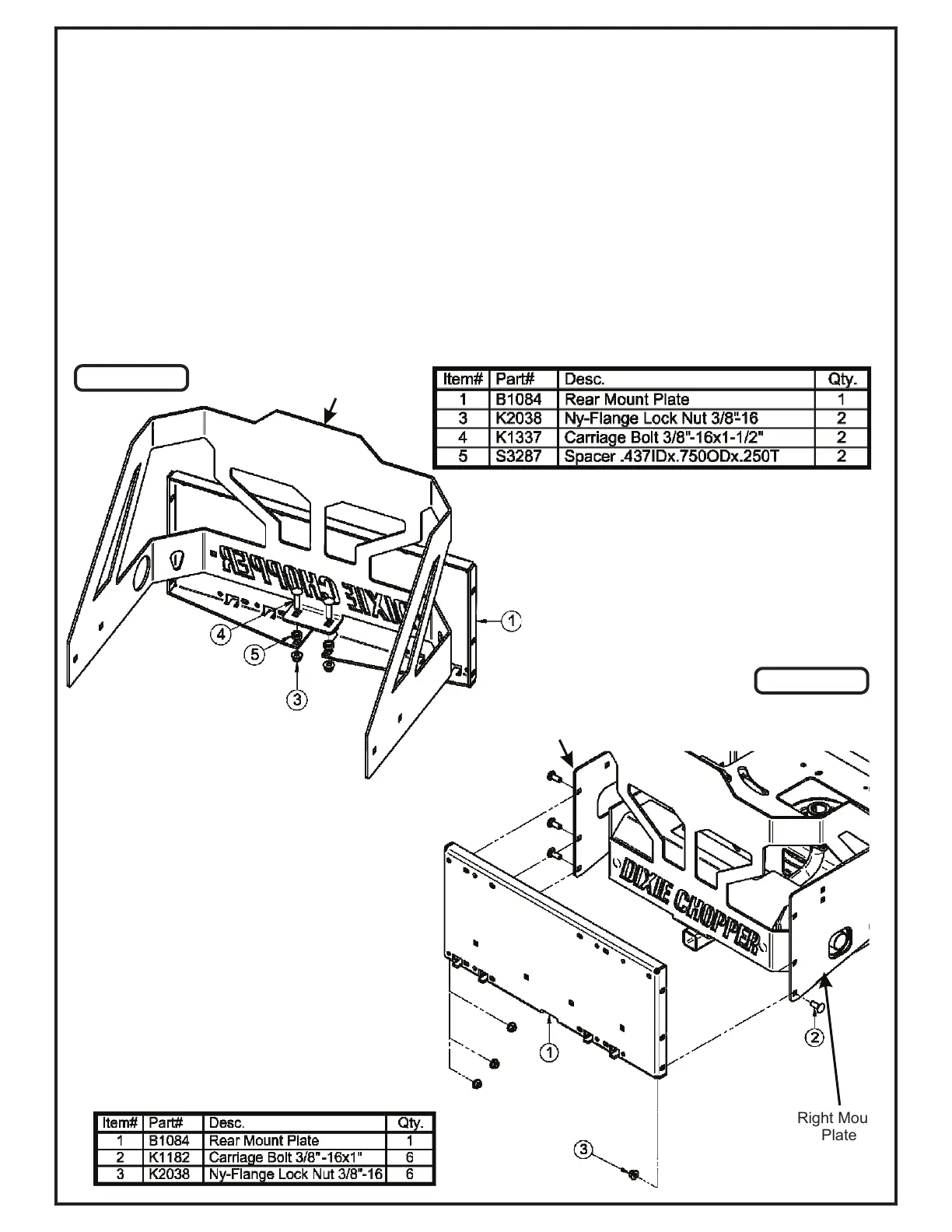

Figure A
Figure B
Rear
Bumper
Right Mount
Plate
Left Mount
Plate
To Next Page
