S the not decoded downlink telegram data
S the confidence bits
S the signal amplitude
S the mode 3/A address (squawk)
S the tail number
S the flight plan
S the country obtained from the mode S address
Example:
Area Id (SAC): 96
Source Id (SIC): 7
Mode S Address: 4004C3
Time of Receipt: 07:24:49 (26689.388)
Time of Day: 07:24:49 (26689.388)
Time of Arrival: 3324.388488574
Downlink Format: 17
Telegram Data: 8F4004C390B981923FF879000000
Confidence Bits: 69
Signal Amplitude: AA
Squawk: −−
Tail Number: −−
Flight Plan: −−
Country: United Kingdom
4.6.3.1.4 RRC Parameter: File Logging
If logging into a file is selected on the notebook page ’Parameter’, the following parameters can be
set (see Fig. 4−95). The logfile has to be chosen, where the received data shall be written to. A file-
name can immediately be entered into the textfield ’Filename’, or the button ’Choose’ can be pushed
to get a file selection box as shown in Fig. 4−96.

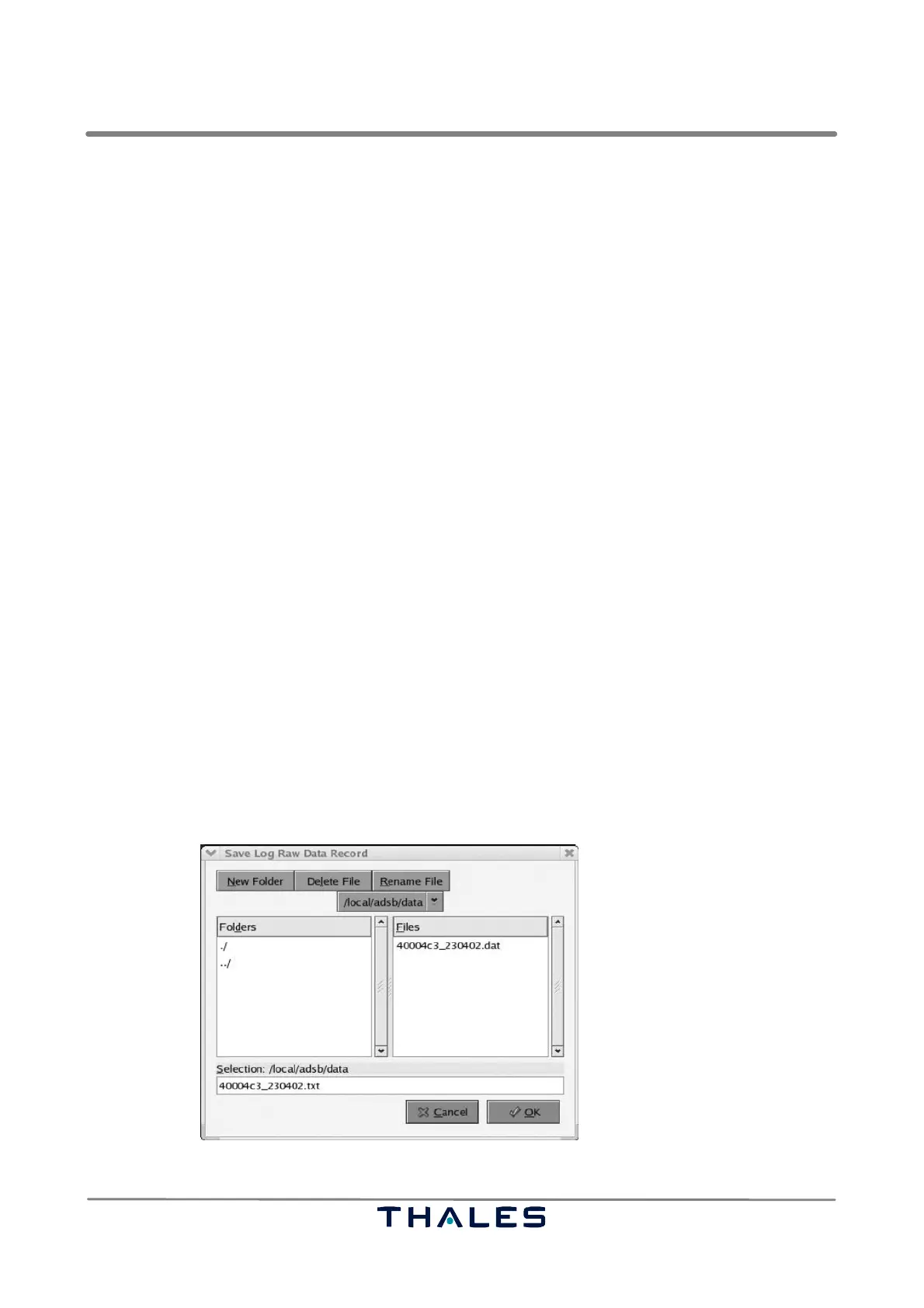

Fig. 4−96 RRC, File Selection Box (example)
