AS 680/682
Description, Operation and Maintenance Subsystem Description
ADS−B
2−19Ed. 10.07
− Load and battery capacity LEDs
These LEDs signal the UPS system load if the mains power is available (normal operation):
1st LED 1−35 %
2nd LED 35−55 %
3rd LED 55−75 %
4th LED 75−95 %
5th LED 95−105%.
In the case of battery operation, the LEDs indicate the capacity of the batteries:
1st LED 1−35 %
2nd LED 35−55 %
3rd LED 55−75 %
4th LED 75−95 %
5th LED 95−100 %.
Fault LED
Standby button
ON−button
Load and Capacity LED
Line LED
Bypass LED
Inverter LED
Battery LED

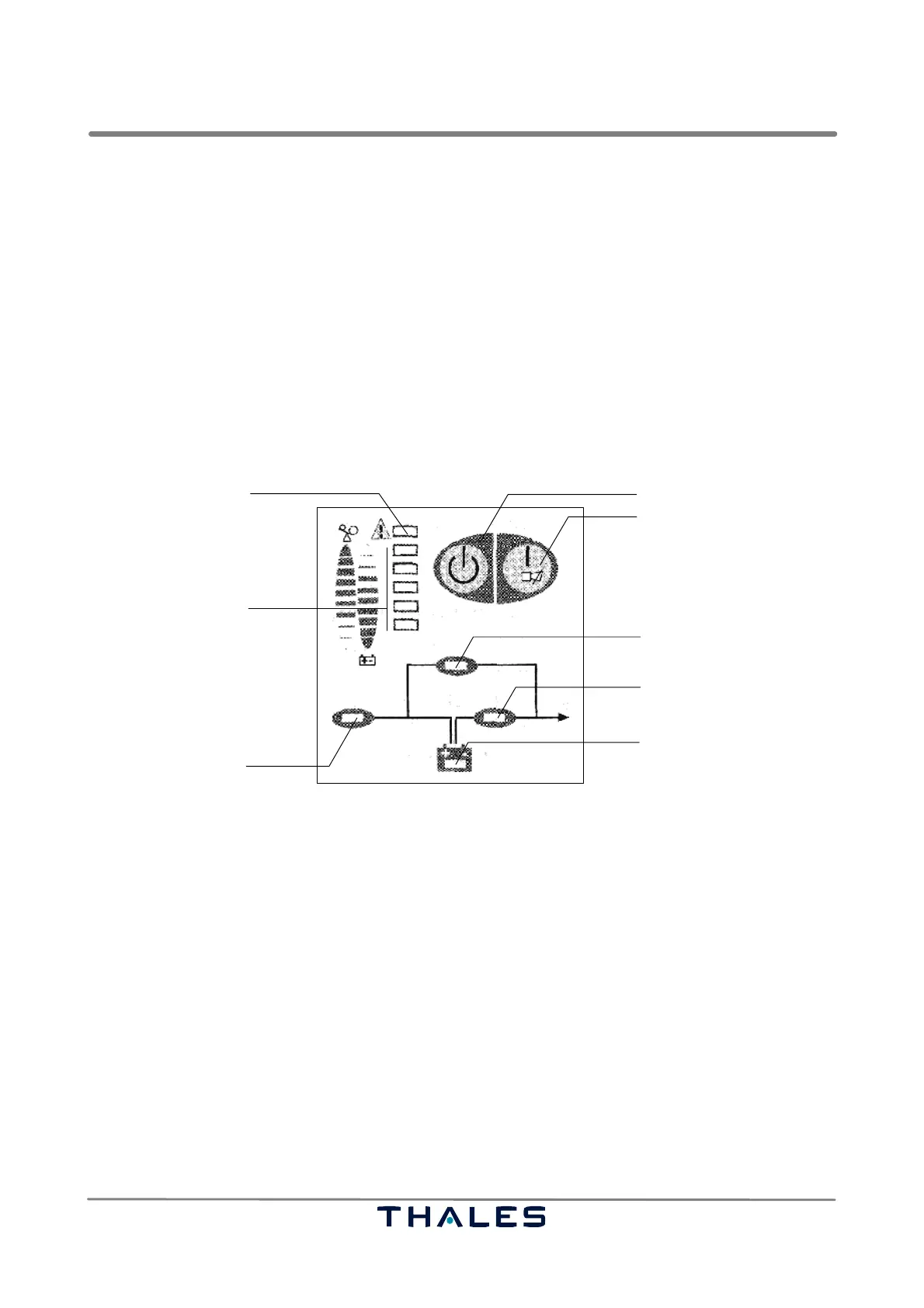

Fig. 2−22 Uninterruptible Power Supply, operating panel at base unit
