5.4.6 Page ’Network’
This page, see Fig. 5−10, holds all network parameters of the Ground Station.

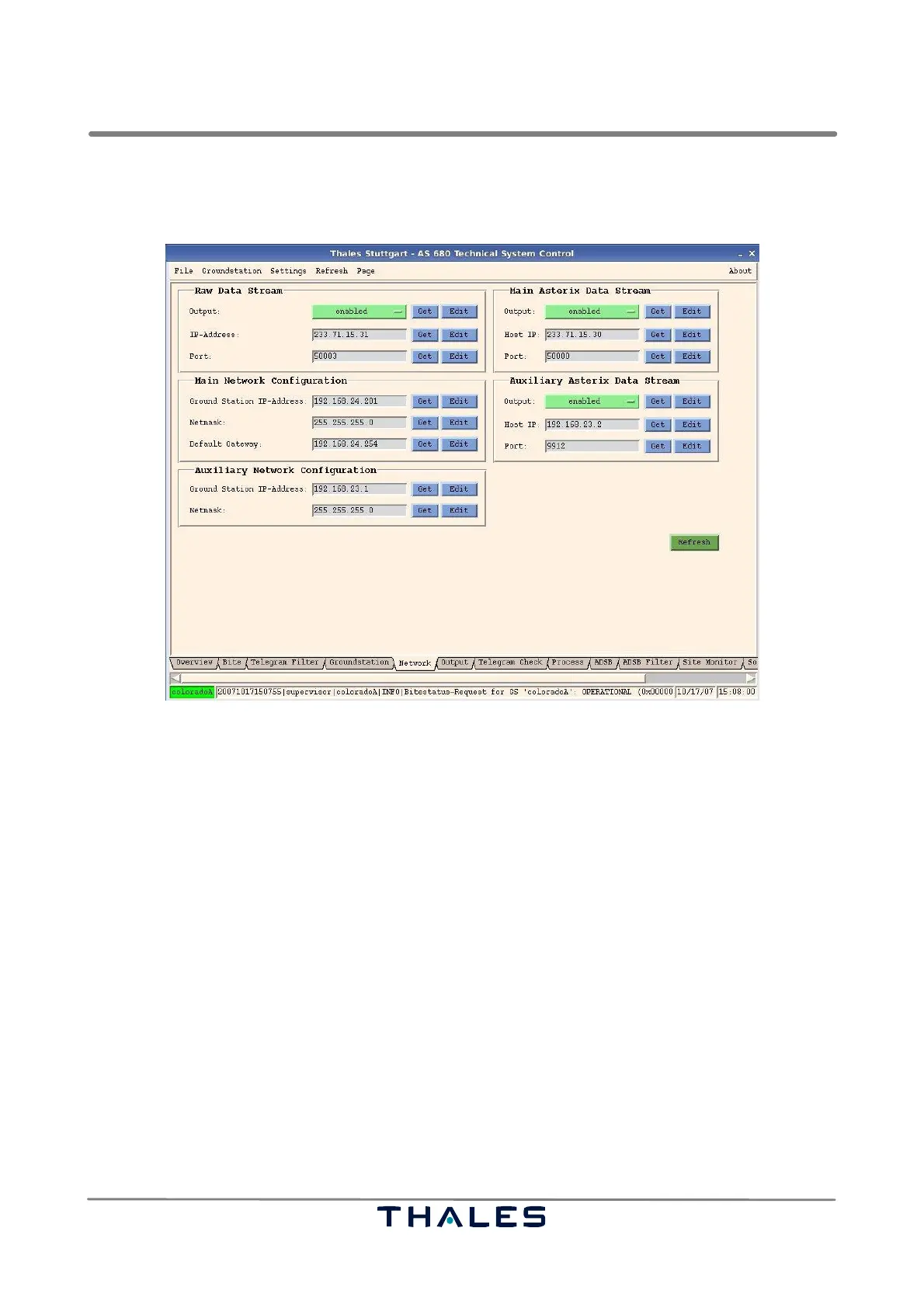

Fig. 5−10 Page ’Network’ (example)
5.4.6.1 Raw Data Stream
A destination, consisting of IP address and port, must be given on this page, if raw data output is en-
abled. It is possible to give an interval in seconds, when raw data shall be sent.
5.4.6.2 Main Network Configuration
The IP address of the Ground Station is needed by the TSC to communicate with the Ground Station.
The net mask used for sub network addressing and the default gateway address are mandatory net-
work configuration parameters.
5.4.6.3 Auxiliary Network Configuration
It is possible to configure an auxiliary network on a second Ethernet card, which can be used instead
of the main network. This auxiliary network is configured with a Ground Station’s IP address and a
net mask.
5.4.6.4 Main and Auxiliary Asterix Data Stream
A destination, consisting of IP address and port, must be given, if Asterix CAT 21 output is required.
’Auxiliary Asterix Data Stream’ is an alternative destination address, where Asterix data shall be sent
to. This parameters need not be present.
