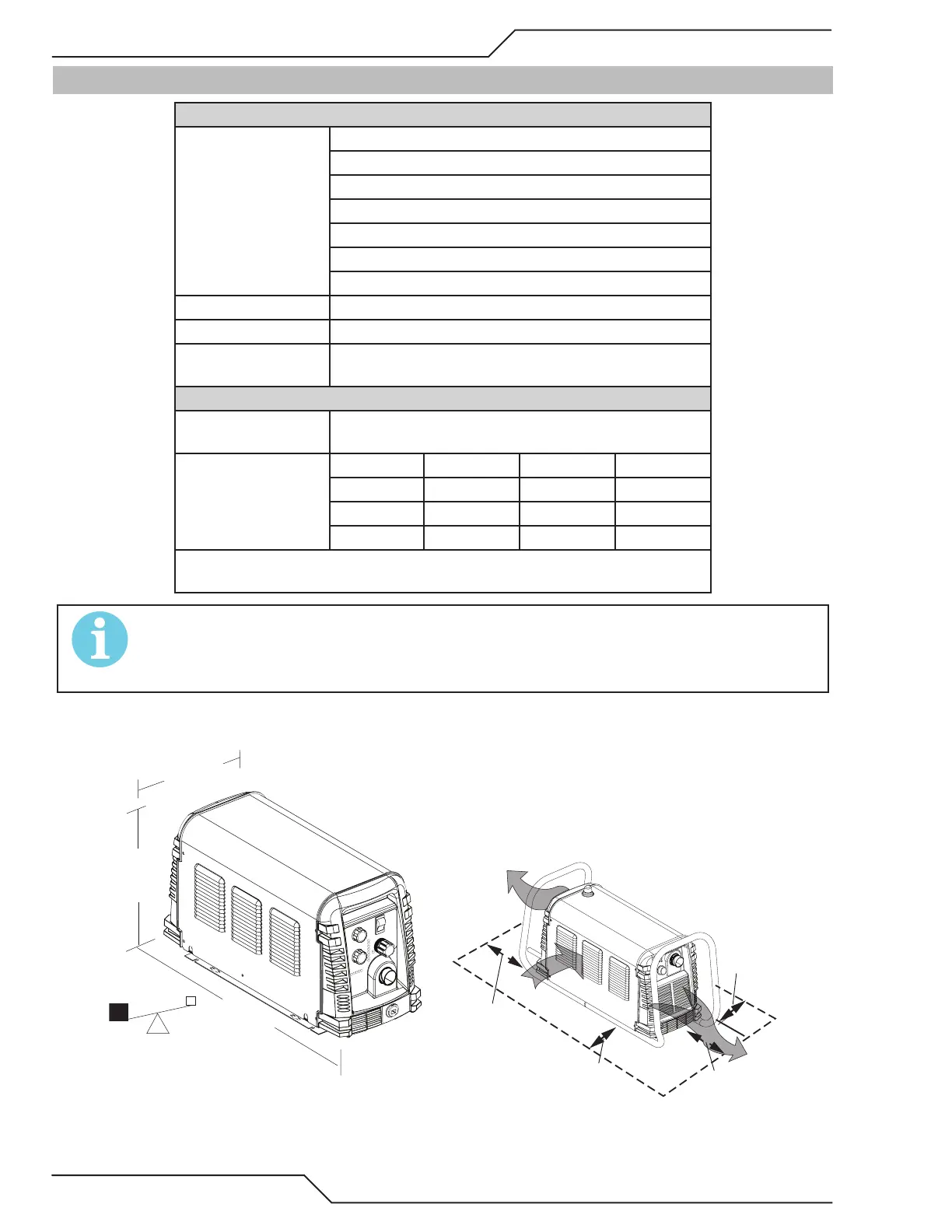

INTRODUCTION 0-4985
2-2
2.04 Power Supply Specications
A80 Power Supply Specications
Input Power
208 / 230 VAC (187 - 253 VAC), Single Phase, 60 Hz
230 VAC (187 - 253 VAC), Three Phase, 50/60 Hz
380 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
400 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
460 VAC (414 - 506 VAC), Single Phase, 60 Hz
460 VAC (414 - 506 VAC), Three Phase, 60 Hz
600 VAC (540 - 630), Three Phase, 60 Hz
Input Power Cable Power Supply includes input cable.
Output Current 30 - 100 Amps, Continuously Adjustable
Power Supply Gas
Filtering Ability
Particulates to 5 Microns
A80 Power Supply Duty Cycle *
Ambient Temperature
Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
All Units
Duty Cycle 60% 80% 100%
Current 100 80 70
IEC IEC IEC
DC Voltage 120 112 108
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low or
the output voltage (DC) is higher than shown in this chart.
NOTE!
IEC Rating is determined as specied by the International Electro-Technical Commission. These speci-
cations include calculating an output voltage based upon power supply rated current. To facilitate
comparison between power supplies, all manufacturers use this output voltage to determine duty cycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
26.3"
0.668 m
74 lb / 33.5 kg
10"
254 mm
13.78"
350 mm
Art # A-14467
150 mm
6"
610 mm
24"
150 mm
6"
150 mm
6"
Art # A-14328
