A80
0-4985 INSTALLATION
3T-3
3T.03 Setting Up Automation or Machine Torch
NOTE!
An adapter is required to be installed in the power supply if converting a hand torch system
to operate a machine or automation torch.
WARNING
Disconnect primary power at the source before disassembling the torch or torch leads.
The Automation and Machine torch include a positioning tube with rack and pinch block assembly.
1. Mount the torch assembly on the cutting table.
2. To obtain a clean vertical cut, use a square to align the torch perpendicular to the surface of the workpiece.

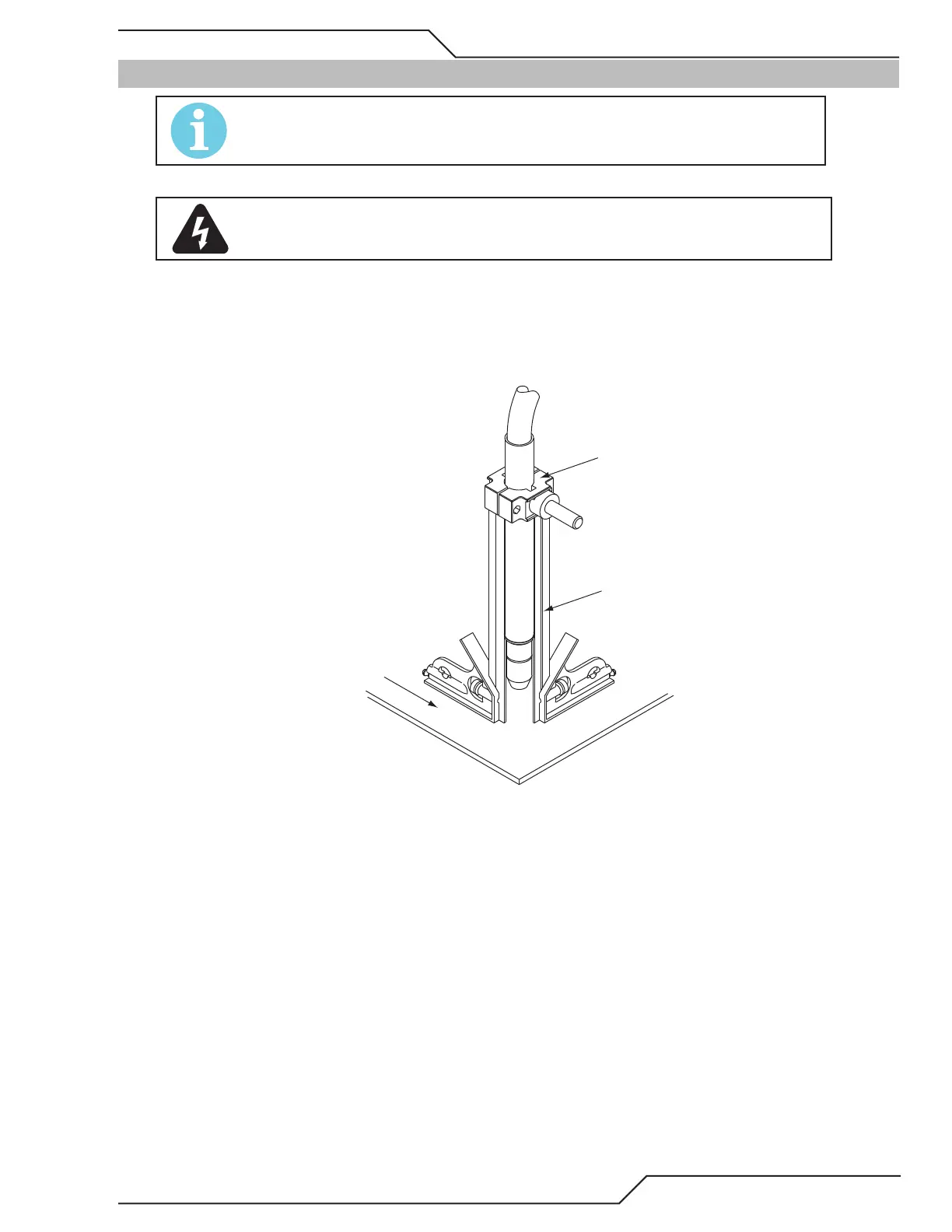

A-02585
Workpiece
Square
Pinch Block
Assembly
Automated and Machine Torch Set - Up
3. The proper torch parts (shield cup, tip, start cartridge, and electrode) must be installed for the type of operation.
Refer to Section 4T.08, Torch Parts Selection for details.
