Thermal Dynamics A80 User Manual

A80

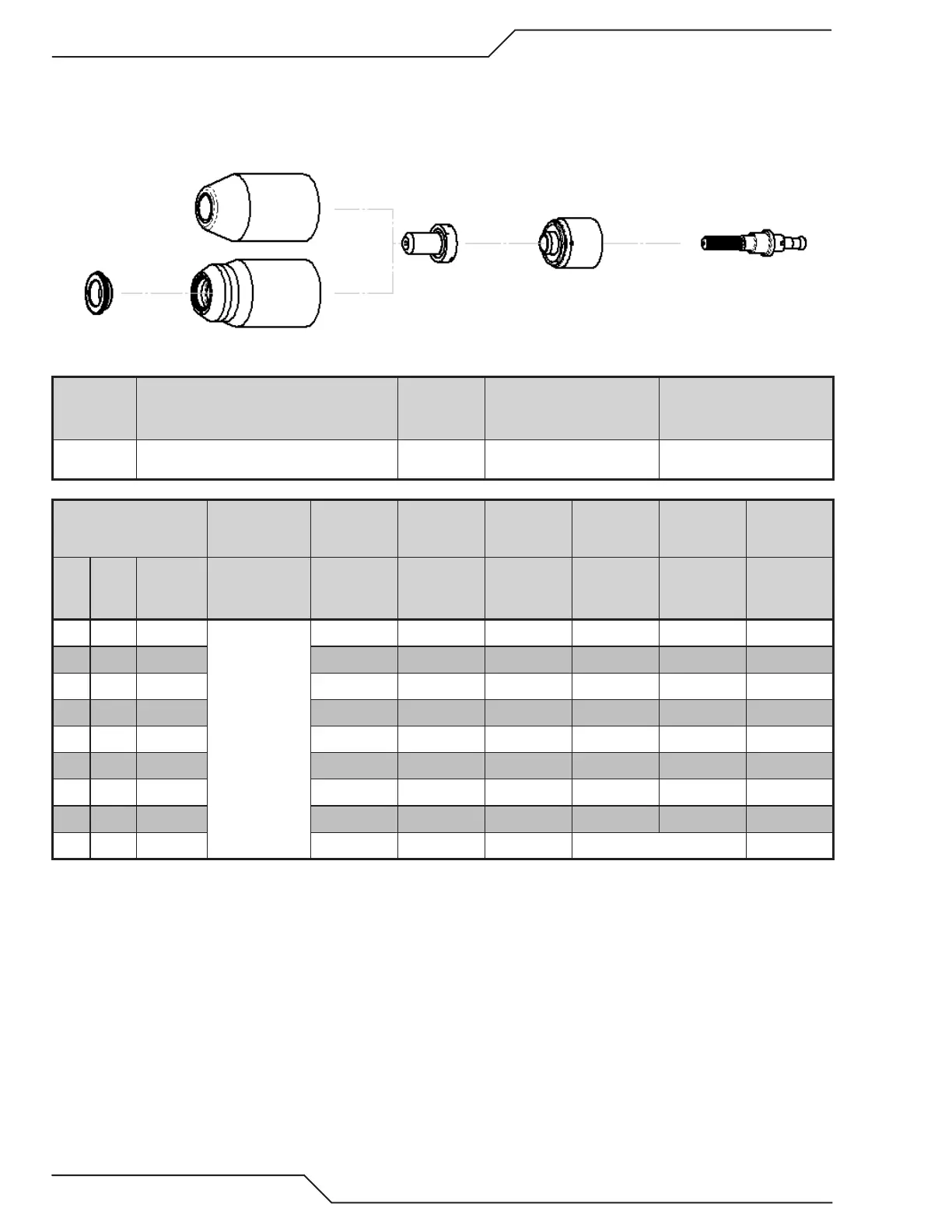

OPERATION 0-4985
4T-10
Stainless Steel
40A
Air Plasma / Air Shield
Deector
Standard Shield Cup
Maximum Life Shield Cup
Tip
Starter Cartridge
Heavy Duty Starter
Cartridge
Electrode
9-8243
9-8218
9-8237
9-8208
9-8213
9-8277
9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch Working
Height
Travel Speed
Initial Piercing
Height
Pierce Delay
Kerf Width
@ Rec. Speed
(GA) (in) inch
PSI
(torch lead
length)
Volts (in) (ipm) (in) (sec) (in)
18 0.050
75 (25')
80 (50')
110 0.19 60 0.20 0.00 0.07
16 0.063 100 0.19 50 0.20 0.00 0.07
14 0.078 105 0.19 45 0.20 0.10 0.07
12 0.109 110 0.19 40 0.20 0.20 0.07
10 0.141 108 0.19 35 0.20 0.30 0.07
3/16 0.188 110 0.19 30 0.20 0.40 0.07
1/4 0.250 120 0.19 18 0.20 0.50 0.08
3/8 0.375 126 0.19 10 0.20 2.00 0.08
1/2 0.500 118 0.19 8 Edge start 0.09

Thermal Dynamics A80 Specifications

General

Brand	Thermal Dynamics
Model	A80
Category	Cutter
Language	English
