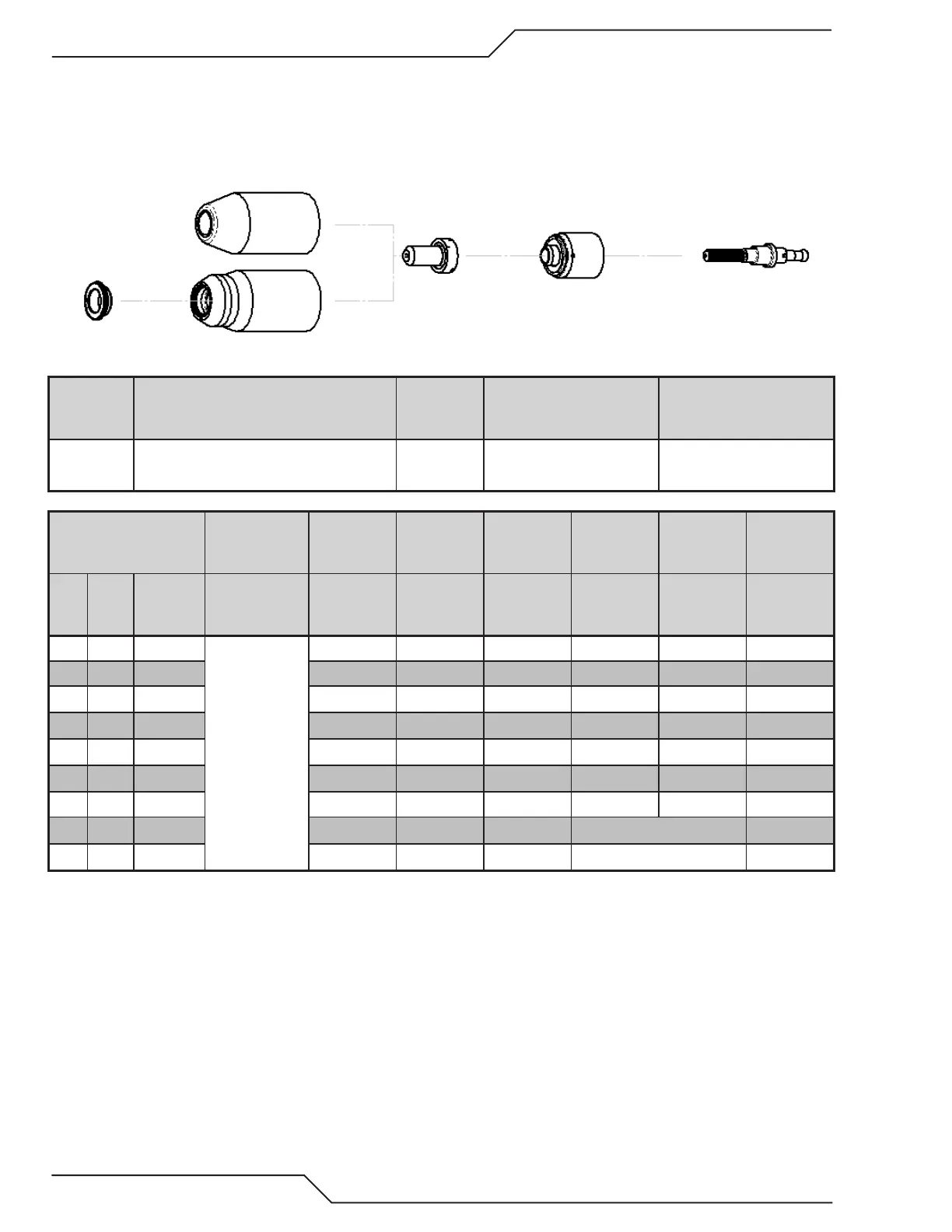

Thermal Dynamics A80 User Manual

A80
OPERATION 0-4985
4T-24
Aluminum
80A
Air Plasma / Air Shield
Deector
Standard Shield Cup
Maximum Life Shield Cup
Tip
Starter Cartridge
Heavy Duty Starter
Cartridge
Electrode
9-8243
9-8218
9-8237
9-8211
9-8213
9-8277
9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch Working
Height
Travel Speed
Initial Piercing
Height
Pierce Delay
Kerf Width
@ Rec. Speed
(GA) (in) inch
PSI
(torch lead
length)
Volts (in) (ipm) (in) (sec) (in)
16
0.064
85 (25')
90 (50')
116 0.25 350 0.25 0.00
0.10
11
0.120
120 0.25 280 0.25 0.10
0.10
3/16
0.188
124 0.25 180 0.25 0.20
0.10
1/4
0.250
130 0.25 110 0.25 0.30
0.09
3/8
0.375
136 0.25 55 0.25 0.40
0.11
1/2
0.500
139 0.25 38 0.25 0.60
0.11
5/8
0.625
136 0.19 26 0.25 0.75 0.10
3/4
0.750
150 0.19 14 Edge Start 0.12
7/8 0.875 153 0.19 10 Edge Start 0.11
