cutmaster a120
INSTALLATION 3-2 Manual 0-4989

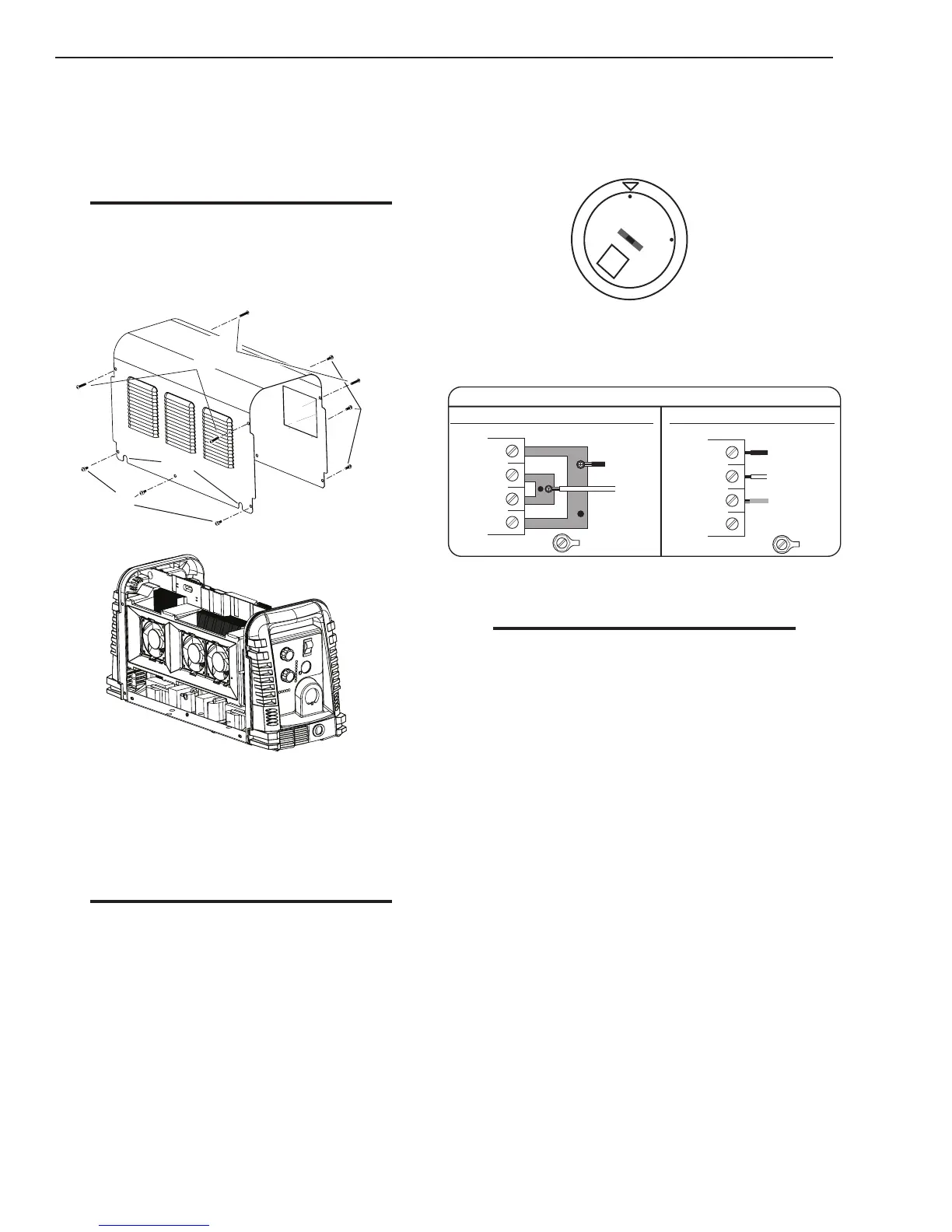

A. Cover Removal
1. Remove the upper and lower screws
which secure the cover to the main assem-
bly. Do not loosen the lower screws inside
the cut out slots in the bottom of the cover.
Note
The upper screws and lower screws are not the
same. Do not mix them. The upper screws are
for threading into the plastic of the front and rear
panels. DO NOT use the finer threaded lower
screws for this.
Art # A-08429
Lower
Screws
Lower
Screws
Slots
Upper
Screws
2. Carefully pull the Cover up and away from
the unit.
B. Cover Installation
1. Reverse previous procedures for cover
installation.
NOTE
When installing the upper screws, attempt to
reuse the original threads. The easaiest way to
do this is by turning the screw counter-clockwise
until you feel the threads lign up, then begin to
turn the screw clockwise to tighten. Do not over
tighten.
C. Input Power Selection
Set the Input Voltage Selection Switch at the rear
of the unit based on the primary input voltage it
is connected to. Low is 208/230 VAC and high is
460 VAC.
D. Quick Guide to Phase Wiring
The following illustration and directions are for
changing phase of the power supply.
Art # A-08493
Input Power Cable Connections
Three-Phase (3ø)
Store copper jumpers on base plate
Single-Phase (1ø) and Jumper Settings
GND
L1
L2
L3
L4
GND
L1
L2
L3
L4
Single and Three Phase Input Power Wiring
NOTE
There are two jumpers used for the single phase
230V setting and none for three phase.
To Next Page
