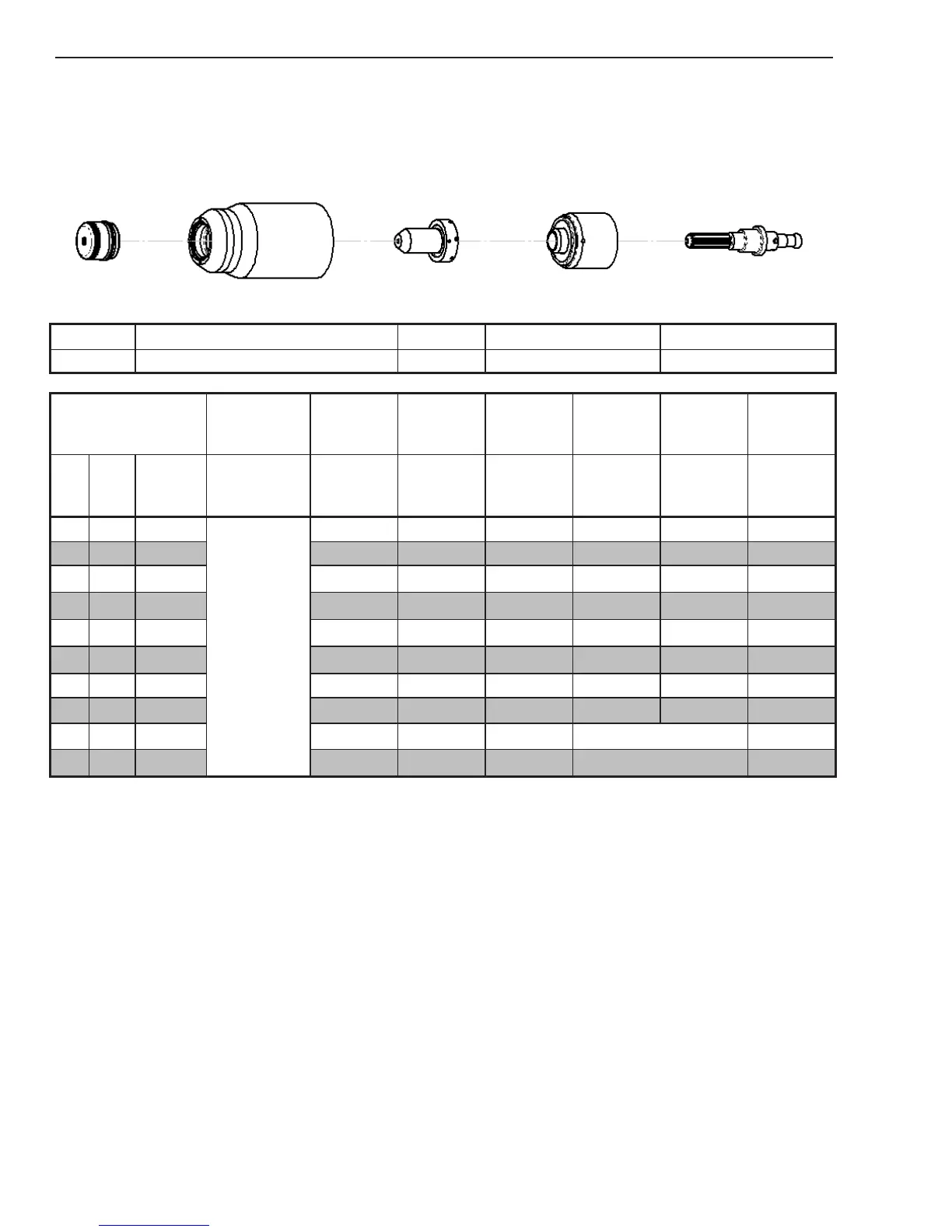

OPERATION 4T-42 Manual 0-4989
Stainless Steel
60A
Air Plasma / Air Shield
Shield Cap Maximum Life Shield Cup Tip Starter Cartridge Electrode
9-8238 9-8237 9-8210 9-8213 9-8215
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA)
(in) inch
PSI
(torch lead
length)
Volts
(in)
(ipm) (in) (sec) (in)
16
0.063
85 (25')
90 (50')
110 0.13 165 0.20 0.00 0.06
14
0.078 116 0.13 155 0.20 0.10 0.07
11
0.125 118 0.13 125 0.20 0.10 0.07
10
0.141 126 0.13 80 0.20 0.10 0.09
3/16 0.188 125 0.13 75 0.20 0.20 0.09
1/4 0.250 127 0.13 60 0.20 0.30 0.08
3/8 0.375 134 0.13 28 0.20 0.50 0.08
1/2 0.500 136 0.19 17 0.25 0.75 0.09
5/8 0.625 131 0.13 14 Edge Start 0.08
3/4 0.750 142 0.19 10 Edge Start 0.11
