CUTMASTER A80, A120
Manual 0-5119 3-3 INSTALLATION
5. Pass the cable being used through the ac-
cess opening in the back panel of the power
supply. Refer to Section 2 for power cable
specications.
CAUTION
The primary power source and power cable
must conform to local electrical code and the
recommended circuit protection and wiring
requirements (refer to table in Section 2).
6. Connect the wires as follows.
• Wires to L1, L2 and L3 input. It does
not matter what order these wires are
attached. See previous illustration and
on label in the power supply.
• Green / Yellow wire to Ground.
7. With a little slack in the wires, tighten
the through - hole protector to secure the
power cable.
8. Reinstall the Power Supply cover see sub-
section B.
9. Connect the opposite end of individual
wires to a customer supplied plug or main
disconnect.
10. Connect the input power cable (or close
the main disconnect switch) to supply
power.
3.05 Gas Connections
Connecting Gas Supply to Unit
The connection is the same for compressed air or
high pressure cylinders. Refer to the following
subsections if an optional air line lter is to be
installed.

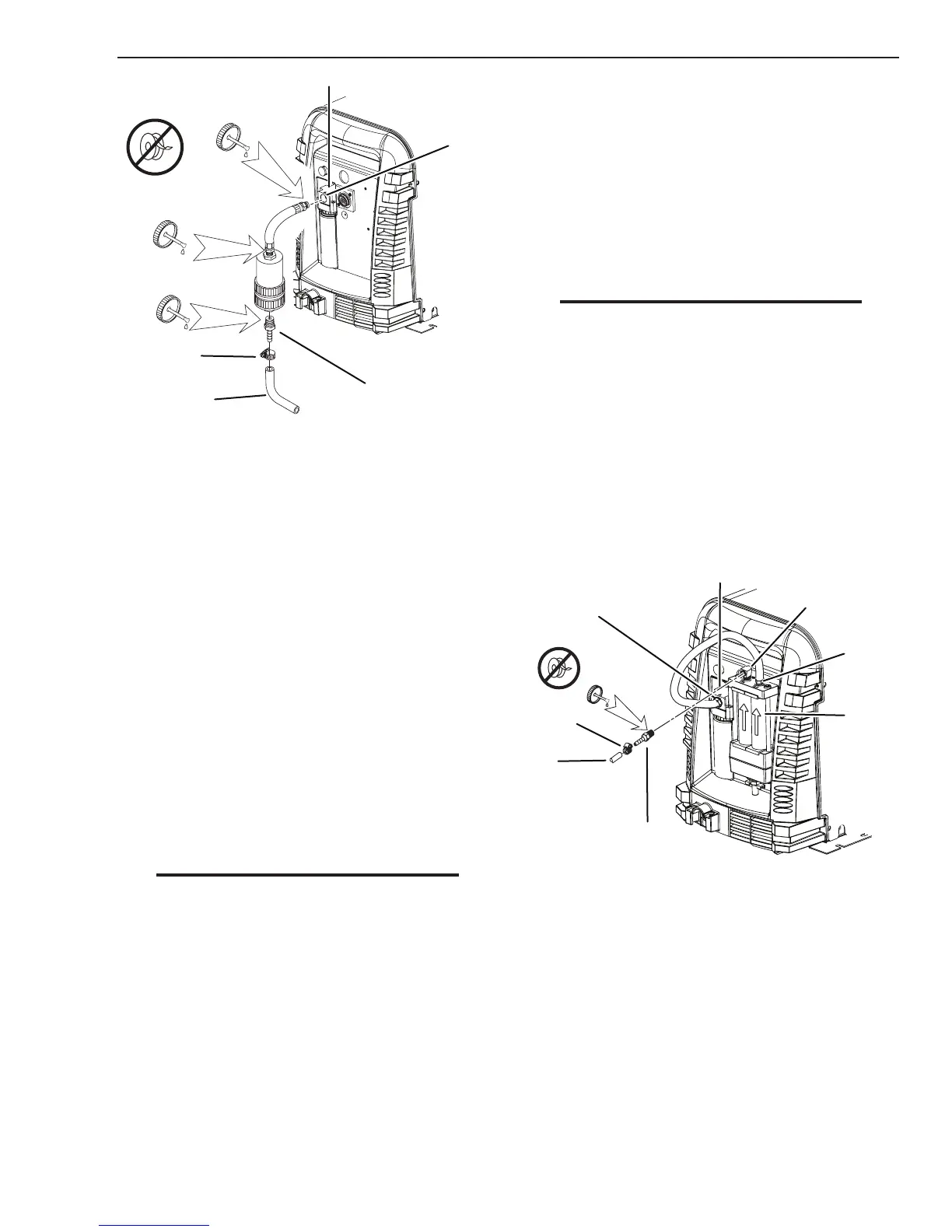

1. Connect the air line to the inlet port. The
illustration shows typical fittings as an
example.
NOTE
For a secure seal, apply thread sealant to the
fitting threads, according to manufacturer's
instructions. Do not use Teflon tape as a thread
sealer, as small particles of the tape may break off
and block the small air passages in the torch.
