ULTRA-CUT 200 XT
Manual 0-5304 TORCH INFORMATION 7-1
SECTION 7: TORCH MAINTENANCE

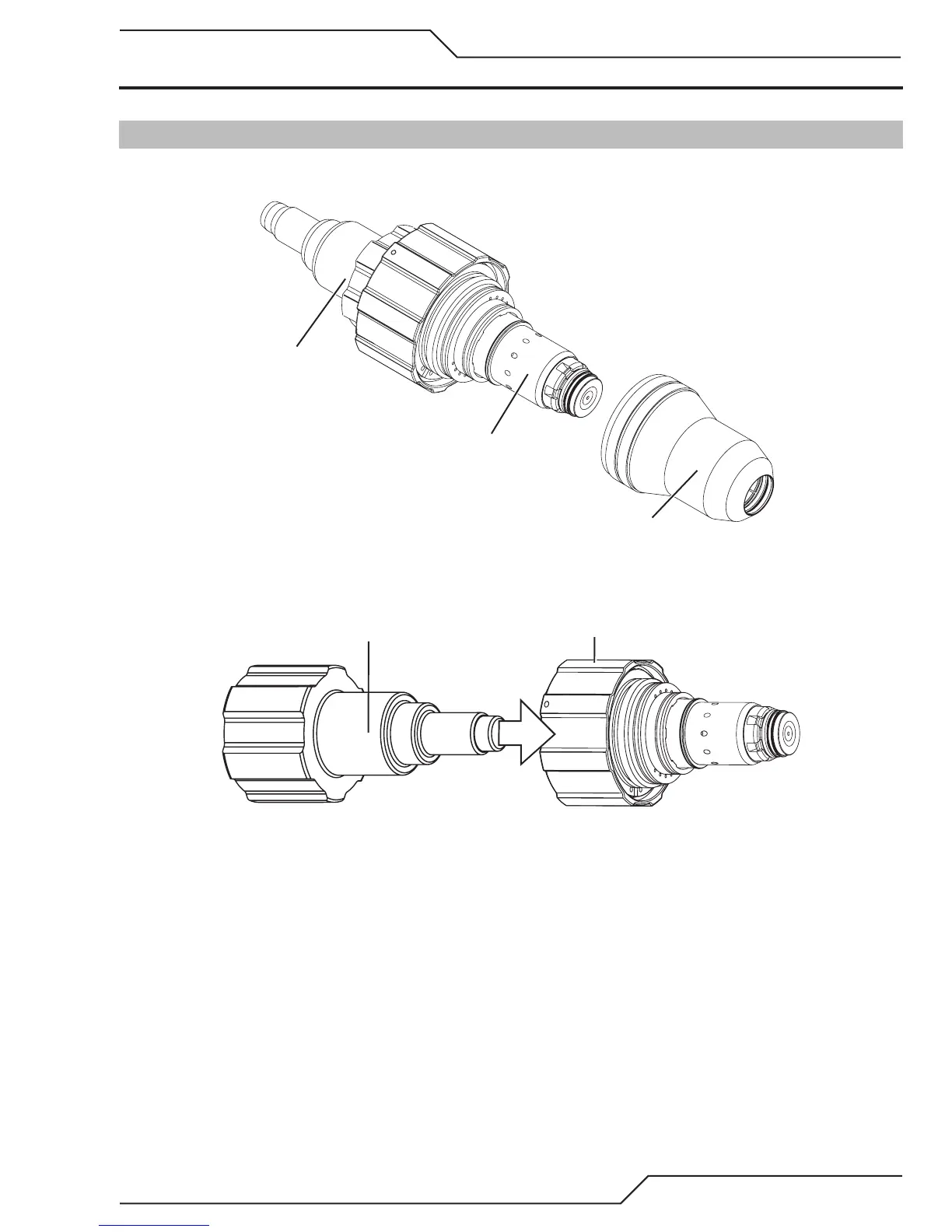

7.01 Consumable Removal
1. Use the removal tool to hold the Shield Cup & Cartridge Assembly stationary. Turn the Shield Cup to remove it from the
Cartridge Assembly.
Assembled Cartridge
Cartridge Tool
Shield Cup
Art # A-04344_AB
2. Take the Removal Tool off the back of the Cartridge Assembly Use the removal tool to push the consumable parts out of
the Cartridge.
Cartridge Tool
Cartridge Assembly
Art # A-04345_AB
