ULTRA-CUT 200 XT
4-10 OPERATION Manual 0-5304

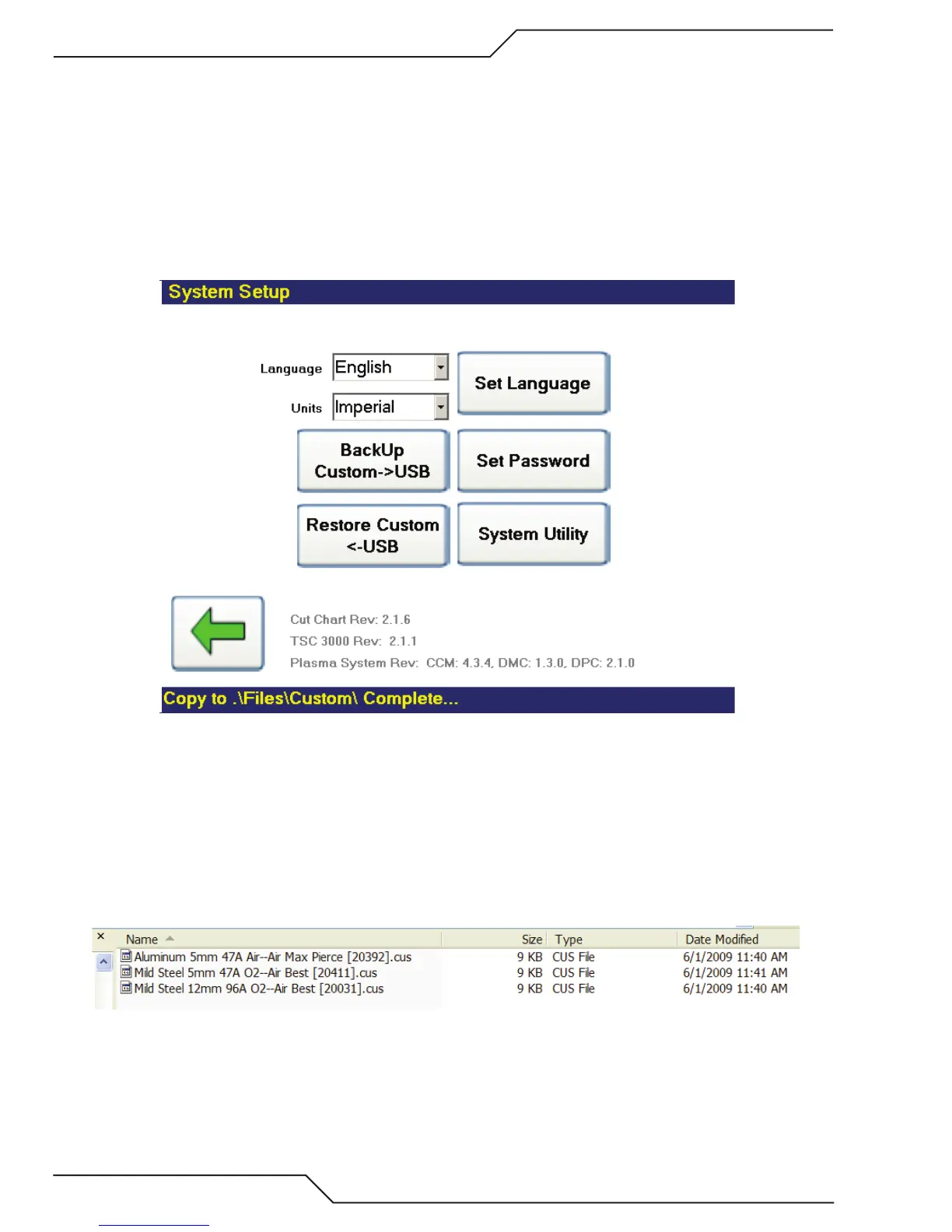

Restoring Custom Processes:
During file backup (see previous process) a folder and sub folders called “TD” were placed on your flash drive. You should copy
this folder with its subfolders to some secure place. Making more than one copy is advised. If the need arises to restore from
this backup, place the entire TD folder in the root directory (not in another folder) on a USB flash drive and plug it into the USB
port on the TDC 3000.
1. For the remotely mounted DSC 3000 insert the flash drive in the USB connector on the back. If using the TSC 3000 mounted
in the plasma supply front panel the USB connector is in the front under the clear plastic protective screen.
2. Go to the HOME screen. Select SETUP. Enter the 5 digit password (00000) unless you’ve changed it.
3. Press the “Restore Custom <USB.
Art # A-09235_AB
4. Shortly, almost instantly if only a few files, you should see at the bottom “Status: Copy to .\Files\Custom/Complete” then you
can remove the USB flash drive.
Renaming Custom Files
You cannot rename the files while on the TSC 3000 but once you backup a file on the flash drive you can use a computer to rename
the file on the flash drive and perform the restore to put the renamed file back on the TSC 3000.
1. Use Windows Explorer to find the folder TD in the root directory of the flash drive. Then find and open the folder CustomFiles.
Here you will find all the custom processes saved.
2. Use Windows Rename to change the file name to whatever you want. Do not change the file extension (.cus) or the file
number in the brackets! Suggest not making the name too long as the TSC 3000 screen is limited in the number characters
on one line. Here I’ve renamed the top file.
