Thermia Athena Installation Guide

For all deliveries:

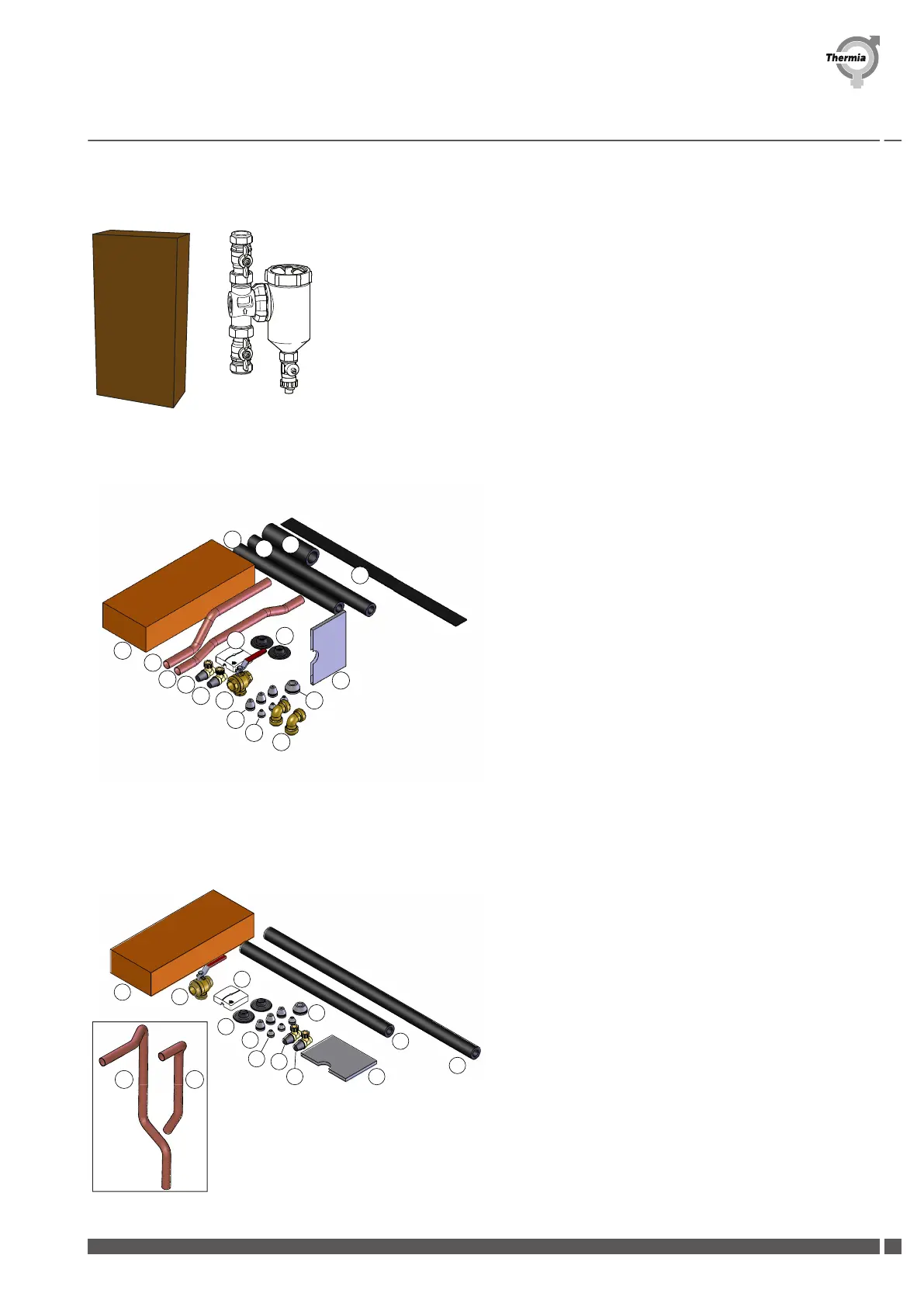

Magnetite filter
For Athena Total EQ and Athena Compact:
1
3
2
4
5
7
8
9
12
10
11
13
14
17
15
16
6
1. Accessory box
2. Water pipe out
3. Water pipe in
4. Safety valve, 9 bar
5. Safety valve, 3 bar, 1/2"
6. Outdoor sensor
7. Filter ball, DN25, PN16
8. Cable inlet
9. Cable inlet
10. Cable inlet M40
11. Plastic manual holder
12. Push-fit elbow 28
13. Grommet
14. Pipe insulation
15. Pipe insulation, length: 200mm, 42x9mm
16. Insulation tape
17. Pipe insulation, length: 540mm, 28x9mm
For Athena Total 300L:
1
3
2
4
5
7
8
9
12
10
11
6
13 14
1. Accessory box
2. Outdoor sensor
3. Filter ball DN25 PN16
4. Cable inlet
5. Cable inlet
6. Cable inlet, M40
7. Plastic manual holder
8. Grommet
9. Pipe insulation, length: 700mm
10. Pipe insulation, length: 1000mm
11. Safety valve, 9 bar
12. Safety valve, 3 bar, 1/2"
13. Cu-pipe Ø28 (placed behind the electrical cabinet inside
the unit and not included in this package)
14. Cu-pipe Ø28 (placed behind the electrical cabinet inside
the unit and not included in this package)
Installation Guide Athena
Thermia AB AWAT01IGCG0102
23
