6.9 General information for connections to outdoor unit
The quick couplings included are tool-free and pushed in place. The coupling locks automatically. Before mounting, check that there are
no sharp edges or irregularities on the pipe that could damage the rubber sealing in the couplings and cause leakage. The coupling can
be rotated after being mounted.

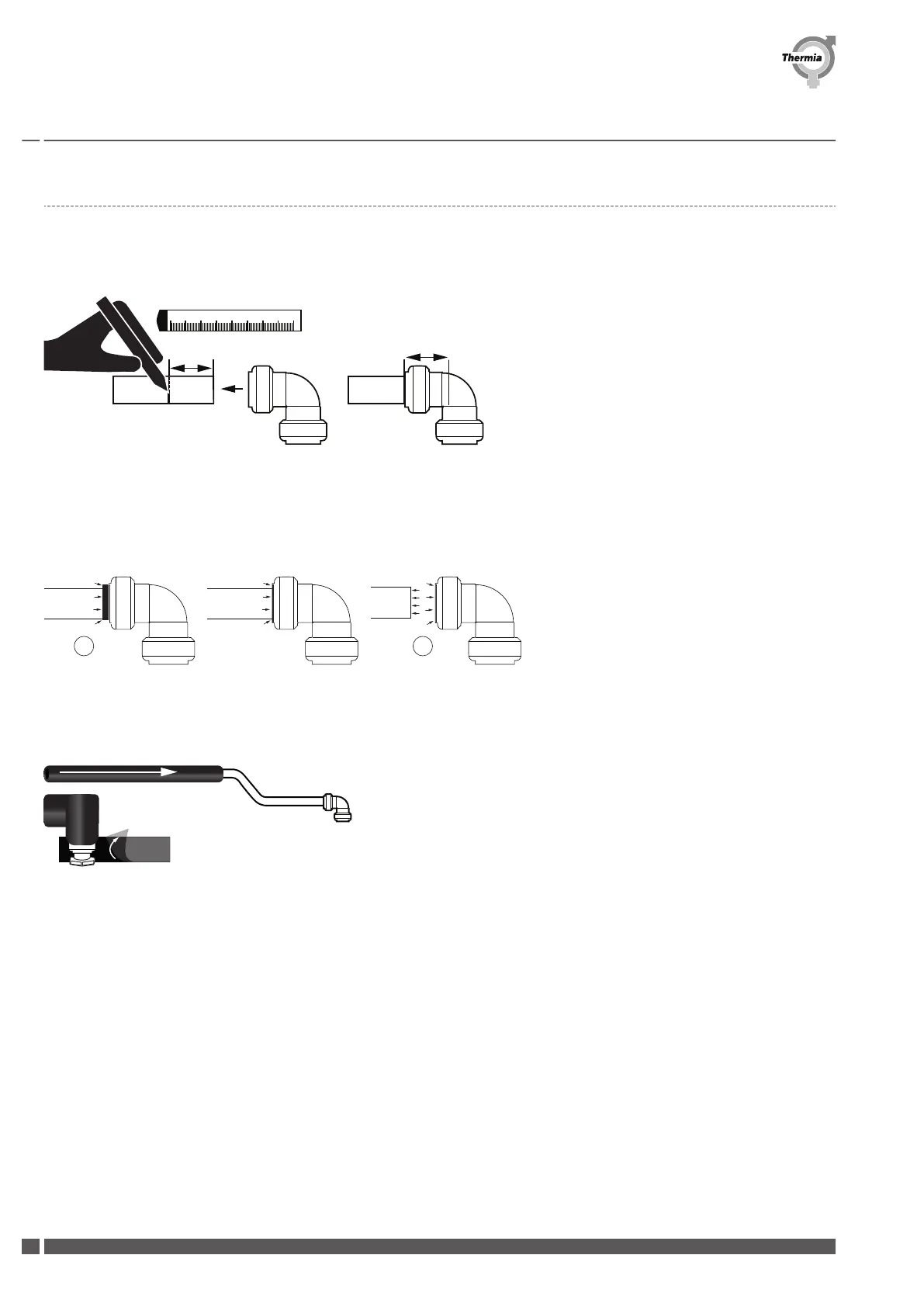

Press the coupling on to the pipe and make sure it reaches the 32 mm mark.
To disassemble: (if required)
1. Push the plastic ring inwards
2. Pull the pieces apart
Insulate the pipe and prepare with the insulation tape before installing the pipe in the indoor unit. Loosen the tape from the protective
film partly, and place it behind the clutch when mounted on the pipe. This makes it easier to complete the insulation when the pipe is in
place in the indoor unit.
