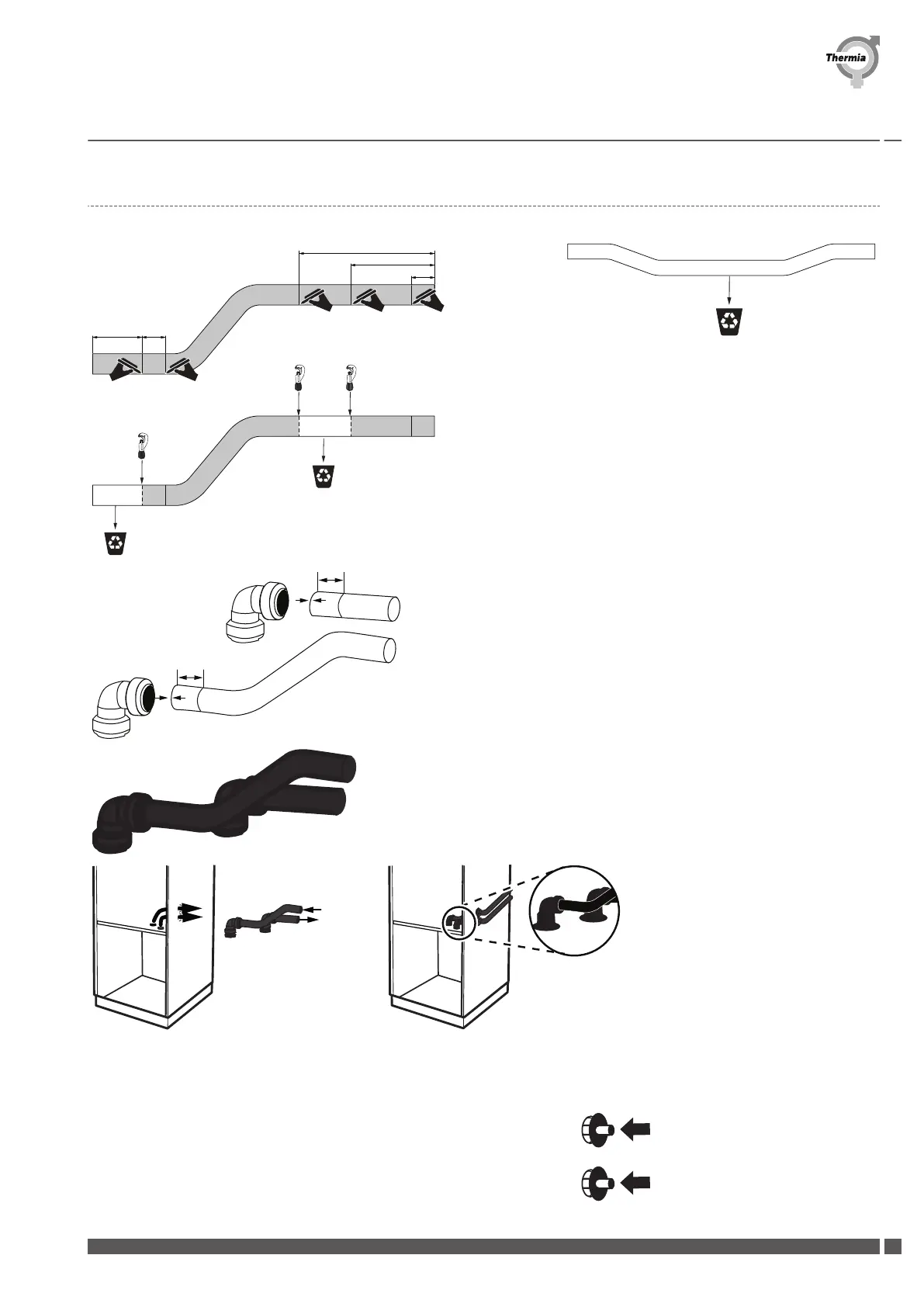

6.11 Alternative 2 (right)
For connection in to the right hand side "knockout holes".
1, Press the quick couplings (delivered with the heat pump) on to the pipes . Make sure
the coupling reach the 32 mm mark.
2, Insulate before mounting the pipes.
3, Press the pipes on to the connections in the indoor unit (see picture below). Install the insulated pipes from the inside of the heat
pump and out. Pay attention to which one of the pipes are in and out (the pipe connections are located behind the electrical cabinet in
the indoor unit, remove the metal plate). Isolate with insulation tape so that it is partially seated against the plate.
4, Fit the rubber sleeves into the knockout
holes.
Installation Guide Athena
Thermia AB AWAT01IGCG0102
37
