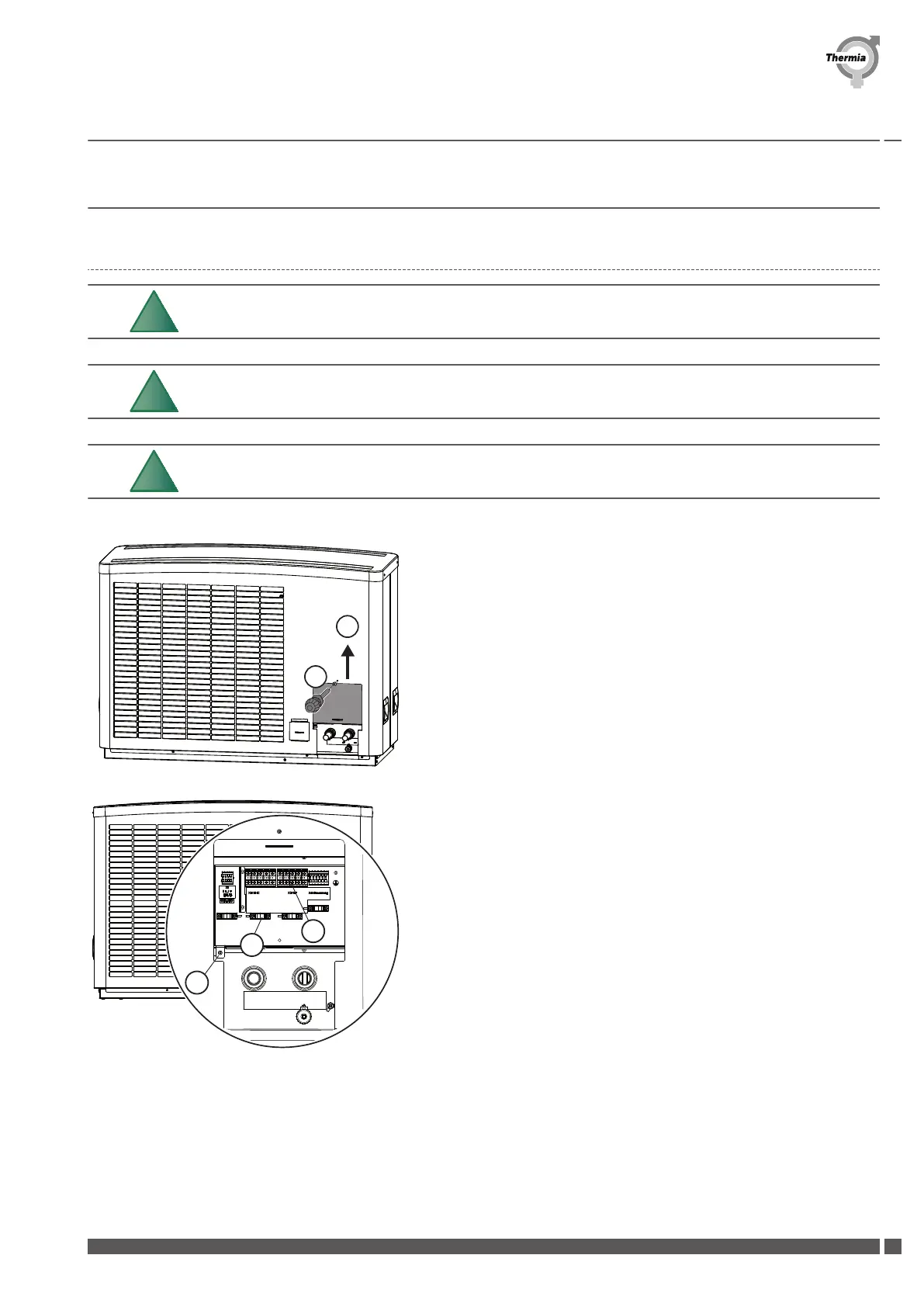

9 Electrical connections
9.1 Athena outdoor electrical connections access
Before working on the appliance, isolate it from the power supply
The leakage current of this appliance can be >3.5mA
If the heat pump is connected to ground fault switch RCDs, it should
be connected to a separate type B.
1. Release the torx screw on the top of the hatch
2. Pull the hatch upward to reveal the terminal
1. Strain relief
2. Terminal area
3. Release screw to fold out the terminal, for further access
Route cables and leads through the strain relief.
Installation Guide Athena
Thermia AB AWAT01IGCG0102
43
