4 Preparing for installation
4.1 Preparing for the outdoor unit
The outdoor and indoor unit shall be installed in compliance with the spaces described in the installation manual, to ensure accessibility
from both sides and allow repairs or maintenance operations to be carried out. If the units installed without complying with procedures
described in manual, additional expenses can be asked because special harnesses, ladders, scaffolding or any other elevation system for
repair service will NOT be considered part of the warranty and will be charged to the end customer.
Caution Incorrect positioning of the outdoor unit risks reduction of perform-
ance.
Caution In areas with heavy snowfall, piled snow could block the air intake. To
avoid this, install a frame that is higher than estimated snow fall. In ad-
dition, install a snow-proof hood to avoid snow from covering the out-
door unit.
Caution The unit must be installed according to distances declared, in order to
permit accessibility from each side, either to guarantee correct opera-
tion of maintenance or repairing products.
The outdoor unit may not be enclosed.
Before doing any ground work, make sure to know where to place the outdoor unit with regards to the surroundings, such as: wind
direction; walls; neighbours etc.

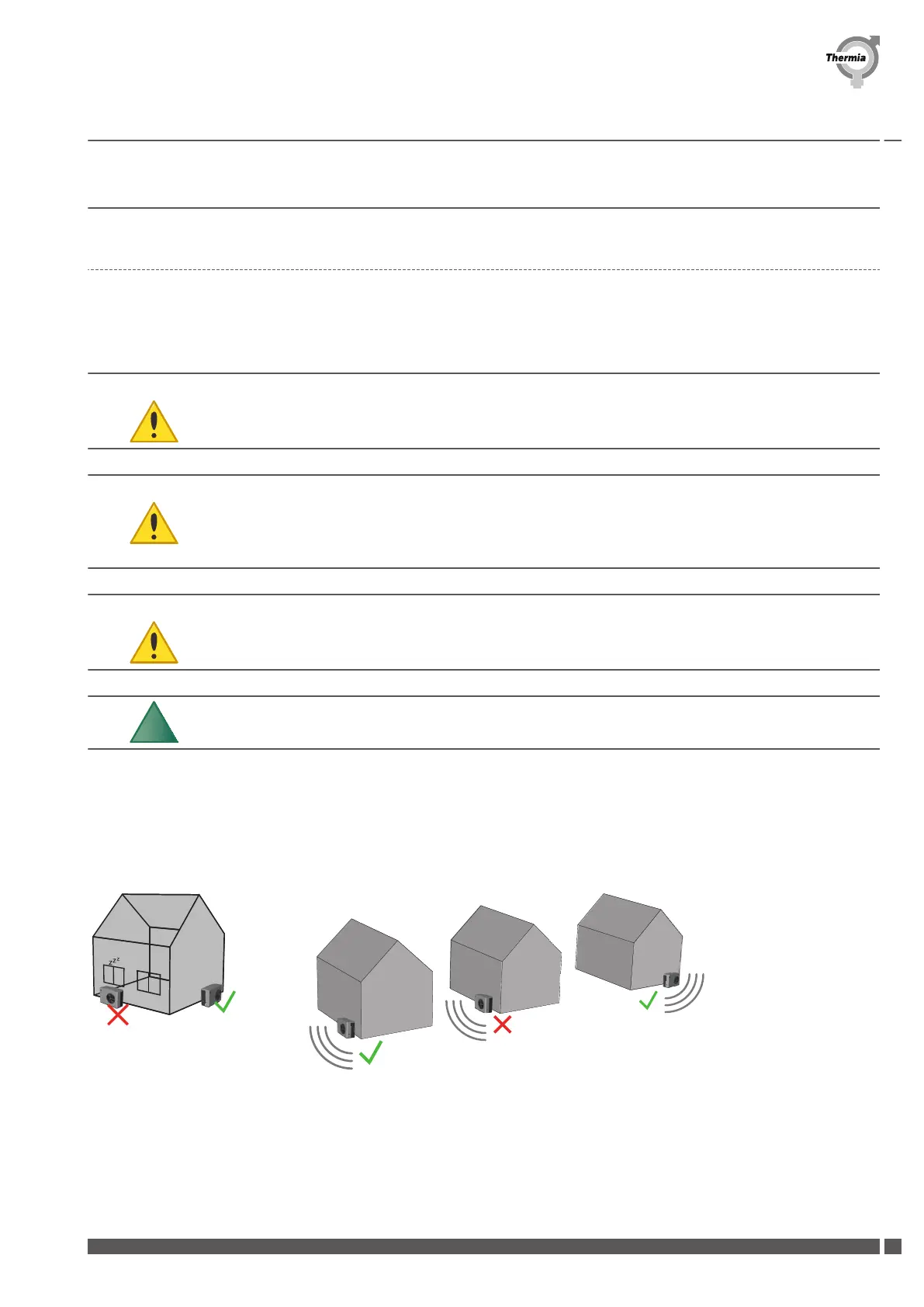

Avoid placing the outdoor unit close to bedroom or living room windows. Preferable placement is instead on solid walls facing away
from any close neighbouring houses or facilities. See images below.
