AFAM System & AFAM+
170
Setting AFAM Units in the
Configuration Menu
With the UNIT ON/OFF switch ON and the LCD
display showing the standard display (setpoint):
1. Press the F3 key to enter the Main menu.
2. Press F2 key to scroll through Main menu
until “CONFIGURATIONS” appears in LCD
display.
3. Press F4 key to access the Configurations
screen. Configurations screen appears with
cursor in the “IN-RANGE” menu line.
4. Press F3 key to scroll cursor to “AFAM
UNITS”.
5. To set a new value, press F4 key. The
Password screen appears.
6. Enter the password. Press F2 key, A key
(password is “A”), F4 key and then E
XIT key.
An Enter Arrow appears in the hourmeter line.
7. Press the F3 key to toggle the value to the
desired setting (default is “M3”): • “M3”
(Cubic Meters per Hour) • “CF” (Cubic Feet
per Minute) • “PERCENT”.
8. When the desired value appears in the display,
press and hold the F4 key until the cursor
stops flashing. The new value appears in the
menu line.
9. Press ESC key to exit the Configurations
screen.

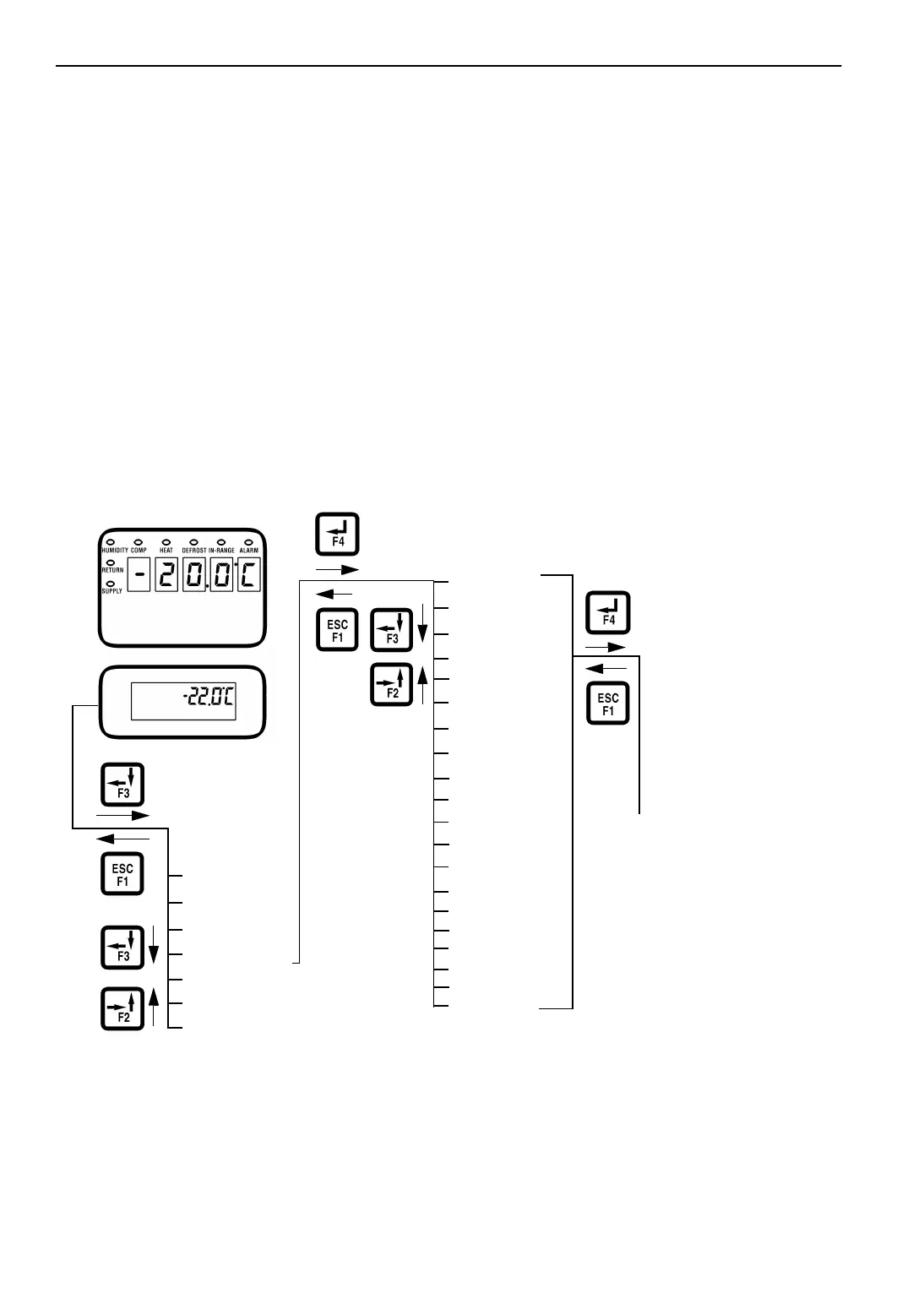

Figure 64: Configuration Menu Screen Flow Diagram
Note: All screens are not present on all
units. The screens that display on the
controller are determined by the
Controller Software setting and the
options installed on the unit.
Main Menu
DATA
ALARMS
COMMANDS
MISC FUNCTIONS
CONFIGURATION
DATALOGGER
RMM STATE
Standard Display
IN-RANGE
Configuration
Menu
CONT. ID
CONTRAST
LANGUAGE
ECONOMY MAX.
Configuration
Submenu
• Current function setting appears in
display.
• Press F4 key to change a setting.
• Press F2 key, A key (password),
F4 key and E
XIT key.
• Type a new value; or press F3 key
to toggle value to desired setting.
• Press and hold F4 key until cursor
stops flashing.
ECONOMY MIN.
UNIT TYPE
REEFER TYPE
ZERO CURR
SUPPLY LH
AFAM OPT.
AUTO CONFIG.
EVAP. TYPE
COND. TYPE
USDA TYPE
AFAM UNITS
UNIT #
UNIT ID
CHART R
DEHUM. VALVE
To Next Page
