Thermo King CSR Series User Manual

Unit Description
42
AXA0232
1
2
3
4
9
7
6
5
8
10
11
1. UNIT ON/OFF Switch 7. Main Relay Board
2. Remote Monitor, 4-Pin (Option) 8. 12 Vdc Battery
3. Communications Connector for Data Retrieval 9. Control Power Transformer
4. Circuit Breaker 10. Compressor Contactors (2)
5.
Communications Cable for AFAM Option and
AFAM+ Option
11. 25 Ampere Main Power Circuit Breaker
6. Interface Board for AFAM Option and AFAM+ Option

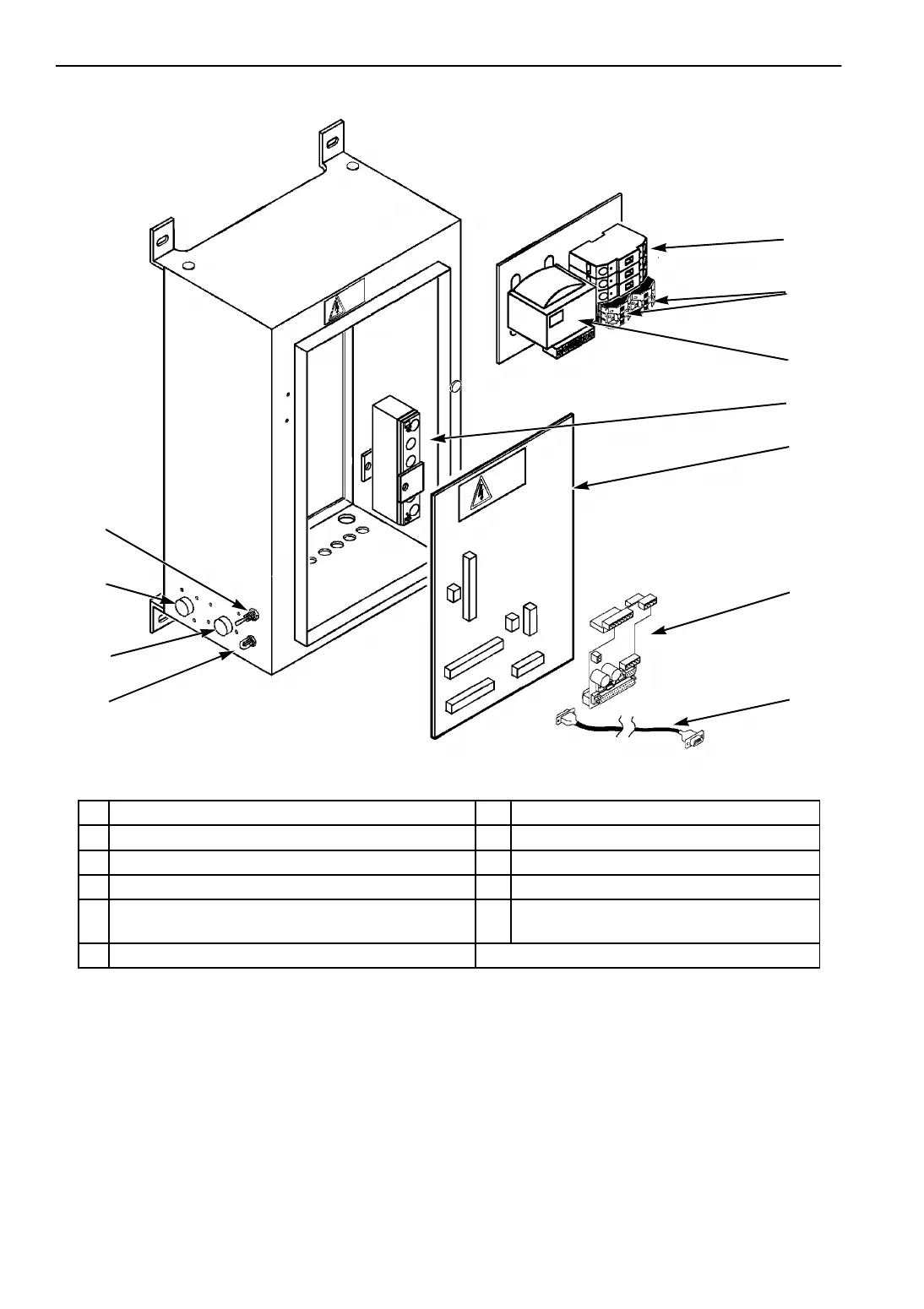

Figure 12: Unit Control Box
