Thermo Scientific DensityPRO-T - Densitypro; Densitypro-T; Voltage Output

Wiring
Standard Wiring
Voltage Output
DensityPRO
To power another device, the operator should follow the wiring requirements below
when configuring the Main CPU PCA of the DensityPRO, or the remote transmitter
of the DensityPRO-T.
– ±15 VDC nominal, 100 mA max output

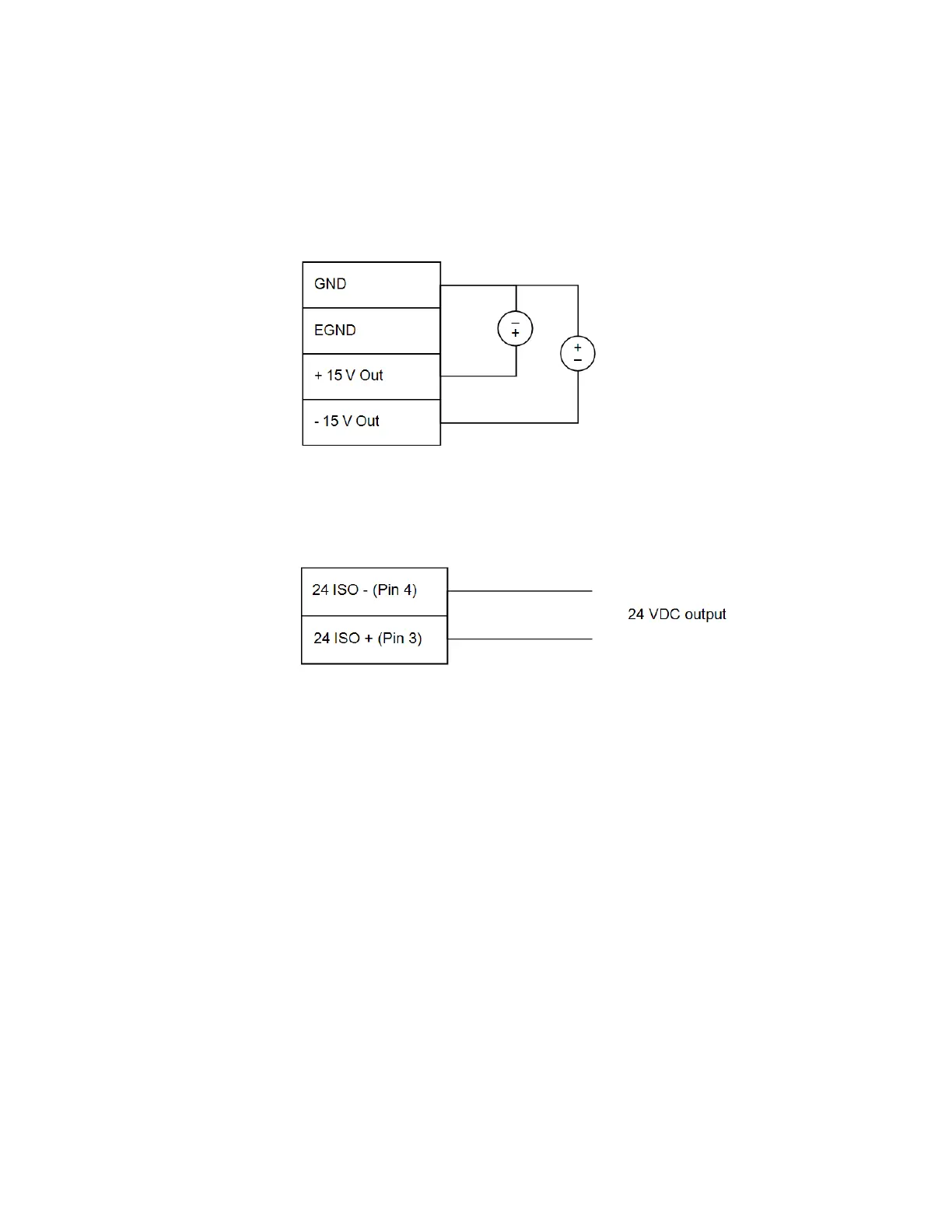

Figure4-6. ±15 VDC Output, Main CPU PCA
DensityPRO-T
The remote detector unit of the DensityPRO-T provides users with an isolated, 24
VDC nominal, 50 mA max output.
Figure 4-7. 24 VDC Isolated Output, MS2011DUR
4-8 DensityPRO Installation Manual Thermo Scientific
