EPD TECHNICAL HANDBOOK Page 90

Chart 1

100

1000

10000

10 100 1000 10000 100000

Frequency (Hz)

Amps/Metre

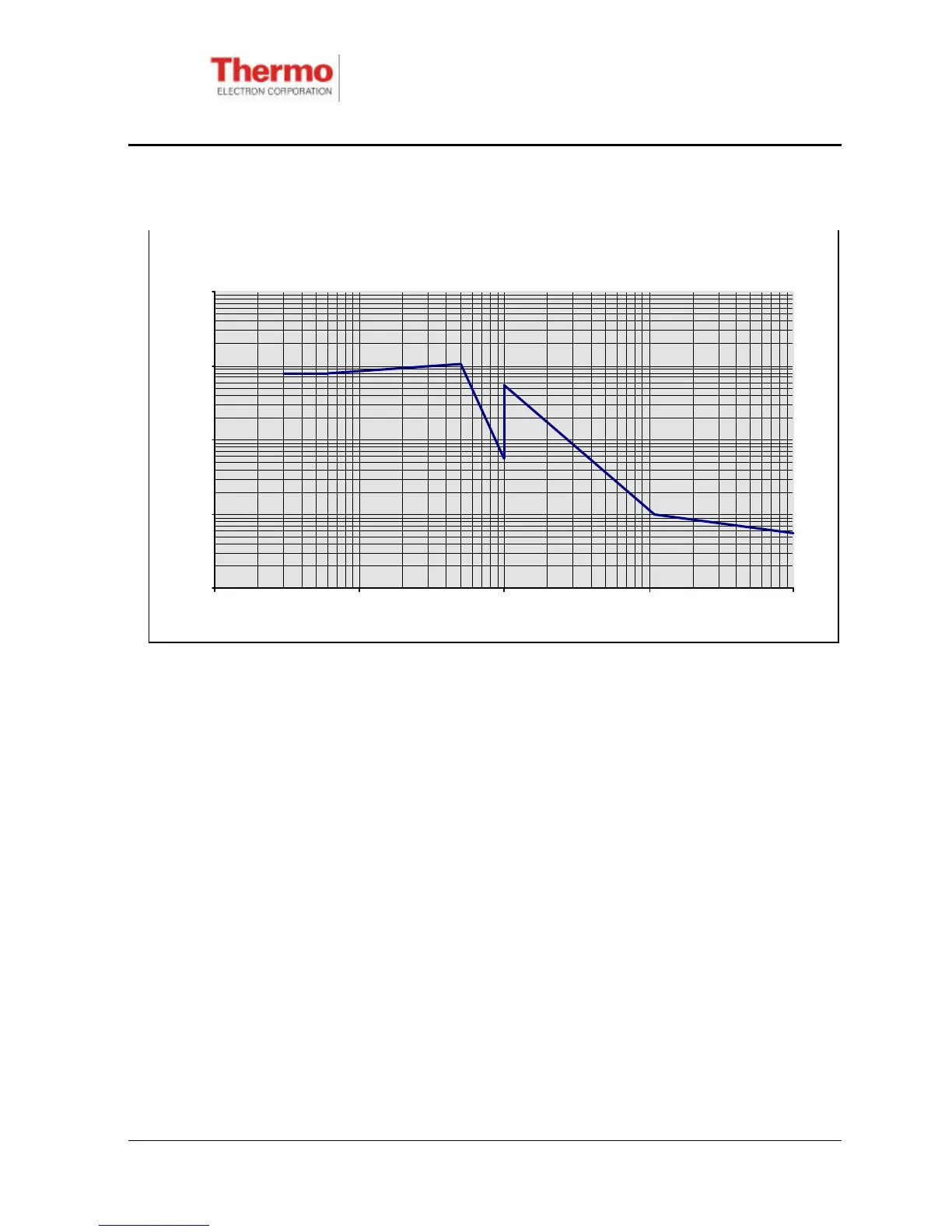

Chart 1. The tested Mk2 EPDs were not susceptible to H-field radiation below the above graph.
