Page 12 / 35
INSTRUCTION MANUAL
SAFE 2010/MaxiSAFE 2010
81-09-IM.doc
6. Installation
Transport of the SAFE 2010/MaxiSAFE 2010 can be carried out by lifting the cabinet using a forklift
either sideways under the support stand or directly under the trough. Furthermore the cabinet can
be moved manually by using hooks in the dedicated holes in the support stand.
WARNING
Whenever transportation of the cabinet is needed, precautions should be taken to
prevent it from overturning due to the high-located mass centre.
WARNING
In order to prevent damage to the cabinet it must be handled as fragile goods.
Storage of the cabinet must be in an environment of maximum 80 % relative humidity and at
temperatures between 5 °C to 50 °C.
6.1. Transport through passage narrower than 900 mm.

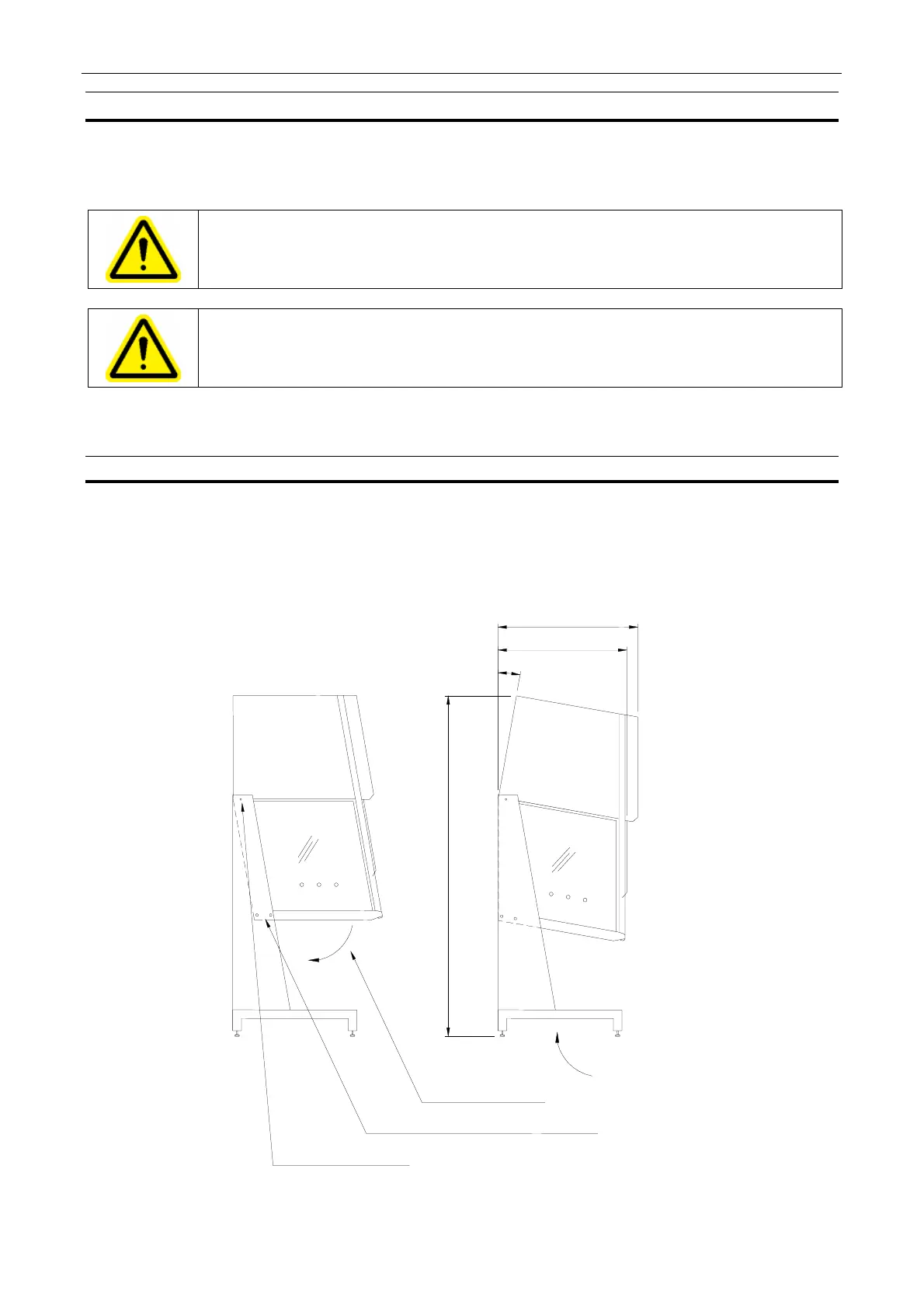

The cabinet may be tilted 10 °, see figure 3 so that the sloping front is in vertical position. If the
passage is narrower than 850 mm you may dismount the front shield with the control panel and the
bracket holding the mains plug on the back of the cabinet, see figure 4.
The cabinet can then be moved through a standard 800 mm wide door.
Space for forklift.
1. Loosen the screw.
2. Screw off and remove the two screws.
3. Tilt the cabinet 10°.
2000 (low support stand)
2110 (high support stand)
850
795
10°
Figure Fejl! Ukendt argument for parameter.. How to tilt the cabinet.
