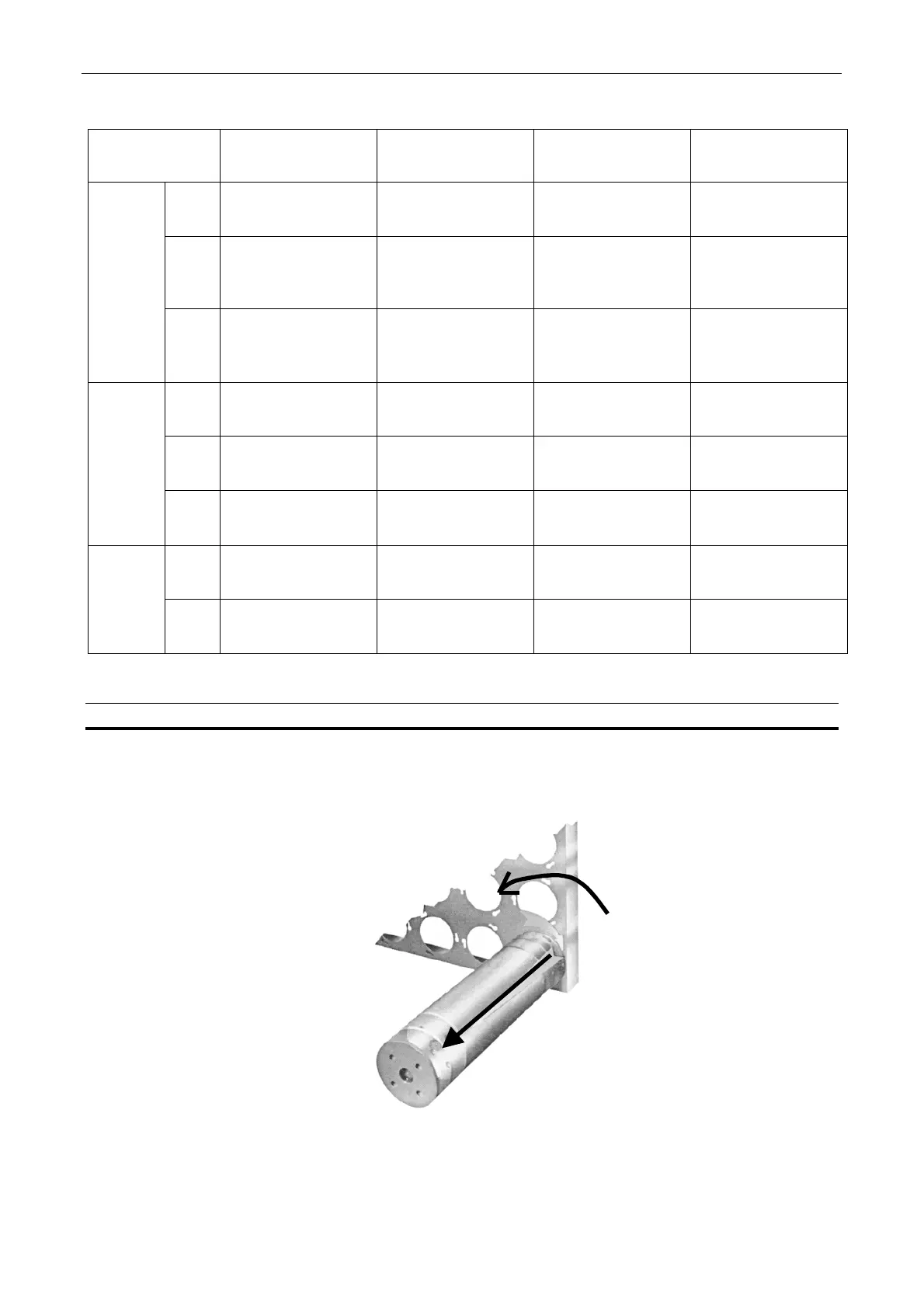

Thermo SAFE 2010 - Activated Charcoal Filters (Optional Equipment)

Page 30 / 35
INSTRUCTION MANUAL
SAFE 2010/MaxiSAFE 2010
81-09-IM.doc
Please note that the pre-filters have the same internal part number for both Luwa and Camfil.
Cabinet size
0.9 1.2 1.5 1.8
Cofim
All
82700003
NWHFAB8HLPDLV
610x915x68
82700004
NWHFAB9HLPDLV
610x1220x68
82700005
NWHFAB10HLPDLV
610x1525x68
82700006
NWHFAB11HLPDLV
610x1830x68
Camfil
EN
12469
82200453
MD 50 LA 33 GV
915x610x66-1 PU
82200454
MD 50 LA 33 GV
1220x610x69-01PU
82200455
MD 50 LA 33 GV
1525x610x66-1 PU
82200456
MD 50 LA 33 GV
1830x610x66-1 PU
Main
filter
Camfil
DIN
12950
82200003
MDLA-GW
915x610x66-1 PU
82200004
MDLA-GW
1220x610x69-01PU
82200005
MDLA-GW
1525x610x66-1 PU
82200006
MDLA-GW
1830x610x66-1 PU
Cofim
All
82700519
NWHFAB43HLPD
457x457x68
82700519
NWHFAB43HLPD
457x457x68
82700520
NWHFAB41HLPD
457x610x68
82700521
NWHFAB47HLPD
457x762x68
Camfil
EN
12469
82200419
MD50A33-2GW
457x457x69-01PU
82200419
MD50A33-2GW
457x457x69-01PU
82200420
MD50A33-2GW
457x610x69-01PU
82200421
MD50A33-2GW
457x762x69-01PU
Exhaust
filter
Camfil
DIN
12950
82200519
MDA-2GW
457x457x69-01PU
82200519
MDA-2GW
457x457x69-01PU
82200520
MDA-2GW
457x610x69-01PU
82200521
MDA-2GW
457x762x69-01PU
Luwa
9x82200029
PB ‘Glas’
411.50.0070
12x82200029
PB ‘Glas’
411.50.0070
15x82200029
PB ‘Glas’
411.50.0070
18x82200029
PB ‘Glas’
411.50.0070 Pre- filter
Camfil
9x82200029
3326.01.02
013223
12x82200029
3326.01.02
013223
15x82200029
3326.01.02
013223
18x82200029
3326.01.02
013223
On the cover plate under the front cover, the actual filter type and serial no. Is registrated.
11.3. Activated charcoal filters (Optional equipment)
Equipment required
12 Filter cartridges.
1
2
Figure 9.
