Chapter 3 | Replacing parts
3.14.2. Installing foam probe holder
1. Snap or slide the foam probe holder into place on the left side of the top rim of
the unit.
2. Adjust location as needed to ensure alignment with the foam probe tube
(Figures 3.91–3.93).
Note: The foam probe tubing must be clipped into this holder to ensure the probe stays
vertical and does not interfere with the drive system.

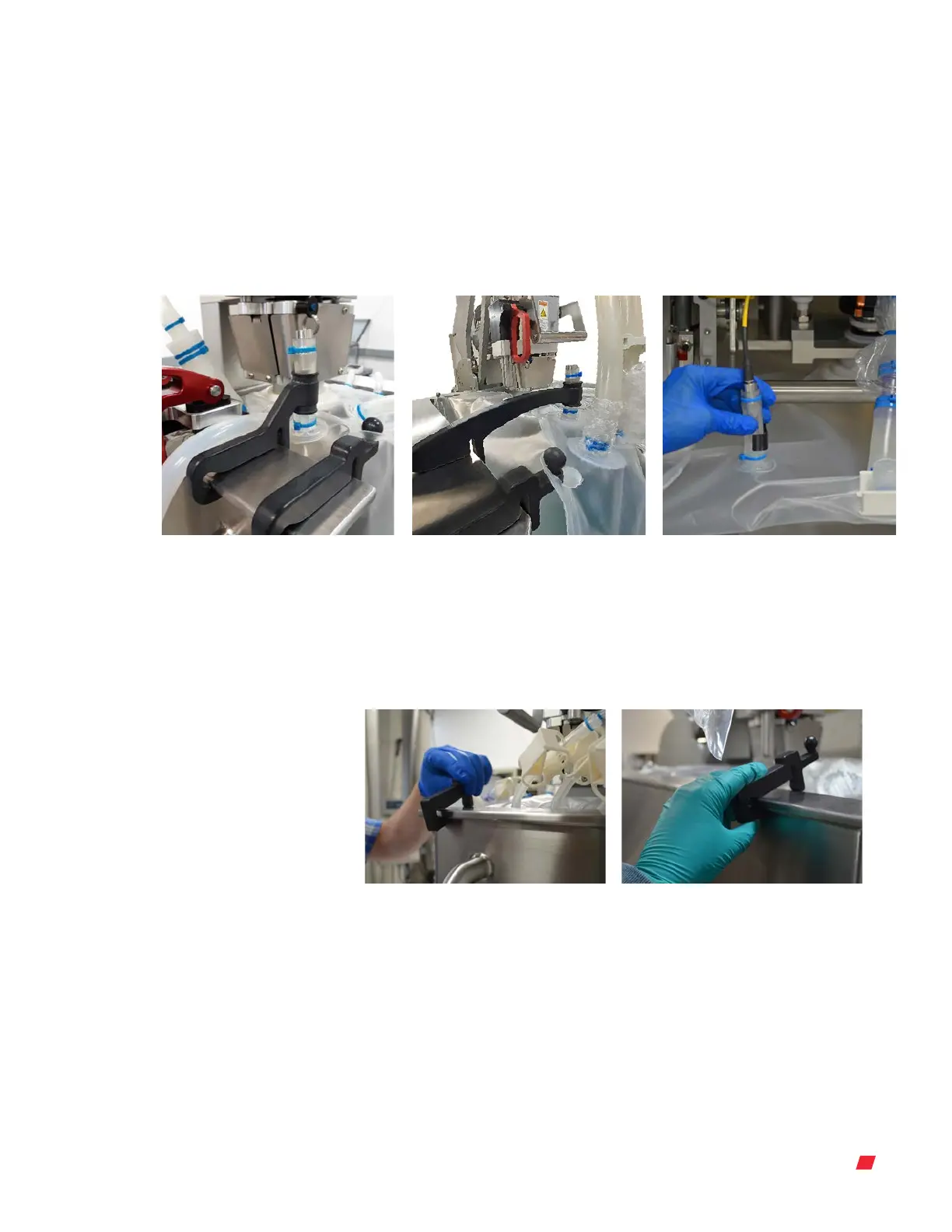

Figure 3.91. 50 L foam probe holder. Figure 3.92. 500 L foam probe holder. Figure 3.93. 3,000 and 5,000 L foam
probe holder.
3.14.3. Installing BPC tab holders
1. Slide each holder into place on the left and right side of the top rim
(Figures 3.94 and 3.95).
Figure 3.94. Sliding 50 L BPC tab
holder into place.
Figure 3.95. Sliding 500 L BPC tab
holder into place.
2. Ensure you slide the holders far enough onto the rim that they will not fall o the front
(Figure 3.96).
