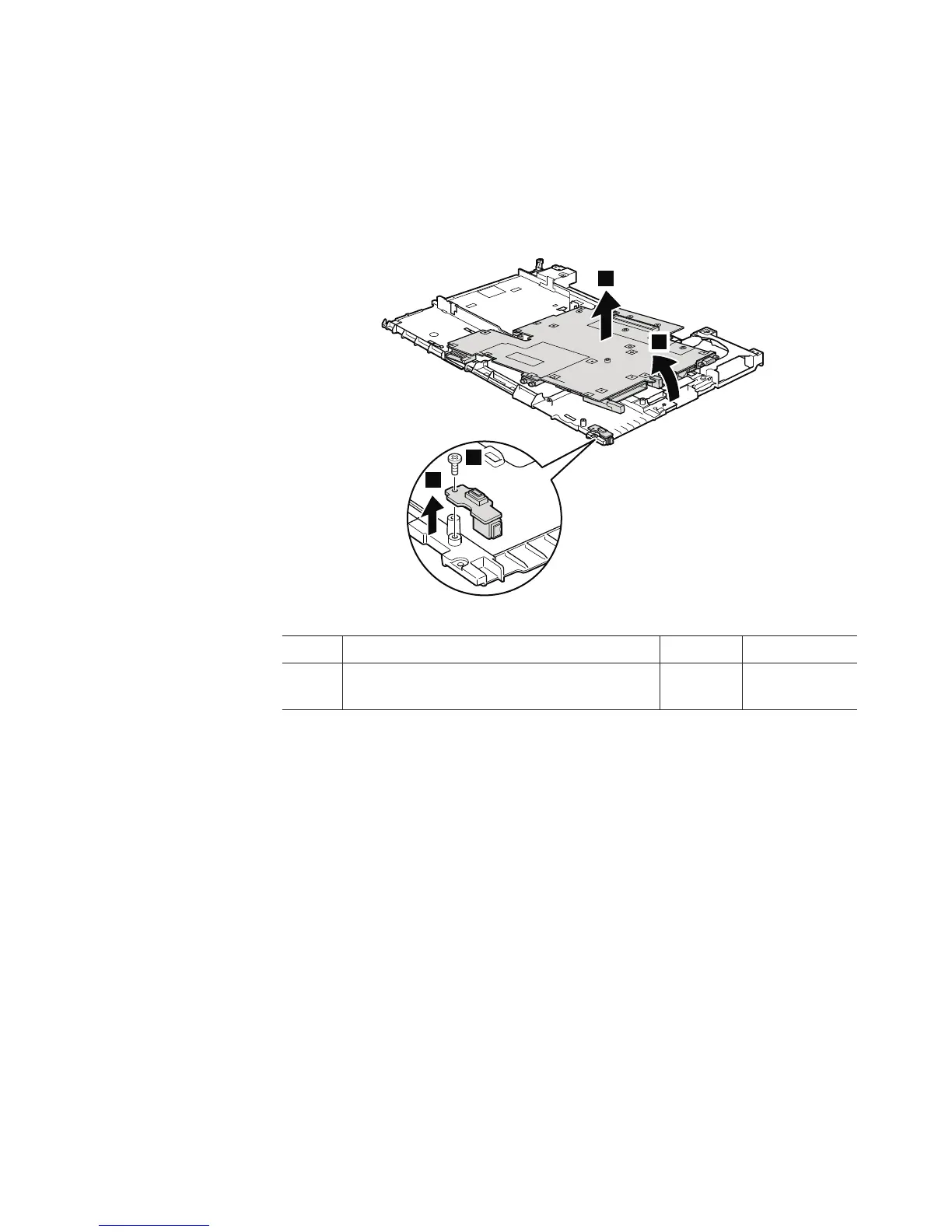

Table 23. Removal steps of structure frame and IEEE 1394 sub card (continued)
In step 10, remove the system board and the PC Card/ExpressCard slots
assembly from the structure frame together.
In step 11 and 12, remove IEEE 1394 sub card.
11
12
10
9
Step Screw (quantity) Color Torque
11 M2 × 5 mm, flat-head, nylon-coated (1) Black 0.167 Nm
(1.7 kgfcm)
Removing and replacing a FRU 123
