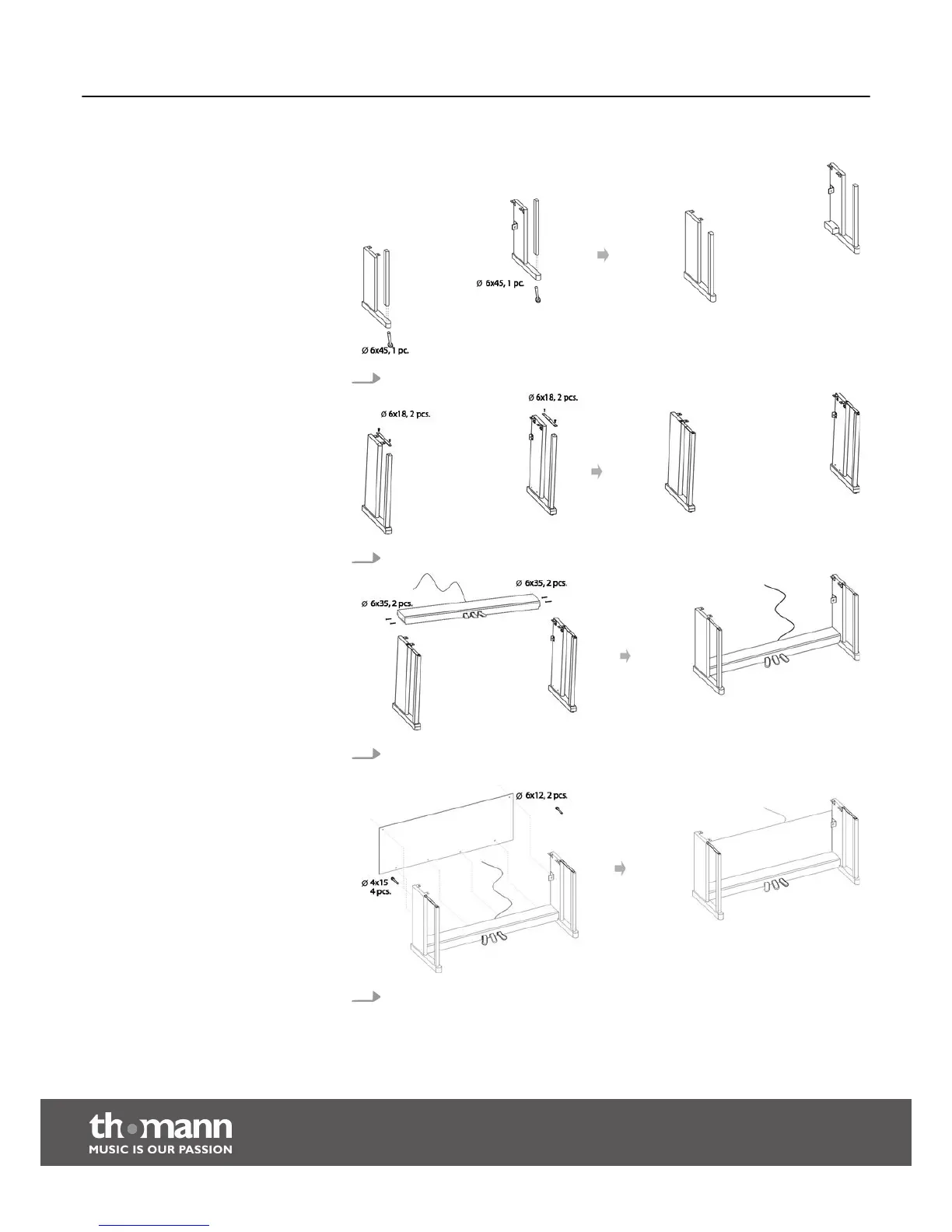

Proceed according to the figures.
1.
Use the 6 ´ 45 screws to attach the front legs to both sides panels.
2.
Use the 6 ´ 18 screws to attach the metal strips to both side panels.
3. Put the pedal box between the two side panels and screw the parts together
using the 4 screws (6 ´ 35, 2 pcs. per side).
4.
Use two screws 6 ´ 12 and four screws 4 ´ 15 to attach the rear panel to the
base frame that you have assembled in step 3.
Mechanical assembly
Setup guide
digital piano
10
