Since the interference affects both cores equally, by subtracting the phase-shifted signals, the

interfering signal is completely neutralized. The result is a pure signal without any noise inter‐

ference.

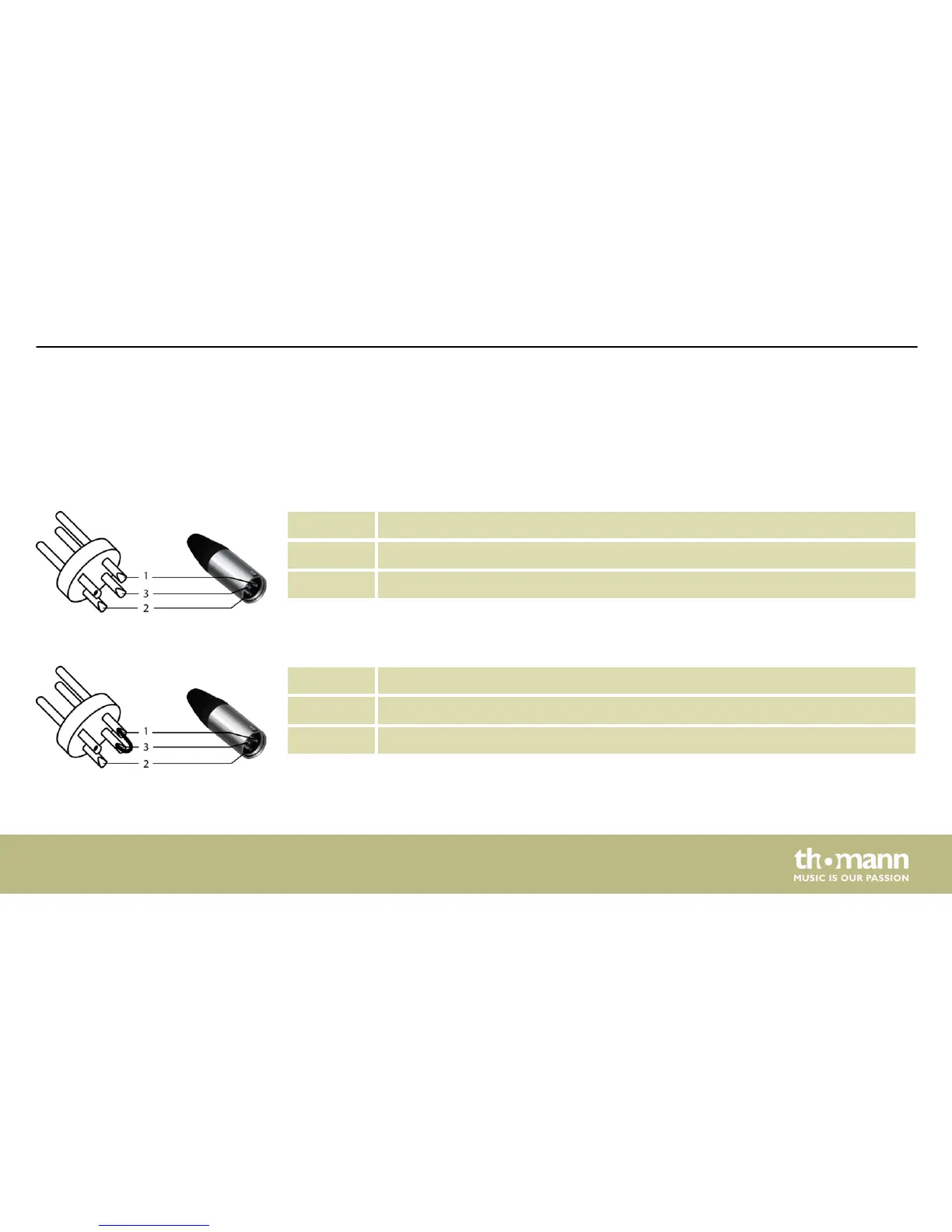

1 Ground, shielding

2 Signal (in phase, +)

3 Signal (out of phase, –)

1 Ground, shielding

2 Signal

3 Bridged to pin 1

XLR plug (balanced)

XLR plug (unbalanced)

Plug and connection assignment

DSP 26
