7.1 SpeedTouch™ Routed PPPOA Configuration
Preparatory steps for
using Routed PPPoA
The following information must be available to successfully configure a Routed
PPPoA interface on the SpeedTouch™:
 The VPI/VCI value of the Virtual Channel on which the PPPoA connection
service is enabled.
 The encapsulation method (normally VC-MUX).
 The Routed PPPoA interface’s IP configuration, either via single IP address, or
via IPCP subnet masking. The latter configuration requires all local nodes to be
configured for DHCP and the SpeedTouch™ DHCP server being active.
 The user name and password for the ISP account.

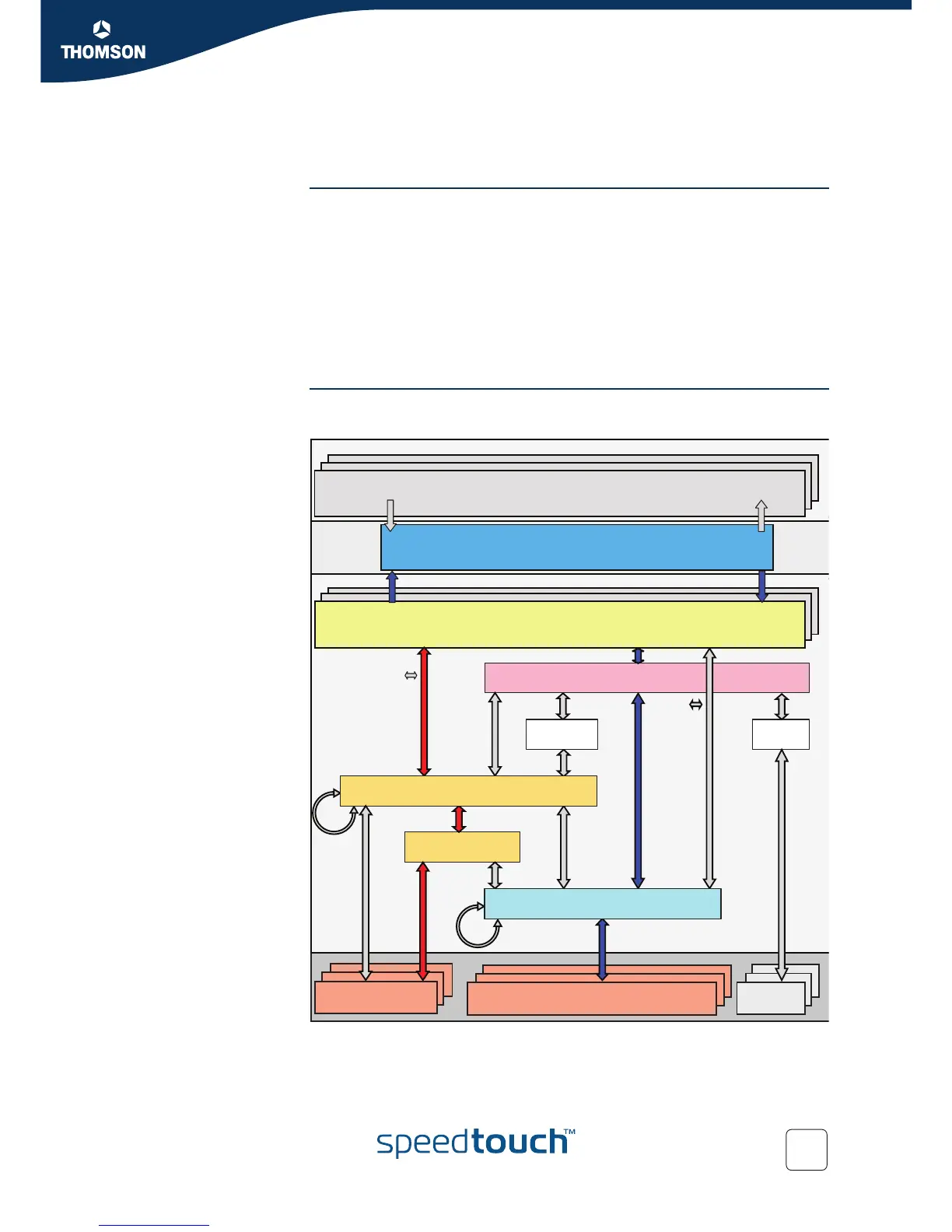

Interface road map The figure below shows the interfaces which have to be configured for Routed
PPPoA.
PPP
PPPoA
IPoA
iARP
PPPoEIPoE /
IPoEoA
ARP
PPPoE RELAY
Multilink
PPP
EthoA
IP Interface(s)
IP Forwarding
Physical Ports
(Eth, USB, WLAN, BT...)
ATM VP/VC
(Over DSL / ATM-F)
ISDN
LoopBack
Ethernet Interface(s)
Bridge
VLAN
ATM Bundle
ATM Interface(s)
