3.1 SpeedTouch™ Routed Ethernet Configuration
Preparatory steps for
using Routed Ethernet
To be able to configure the SpeedTouch™ successfully for the Routed Ethernet
Packet Service, the following information must be available:
 The VPI/VCI value of the Virtual Channel on which the Ethoa connection
service is enabled.
 The encapsulation method (in most - if not all - cases LLC/SNAP).
 The IP configuration of the Routed Ethernet interface.

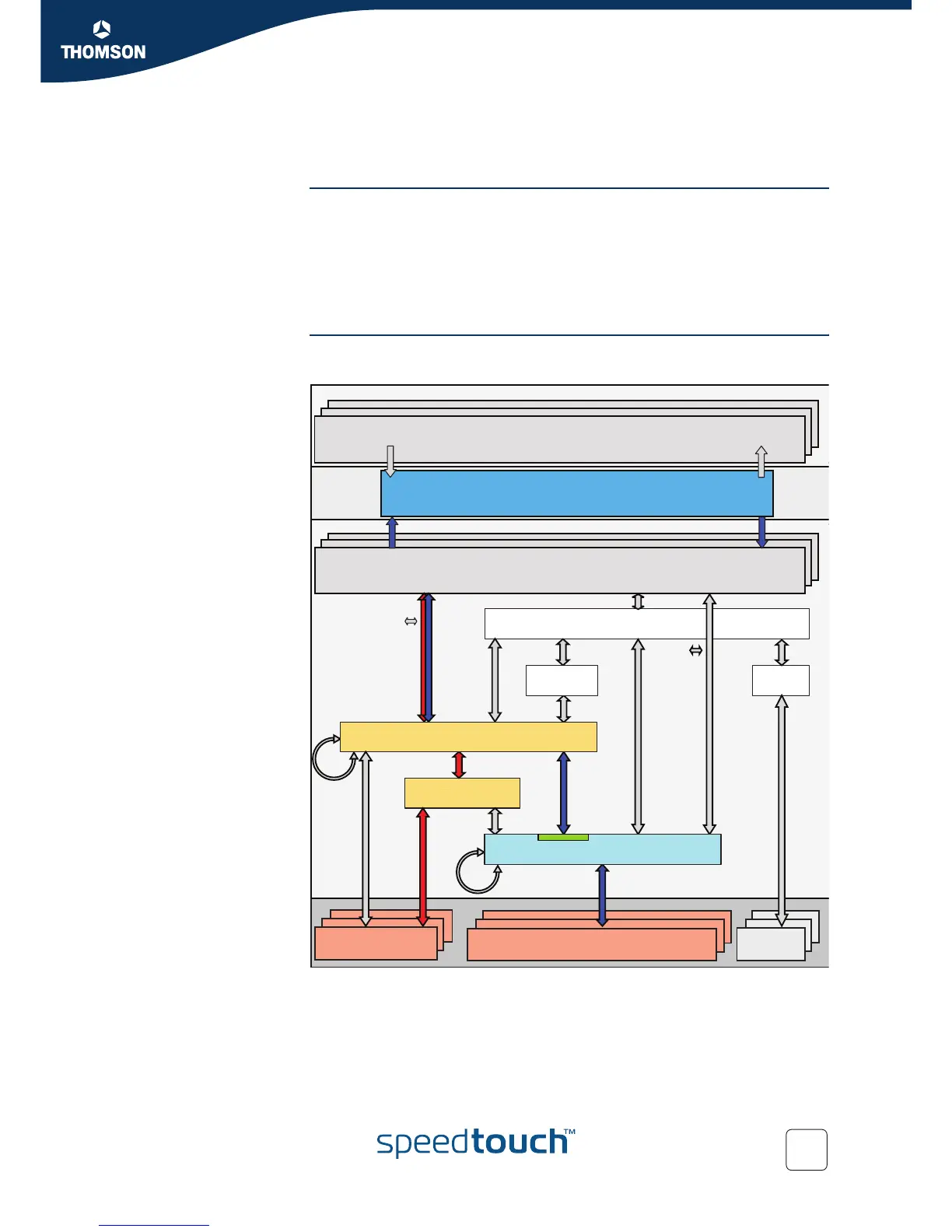

Interface road map The figure below shows the interfaces which have to be configured for Routed
Ethernet.
PPP
PPPoA
IPoA
iARP
PPPoEIPoE /
IPoEoA
ARP
PPPoE RELAY
Multilink
PPP
EthoA
IP Interface(s)
IP Forwarding
Physical Ports
(Eth, USB, WLAN, BT...)
ATM VP/VC
(Over DSL / ATM-F)
ISDN
LoopBack
Ethernet Interface(s)
Bridge
VLAN
ATM Bundle
ATM Interface(s)
