THOMSON SpeedTouch - 8 PPTP-to-PPPoA relaying

Chapter 8
PPTP-to-PPPoA relaying
E-DOC-CTC-20051017-0167 v1.0
69
8 PPTP-to-PPPoA relaying
Introduction A client establishes a PPP session with the ISP’s PPP server (BRAS). However, the
client is a PPP/PPTP client, establishing a local PPTP tunnel and encapsulating IP
packets into PPP frames. Instead of the Bridge, a PPP relay is used, forwarding the
PPP frames undisturbed from the local PPTP tunnel towards a virtual channel.
Conceptually, one might say that the local PPTP tunnel extends the ATM virtual
channel up to the client.
Features PPTP-to-PPPoA relaying has the following features:
 A Dial-In access method through a PPTP tunnel.
 Platform and Operating System independent towards the SpeedTouch™

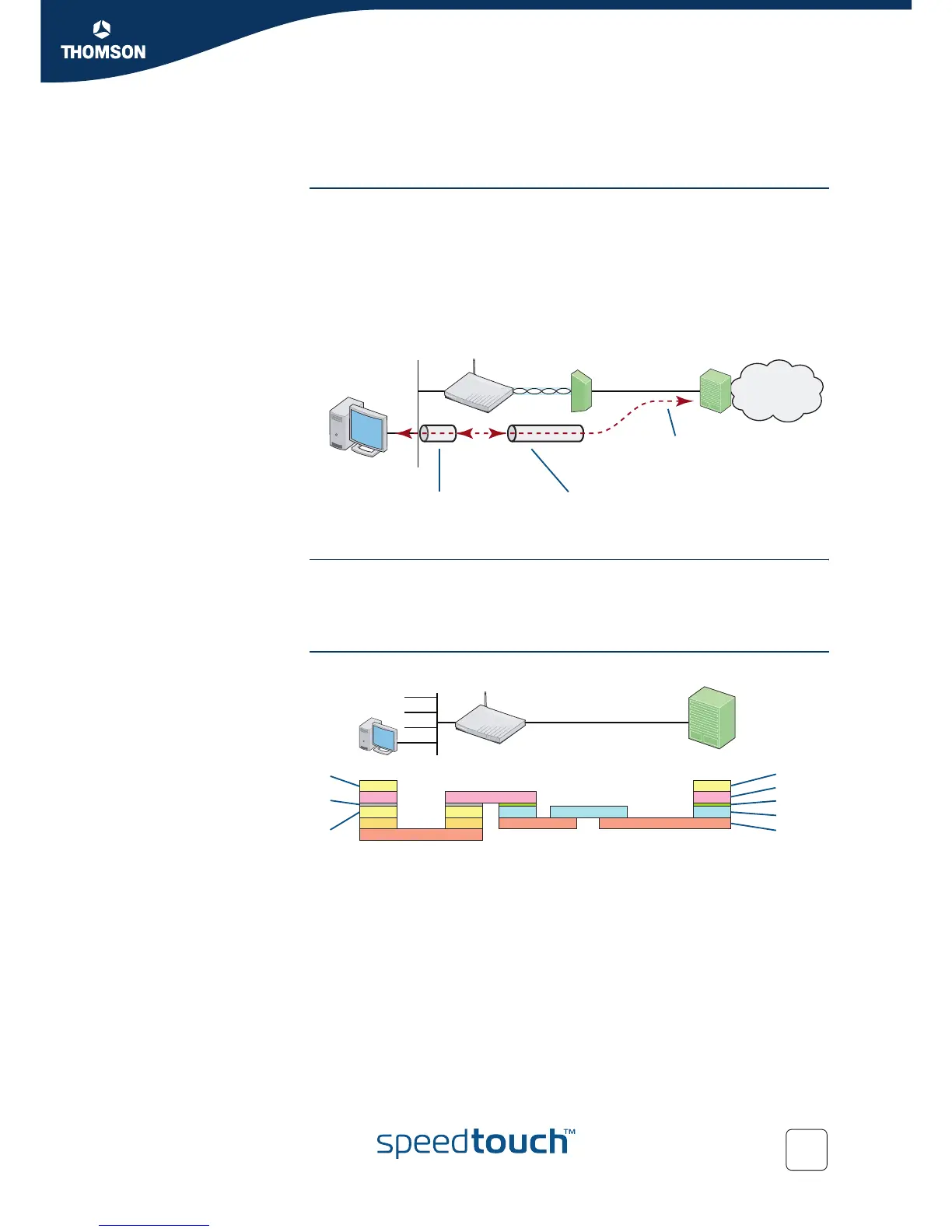

Protocol stack The figure below shows the PPPoA-to-PPTP protocol stack.
DSLAM
SpeedTouch
operating as
PPPoA-to-PPTP relay
PPP/PPTP client
on PC terminates
the PPP connection
Virtual Channel with:
ATM Encapsulation Type: VC-MUX
Connection Service Name: PPPoA
Connection Service Type: PPPoA
BRAS
Internet
Local PPTP Tunnel,
initiated by the PC, and
terminated in the SpeedTouch
ip
mac
eth
adsl
CPE
DSLAM
PC
Service
Gateway
PPPoA
AAL5/AT
M
PHY
ppp
IP
PPP
Public IP
ip
PPTP/L2P
Local IP
